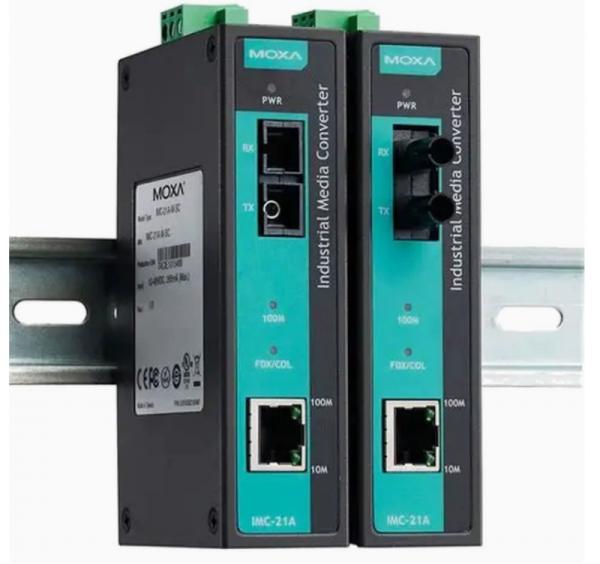

Single Mode SC Media Converter MOXA IMC-21A-S-SC-T Industrial 10/100BaseT (X) to 100Base FX Media Converter
Single Mode SC Media Converter MOXA IMC-21A-S-SC-T Industrial 10/100BaseT (X) to 100Base FX Media Converter
Single Mode SC Media Converter MOXA IMC-21A-S-SC-T Industrial 10/100BaseT (X) to 100Base FX Media Converter
Single Mode SC Media Converter MOXA IMC-21A-S-SC-T Industrial 10/100BaseT (X) to 100Base FX Media Converter
Specifications
Packaging Details :
Pieces
Environmentalprotection :
IP54 or higher
Certification :
CO
Standardscompliance :
IEEE, IEC, ANSI
Responsetime :
Typically less than 10 ms
Componenttypes :
Relays, Circuit Breakers, Sensors, Controllers
Productname :
Protection and Control Components
Powersupply :
24 V DC or 110/220 V AC
Communicationprotocols :
IEC 61850, Modbus, DNP3
Operatingvoltage :
Up to 36 kV
Mountingtype :
Panel-mounted or DIN rail
Diagnosticsfeatures :
Self-test, Event logging, Fault recording
Inputsignaltypes :
Current, Voltage, Frequency, Temperature
Outputtypes :
Trip signals, Alarm signals, Status indications
Brand Name :
MOXA
Model Number :
IMC-21A-S-SC-T
Place of Origin :
Taiwan
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10pcs 1week
Delivery Time :
5-7work day
Application :
Power generation, transmission, and distribution
Operatingtemperaturerange :
-20°C to +70°C
Function :
Protection and control of electrical power systems
Description
Parameter Value
Model Number IMC-21A-S-SC-T
Product Name "Industrial 10/100BaseT(X) to 100BaseFX Media Converter"
Product Series IMC-21A Series
Product Type Ethernet-to-Fiber Media Converter
Manufacturer MOXA
General Information
Hardware Function Level Standard
Fan/Fanless Fanless design
Warranty Period 5 years
MTBF 353,000 hours (MIL-HDBK-217F standard)
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector) 1 port
Features Auto-negotiation, auto MDI/MDI-X, full/half-duplex
Magnetic Isolation Protection 1.5 kV (built-in)
Standards Supported IEEE 802.3 (10BaseT), IEEE 802.3u (100BaseT(X))
Optical Fiber (100BaseFX Single-mode)
Fiber Type Single-mode (G.652)
Connector Type SC (Subscriber Connector)
Wavelength 1310 nm
TX Power Range 0 to -5 dBm
RX Sensitivity -3 to -34 dBm
Link Budget 29 dB
Dispersion Penalty 3 dB
Typical Transmission Distance 40 km
Switch Configuration
DIP Switch 1 (Fiber Port Mode) Default: OFF (Full Duplex) - ON: Half Duplex - OFF: Full Duplex
DIP Switch 2 (Link Fault Pass-Through) Default: OFF (Disabled) - ON: Enable LFP - OFF: Disable LFP
DIP Switch 3 (TP Port Mode) Default: OFF (Full Duplex) - ON: Half Duplex - OFF: Full Duplex
DIP Switch 4 (TP Port Speed) Default: OFF (100 Mbps) - ON: 10 Mbps - OFF: 100 Mbps
LED Indicators
P (Power) Amber: Power is on
100M (TP Port) Green: 100 Mbps connection
10M (TP Port) Green: 10 Mbps connection
FX (Fiber Port) Green: Fiber link is active
FDX/COL (Fiber Port) Green: Full duplex mode; Blinking: Collision (half duplex)
Power Parameters
Input Voltage 12 to 48 VDC (wide range)
Input Current
@12 VDC 258 mA (Max.)
@24 VDC 129 mA (Max.)
@48 VDC 71 mA (Max.)
Power Consumption 3.1 W (Max. @12 VDC)
Power Connector Removable 3-contact terminal block
Protection Features Overload current protection, reverse polarity protection
Physical Characteristics
Housing Metal (IP30 rated)
Dimensions (W×H×D) 30 mm × 125 mm × 79 mm (1.19×4.92×3.11 in)
Weight 170 g (0.37 lb)
Mounting Options DIN-rail mounting (35 mm standard)
Environmental Limits
Operating Temperature -40°C to 75°C (-40°F to 167°F) [Wide temp. version]
Storage Temperature -40°C to 75°C (-40°F to 167°F)
Relative Humidity 5% to 95% (non-condensing)
Standards and Certifications
Safety UL 60950-1, EN 60950-1
EMC EN 55032/35, CISPR 32, FCC Part 15B Class A
EMS IEC 61000-4-2 (ESD: Contact 6 kV, Air 8 kV) IEC 61000-4-3 (RS: 80 MHz to 1 GHz: 3 V/m) IEC 61000-4-4 (EFT: Power 1 kV, Signal 0.5 kV) IEC 61000-4-5 (Surge: Power 1 kV, Signal 1 kV) IEC 61000-4-6 (CS: 150 kHz to 80 MHz: 3 V/m)
Vibration IEC 60068-2-6
Shock IEC 60068-2-27
Freefall IEC 60068-2-31
