Pepperl+Fuchs UC4000-30GM-IUR2-V15 Ultrasonic Sensor Detection Range, Dual Analog Output, and IP65 Protection
Pepperl+Fuchs UC4000-30GM-IUR2-V15 Ultrasonic Sensor Detection Range, Dual Analog Output, and IP65 Protection
Specifications
Model Number :
UC4000-30GM-IUR2-V15
Installationtype :
Panel Mount / DIN Rail Mount
Safetystandards :
IEC 61508, ISO 13849
MOQ :
1 pcs
Applicationindustry :
Manufacturing, Process Control, Robotics
Safetyfeatures :
Emergency Stop, Overload Protection
Brand Name :
PEPPERL+FUCHS
Supply Ability :
1000 pcs
Payment Terms :
T/T
Delivery Time :
5-7 days
Mounting Type :
DIN Rail / Panel Mount
Price :
Negotiation
Actual Value :
Negotiabled price
Waterproof :
IP65,IP65/66/67/68
Description

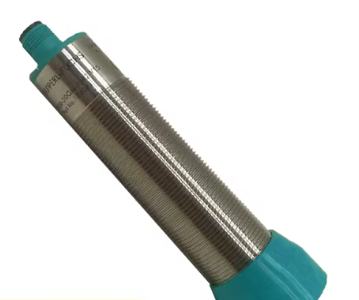

Pepperl+Fuchs UC4000-30GM-IUR2-V15 Ultrasonic Sensor

Product Gallery

1. Product Overview

Model: UC4000-30GM-IUR2-V15

Brand: Pepperl+Fuchs (P+F)

Type: High-performance Industrial Ultrasonic Sensor
This is a professional M30 cylindrical ultrasonic sensor designed for non-contact distance measurement, object detection and level monitoring. It features a wide detection range from 200 mm to 4000 mm, dual analog outputs (4-20 mA + 0-10 V) and IP65 ingress protectionPepperl+Fuchs. Built-in temperature compensation and RS232 parameter interface ensure stable and flexible operation in complex industrial environments. Widely applied in automation lines, logistics, packaging machinery and material level control systems.

2. Key Features

✅ Wide Detection Range

Sensing distance: 200 mm ~ 4000 mm; Adjustable range: 240 mm ~ 4000 mm; Blind zone: 0 ~ 200 mm, meets long-distance detection demandsPepperl+Fuchs.
✅ Dual Analog Outputs

Equipped with 4-20 mA current output and 0-10 V voltage output simultaneously, compatible with most PLC, controllers and display devices for easy system integration.
✅ IP65 Protection Rating

Dust-tight and resistant to water jets, suitable for harsh workshops with dust, moisture and splashing water.
✅ Temperature Compensation Function

Automatically compensates ambient temperature changes to guarantee high measurement accuracy all year roundPepperl+Fuchs.
✅ Adjustable Sensitivity & Sound Power

Support parameter setting via ULTRA 3000 software and RS232 interface; sensitivity and sound power can be adjusted according to different targetsPepperl+Fuchs.
✅ Fast Response & High Stability

Minimum response delay: 145 ms, ideal for high-speed continuous detection. Stainless steel housing provides excellent vibration and corrosion resistance.
✅ M12 5-pin Connector (V15)

Standard M12 connector for quick wiring and replacement, convenient for on-site installation and maintenance.
✅ Bi-directional Synchronization

Synchronization function avoids mutual interference when multiple sensors work closely togetherPepperl+Fuchs.

3. Technical Specifications

Item Parameter
Model UC4000-30GM-IUR2-V15
Detection Range 200 mm ~ 4000 mm
Adjustable Range 240 mm ~ 4000 mm
Blind Zone 0 ~ 200 mm
Output Signal 4 ~ 20 mA (Current) + 0 ~ 10 V (Voltage)
Protection Class IP65
Operating Voltage 10 ~ 30 V DC
Power Consumption ≤ 900 mW
Response Delay 145 ms (min) / 440 ms (default)
Operating Temperature -25 °C ~ +70 °C
Housing Material Stainless steel + PBT plastic
Thread Size M30 × 1.5
Connection M12 × 1, 5-pin connector (V15)
Ultrasonic Frequency Approx. 85 kHz
Resolution ≥ 0.35 mm
Weight Approx. 210 g

4. Main Applications

  • Industrial automated production lines: object counting, positioning and height detection
  • Logistics & conveyor systems: material presence check, distance and stack height monitoring
  • Warehouse & storage: goods level detection and space occupancy monitoring
  • Packaging & printing machinery: product position control and material shortage alarm
  • Water tank, silo and hopper: continuous liquid / solid material level measurement
  • Robotic equipment: obstacle avoidance and distance sensing
  • Environmental protection and safety monitoring systems

5. Packaging & After-sales Service

  • Packaging: Original brand individual box + export outer carton
  • Warranty: 12 months warranty against manufacturing defects
  • Supply Status: Large quantity in stock, support fast delivery and bulk orders
  • Certification: CE certified, meets international industrial standards
