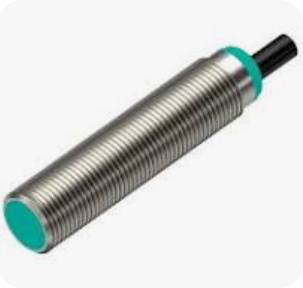

PEPPERL+FUCHS NBB4-12GM50-E0 Inductive Proximity Sensor with 4 mm Detection Distance IP65 Protection and NPN Normally Open Output
PEPPERL+FUCHS NBB4-12GM50-E0 Inductive Proximity Sensor with 4 mm Detection Distance IP65 Protection and NPN Normally Open Output
Specifications
Brand Name :
PEPPERL+FUCHS
Model Number :
NBB4-12GM50-E0
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000 pcs
Delivery Time :
5-7 days
Control Type :
Programmable Logic Controller (PLC)
Softwarecompatibility :
Supports SCADA and HMI software
Applicationindustry :
Manufacturing, Process Control, Robotics
Power Supply :
24V DC / 110V AC / 220V AC
Actual Value :
Negotiabled price
Scalability :
Modular Expansion Supported
Productname :
Industrial Control Automation
Powersupply :
24V DC / 110V AC / 220V AC
Safetystandardscompliance :
IEC 61508, ISO 13849
Warranty :
1 to 3 Years
Output Type :
Digital and Analog Outputs
Safetystandards :
IEC 61508, ISO 13849
Mounting Type :
DIN Rail / Panel Mount
Point :
14 (8DI+6DO)
Part No :
200-595-072-122 VM600 CPUM
Weight :
500 grams
Output Points :
16DO
Programminglanguage :
Ladder Logic, Function Block Diagram
Output Typt :
Relay
Industry :
Manufacturing
Outputvoltage :
24V DC
Controltype :
Programmable Logic Controller (PLC)
Application :
Manufacturing and Process Control
Inputvoltage :
24V DC / 110V AC / 220V AC
Power Supply Voltage :
100 – 240VAC.
Userinterface :
HMI Touchscreen / Software Interface
Protectionrating :
IP20 to IP65
Inputvoltagerange :
100V to 240V AC
Category :
Automation Systems
Mountingtype :
DIN Rail / Panel Mount
Communicationprotocols :
Modbus, Profibus, Ethernet/IP, OPC UA
Installationtype :
Panel Mount / DIN Rail
Integration :
SCADA, MES Systems
Operatingtemperaturerange :
-20°C to 60°C
Dimensions :
100mm x 75mm x 50mm
Description
Basic Identification Information
Brand: Pepperl+Fuchs
Model: NBB4-12GM50-E0
Order Number: 98927
Product Type: Inductive Proximity Switch / Proximity Sensor
Installation Method: Flush Mount (Shielded Embedded Type Available)
Output Type: DC Three-Wire NPN Normally Open NO
Cable Outlet: 2 m PVC Cable
Status: Available for Sale, Not Discontinued, Regular Hot-Selling Model
Mechanical Dimensions
Housing Structure: Cylindrical Thread Type
Thread Specification: M12*1
Total Length: 50 mm
Housing Material: Brass Plated with White Bronze
Sensing Surface Material: PBT
Connecting Cable: 3-Core, 0.34 mm², Black
Indicator Light: Yellow LED, 360° Visible
Electrical Performance Parameters
Operating Voltage: 5 … 36 V DC
Rated Detection Distance Sn: 4 mm
Reliable Operating Distance Sa: 0 … 3.24 mm
Actual Operating Distance: 3.6 … 4.4 mm mm
Hysteresis: Typical 5%
Switching Frequency: 0 … 3000 Hz
Load Current: 0 … 200 mA
Leakage Current: ≤ 20 μA
Voltage Drop: ≤ 1 V
Output Polarity: NPN Normally Open (NO)
Protection Functions:
Reverse Polarity Protection
Short Circuit Protection (Pulse Type)
Overvoltage Protection
Environmental and Protection Parameters
Protection Rating: IP65 / IP66 / IP67 / IP68
Operating Temperature: -40 °C … +85 °C
Storage Temperature: -40 … +85 °C
Vibration/Shock Resistance: Meets Industrial Standards
Electromagnetic Compatibility: Complies with EN 60947-5-2
Material Attenuation Coefficient (for selection reference)
Material Coefficient
Steel / Stainless Steel 1.0
Cast Iron 0.8
Brass 0.42
Aluminum 0.29
Copper 0.23
Certifications and Compliance
Standards Compliance: IEC/EN 60947-5-2
Certifications: cULus, RoHS No CCC
