Redundant Power Ethernet Switch MOXA EDS-205A 5 Port 10/100 Mbps Unmanaged Switch With Redundant Dual DC Power Inputs
Redundant Power Ethernet Switch MOXA EDS-205A 5 Port 10/100 Mbps Unmanaged Switch With Redundant Dual DC Power Inputs
Redundant Power Ethernet Switch MOXA EDS-205A 5 Port 10/100 Mbps Unmanaged Switch With Redundant Dual DC Power Inputs
Redundant Power Ethernet Switch MOXA EDS-205A 5 Port 10/100 Mbps Unmanaged Switch With Redundant Dual DC Power Inputs
Specifications
Packaging Details :
Pieces
Actual Price :
based on offer
Certification :
CO
CPU_Type :
Microprocessor-based
Model :
S7-1200
Output Points :
24 points.
Application :
Oil and Gas Factory
Memory_Size :
1 MB
Input Points :
28
Output Typt :
Relay
Supply Voltage Type :
AC
Part Type :
Sysmac CPM2A
Output_Type :
Digital and Analog
Actual Value :
Negotiabled price
Expansion_Modules_Supported :
true
Communication_Protocols :
Ethernet/IP, Modbus, Profibus
Color :
Normal
Brand Name :
MOXA
Place of Origin :
Taiwan
Payment Terms :
T/T
Delivery Time :
4-7work day
Model Number :
EDS-205A
MOQ :
2pcs
Price :
Negotiable
Supply Ability :
50PCS 1week
Description

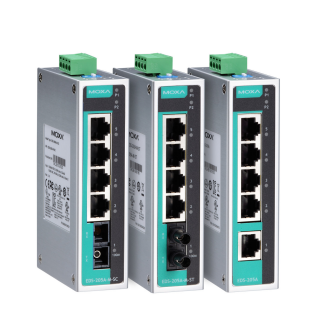

MOXA EDS-205A Industrial Ethernet Switch
Compact 5-port unmanaged industrial Ethernet switch featuring redundant dual DC power inputs and rugged IP30 aluminum housing. Designed for reliable operation in demanding industrial environments.
Key Features
  • Redundant dual 12/24/48 VDC power inputs for continuous operation
  • IP30 rated aluminum housing for industrial durability
  • DIP switches for broadcast storm protection and QoS configuration
  • PROFINET Conformance Class A compliant (HW version 3.0.0+)
  • High reliability with 3,293,423 hours MTBF (Telcordia standard)
  • 5-year manufacturer warranty
Ethernet Interface Specifications
Parameter Specification
Total Ports 5
10/100BaseT(X) Ports (RJ45) 5 (base model), 4 (fiber models)
100BaseFX Ports (fiber) 0 (base model), 1 (fiber models)
Auto Negotiation Yes (speed and duplex mode)
Auto MDI/MDI-X Yes
Standards Compliance IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Fiber Optic Specifications
Type Wavelength TX Power RX Sensitivity Max Distance
Multi-Mode SC 1260-1360 nm -10 to -20 dBm -3 to -32 dBm 4 km
Single-Mode SC 1280-1340 nm 0 to -5 dBm -3 to -34 dBm 40 km
Switch Properties
Parameter Specification
MAC Table Size 2048 entries
Packet Buffer Size 768 kbits
Forwarding Mechanism Store and Forward
Broadcast Storm Protection Yes (configurable via DIP switch)
Quality of Service (QoS) Yes (configurable via DIP switch)
Multicast Filtering Enabled when QoS is activated
Power Parameters
Parameter Specification
Power Input Type Redundant dual DC inputs
Input Voltage Range 9.6 to 60 VDC (12/24/48 VDC compatible)
Input Connection 1 removable 4-contact terminal block
Max Input Current 0.29 A
Overload Current Protection Supported
Reverse Polarity Protection Supported
Power Consumption Approx. 2.16 W (0.09 A @ 24 VDC)
Physical Characteristics
Parameter Specification
Housing Material Aluminum
Protection Class IP30
Dimensions (W x H x D) 30 x 115 x 70 mm (1.18 x 4.52 x 2.76 in)
Weight 175 g (0.39 lb)
Installation Method DIN-rail mounting, Wall mounting (optional kit required)
LED Indicators Power (PWR1, PWR2), Link/Activity (per port), Speed (per port)
DIP Switch Configuration 2 switches (Broadcast Storm Protection: ON/OFF, QoS: ON/OFF)
Environmental Limits
Parameter Standard Models Wide Temp Models (-T)
Operating Temperature -10 to 60°C (14 to 140°F) -40 to 75°C (-40 to 167°F)
Storage Temperature -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
Altitude Up to 2000 m above sea level
Available Models
Model Port Configuration Operating Temperature
EDS-205A (Base Model) 5 x 10/100BaseT(X) ports -10 to 60°C
EDS-205A-T 5 x 10/100BaseT(X) ports -40 to 75°C
EDS-205A-M-SC 4 x 10/100BaseT(X) + 1 x 100BaseFX multi-mode SC -10 to 60°C
EDS-205A-M-SC-T 4 x 10/100BaseT(X) + 1 x 100BaseFX multi-mode SC -40 to 75°C
EDS-205A-M-ST 4 x 10/100BaseT(X) + 1 x 100BaseFX multi-mode ST -10 to 60°C
EDS-205A-M-ST-T 4 x 10/100BaseT(X) + 1 x 100BaseFX multi-mode ST -40 to 75°C
EDS-205A-S-SC 4 x 10/100BaseT(X) + 1 x 100BaseFX single-mode SC -10 to 60°C
EDS-205A-S-SC-T 4 x 10/100BaseT(X) + 1 x 100BaseFX single-mode SC -40 to 75°C
