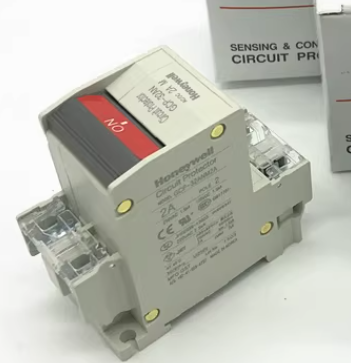

Honeywell GCP Series Ultra Compact 17.5mm Wide Dual Voltage AC/DC Circuit Breaker
Honeywell GCP Series Ultra Compact 17.5mm Wide Dual Voltage AC/DC Circuit Breaker
Honeywell GCP Series Ultra Compact 17.5mm Wide Dual Voltage AC/DC Circuit Breaker
Honeywell GCP Series Ultra Compact 17.5mm Wide Dual Voltage AC/DC Circuit Breaker
Specifications
Brand Name :
Honeywell
Model Number :
GCP-33AN
Certification :
Brand new original
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000 pcs
Delivery Time :
5-7days
Environmentalprotection :
IP54 or higher
Productname :
Protection and Control Components
Mountingtype :
Panel-mounted or DIN rail
Standardscompliance :
IEC, ANSI, IEEE
Responsetime :
Less than 10 milliseconds
Communicationprotocols :
IEC 61850, Modbus, DNP3
Function :
Protection and control of electrical power systems
Application :
Power generation, transmission, and distribution
Operatingtemperaturerange :
-20°C to +60°C
Powersupply :
24 V DC or 110/220 V AC
Accuracy :
Class 1 or better
Componentsincluded :
Relays, circuit breakers, sensors, control units
Operatingvoltagerange :
Up to 36 kV
Warrantyperiod :
2 years
Diagnosticfeatures :
Self-monitoring and fault indication
Description
Honeywell Circuit Breaker GCP-33AN
The GCP series circuit protectors represent Honeywell's most cost-effective switching equipment solution. With a wide range of installation methods and options, these circuit breakers provide exceptional flexibility for diverse industrial applications.
For applications demanding compact size, strong breaking power, high repeatability, exceptional reliability, and extended service life, the GCP series circuit protectors deliver optimal performance.
Product Features
  • Dual voltage compatibility (AC/DC)
  • Ultra-compact design (only 17.5mm wide)
  • Rated breaking capacity: 2.5kA
  • Optional auxiliary switch available
  • Wide range of installation options
  • Easy on/off indicator
Mechanical Characteristics
Characteristic Value
Shock resistance Minimum 50G
Vibration resistance Maximum 15G
Durability Minimum 10,000 cycles based on 10 opening and closing cycles per minute
Electrical Characteristics
Characteristic Value
Temperature rise Maximum temperature rise of the terminal section is 50 degrees Celsius when continuously supplied with rated current and still below the standard ambient temperature
Overload characteristics Exceeds 50 cycles based on 4 opening and closing cycles per minute under conditions of 6 times rated current
Durability characteristics Minimum 6,000 cycles based on 4 opening and closing cycles per minute under conditions of rated current
Insulation resistance Minimum 100MΩ (500V) Insulation Resistance Tester
Applications
  • Industrial machinery and equipment
  • Food and chemical equipment
  • Communication products
  • Electronic products
  • Computer peripherals
Available Models
GCP-31A, GCP-32A, GCP-33A, GCP-31AI, GCP-32AI, GCP-33AI, GCP-31AH, GCP-32AH, GCP-33AH, GCP-31AM, GCP-32AM, GCP-33AM, GCP-31AL, GCP-32AL, GCP-33AL
