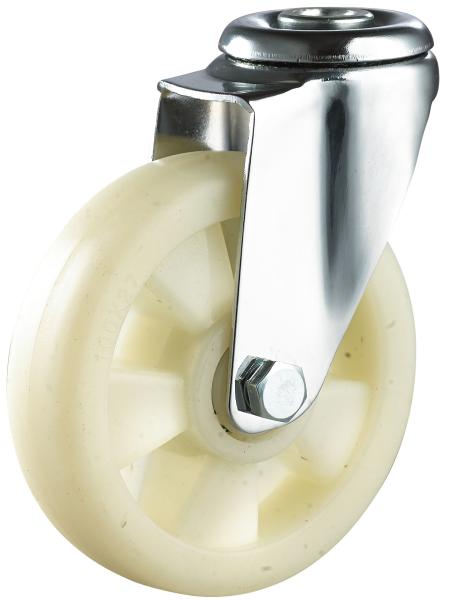

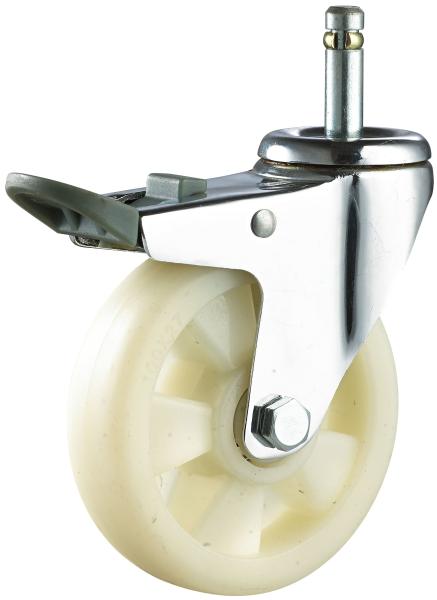

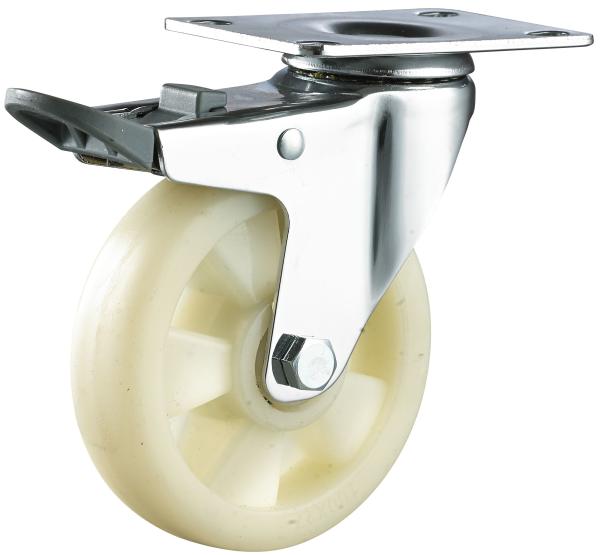

3/4/5 Inch Thread Stem PP Casters
3/4/5 Inch Thread Stem PP Casters
3/4/5 Inch Thread Stem PP Casters
3/4/5 Inch Thread Stem PP Casters
3/4/5 Inch Thread Stem PP Casters
3/4/5 Inch Thread Stem PP Casters
Specifications
Brand Name :
Dajin
Model Number :
FID-001
Certification :
Rosh/CE/ISO
Place of Origin :
China
MOQ :
500
Price :
1.64
Payment Terms :
L/C,T/T
Delivery Time :
25
Packaging Details :
14X14X8 cm
Name :
3/4/5 Inch Thread Stem PP Casters
Type :
Plate caster (brake & swivel & rigid)
Wheel Diameter :
75/100/125 mm
Tread Width :
27 mm
Wheel Material :
Polypropylence
Bearing :
Single ball bearing / No bearing
Load Capacity :
70/90/130 kg per wheel
Finish :
Galvanized
Mounting Plate :
Standard swivel plate
Plate Thickness :
2.5mm
OEM/ODM Support :
Yes
Usage :
Furniture, carts, trolleys
Description
3/4/5 Inch Thread Stem PP Casters


Features

  1. Precision Threaded Stem: M10×1.5mm fine pitch thread for micron-level height adjustment (±0.1mm)
  2. Engineering-Grade PP Wheel: 50mm diameter with UV stabilizers (tested to 500hr QUV weathering)
  3. Dual-Bearing Swivel: Chrome steel balls (ABEC-3 grade) for smooth 360° rotation
  4. Compact Design: 65mm total height - ideal for low-clearance equipment

Function

  • Micro-Adjustment: 20mm vertical travel range with locking nut for vibration-sensitive instruments
  • Multi-Angle Load Distribution: 15° self-aligning base compensates for uneven surfaces
  • Tool-Free Operation: Knurled adjustment knob allows finger-tight positioning

Application

  • Laboratory Equipment: Microscope stations, analytical balance tables
  • Electronics: PCB assembly benches, optical inspection stations
  • Cleanrooms: ISO Class 5 compliant with ESD-safe variants available

Technical Parameters


Wheel Dia (mm/inch) Tread Width (mm) Bearing Load Height (mm) Swivel Radius (mm) Plate Size (mm) Hole Size (mm) Hole Spacing (mm) Thread Size (mm) Stem Size (mm)
75 / 3" 27 No Bearing/Single Ball Bearing 105 69 / 99 92 × 65 76.5 × 44.5 / 70.5 × 44.5 8.5 M12 × 30 ⌀12 × 60
100 / 4" 27 No Bearing/Single Ball Bearing 127 85 / 109 92 × 65 76.5 × 44.5 / 70.5 × 44.5 8.5 M12 × 30 ⌀12 × 60
125 / 5" 27 No Bearing/Single Ball Bearing 154 105 / 120 92 × 65 76.5 × 44.5 / 70.5 × 44.5 8.5 M12 × 30 ⌀12 × 60
