Zinc Coating 5 Inch Industrial Caster Wheels 130kg Load Threaded TPU Caster
Zinc Coating 5 Inch Industrial Caster Wheels 130kg Load Threaded TPU Caster
Zinc Coating 5 Inch Industrial Caster Wheels 130kg Load Threaded TPU Caster
Zinc Coating 5 Inch Industrial Caster Wheels 130kg Load Threaded TPU Caster
Zinc Coating 5 Inch Industrial Caster Wheels 130kg Load Threaded TPU Caster
Zinc Coating 5 Inch Industrial Caster Wheels 130kg Load Threaded TPU Caster
Zinc Coating 5 Inch Industrial Caster Wheels 130kg Load Threaded TPU Caster
Zinc Coating 5 Inch Industrial Caster Wheels 130kg Load Threaded TPU Caster
Zinc Coating 5 Inch Industrial Caster Wheels 130kg Load Threaded TPU Caster
Zinc Coating 5 Inch Industrial Caster Wheels 130kg Load Threaded TPU Caster
Specifications
Brand Name :
EDL
Model Number :
5715S-77
Certification :
ISO9001, ISO14001, RoHS
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
30,000pcs/day
Delivery Time :
3-15days
Packaging Details :
Carton
Wheel Diameter :
5inch(125mm)
Dynamic Load :
130kg
Core Material :
PP
Tread Material :
TPU
Mounting Type :
Swivel / Brake
Mounting Height :
170mm
Frame Material :
Cold-Rolled Plate
Surface Treatment :
Zinc Coating

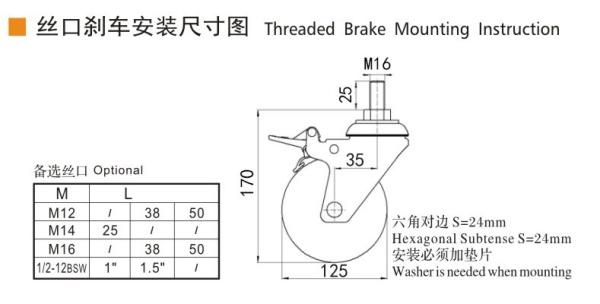

Standard Threaded :
M16×25
Bracket Thickness :
2.5mm
Bracket Width :
41mm
Wheel width :
31mm
Bearing :
Single ball bearing
Tread Color :
Grey
Applicable Temperature :
-20℃～80℃
Tread Hardness :
95A
Name :
Industrial Caster Wheels
Description

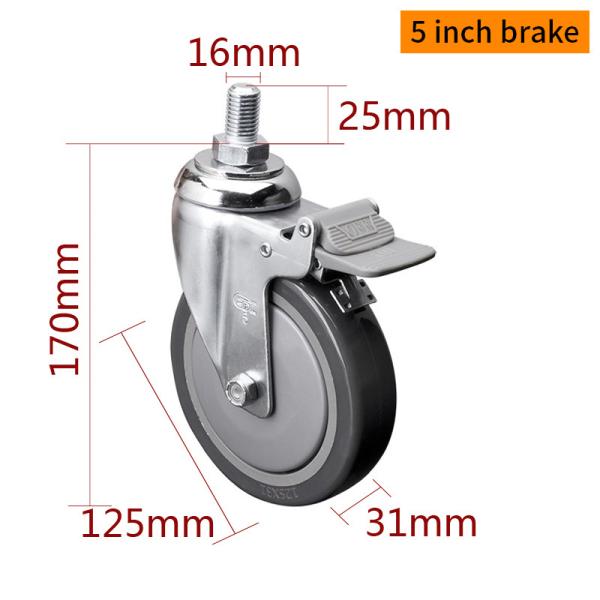

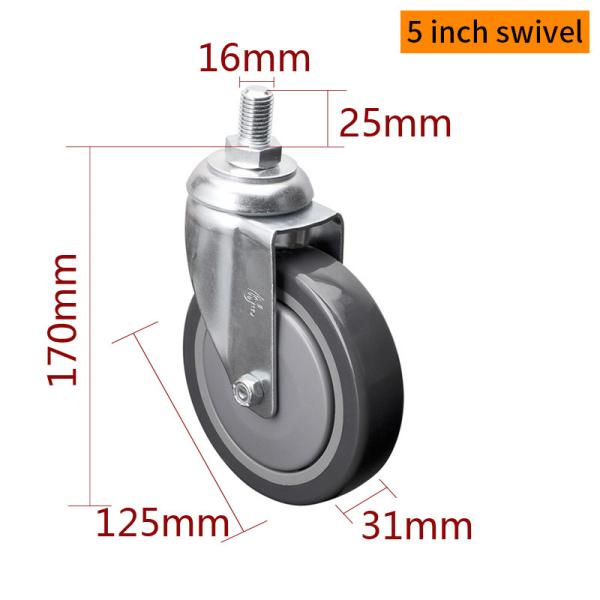

EDL Medium Duty Zinc Coating 5inch 130kg Threaded TPU Caster by Swivel and Brake type 5715S-77


The EDL Medium Duty Zinc Coating 5-inch 130kg Threaded TPU Caster by Swivel and Brake type 5715S-77 is built for enhanced durability and stability in medium-duty applications. Crafted from high-quality gray TPU, it offers outstanding wear resistance, elasticity, and a strong load-bearing capacity while minimizing floor damage. The single ball bearing ensures smooth movement, and the threaded stem installation provides a secure and firm attachment. Equipped with a plastic dual brake system for reliable stopping power, this caster is reinforced with a 2.5mm thick zinc-coated bracket, ensuring excellent strength and corrosion resistance. The 5-inch size allows for improved mobility and adaptability across various industrial and commercial environments.

Wheel ltem No.Instruction

Wheel

Item No.

 Size

Wheel

Diameter

Wheel

Width

Bracket

Width

Load

Capacity

 Core Tread Bearing

Applicable

Temperature

 Hardness
5715-77 5" 125mm 31mm 41mm 130Kg PP

TPU

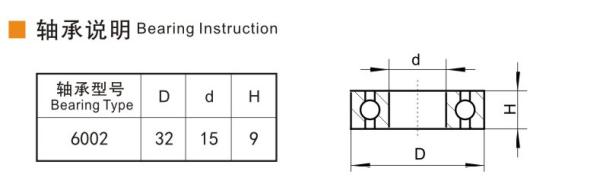

Single ball

bearing 6002

 -20℃～80℃ 95A

Zinc Coating 5 Inch Industrial Caster Wheels 130kg Load Threaded TPU CasterZinc Coating 5 Inch Industrial Caster Wheels 130kg Load Threaded TPU Caster

Zinc Coating 5 Inch Industrial Caster Wheels 130kg Load Threaded TPU CasterZinc Coating 5 Inch Industrial Caster Wheels 130kg Load Threaded TPU Caster

Zinc Coating 5 Inch Industrial Caster Wheels 130kg Load Threaded TPU Caster

FAQ:

Q: Are you manufacturer or trading company?
A: We are caster wheels manufacturer since 1987.

Q: Where is your factory? Can I visit ?
A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from Yiwu. Welcome to visit.

Q: What is your delivery time?
A: Normally within 1 week. It's up to the order quantity.

Q: What is the term of payment?
A: Payment terms: 30%(it's stand product, for customized product it's 50%) of deposit upon signing the PI and the rest will be cleared by T/T before delivery.

Q: Are samples available?
A: Yes, sample is fine at any time, negotiable.
