EDL Medium Duty Aluminum Caster 6inch 300kg Threaded by Swivel and Brake type 666S-86A
EDL Medium Duty Aluminum Caster 6inch 300kg Threaded by Swivel and Brake type 666S-86A
EDL Medium Duty Aluminum Caster 6inch 300kg Threaded by Swivel and Brake type 666S-86A
EDL Medium Duty Aluminum Caster 6inch 300kg Threaded by Swivel and Brake type 666S-86A
EDL Medium Duty Aluminum Caster 6inch 300kg Threaded by Swivel and Brake type 666S-86A
EDL Medium Duty Aluminum Caster 6inch 300kg Threaded by Swivel and Brake type 666S-86A
EDL Medium Duty Aluminum Caster 6inch 300kg Threaded by Swivel and Brake type 666S-86A
EDL Medium Duty Aluminum Caster 6inch 300kg Threaded by Swivel and Brake type 666S-86A
EDL Medium Duty Aluminum Caster 6inch 300kg Threaded by Swivel and Brake type 666S-86A
EDL Medium Duty Aluminum Caster 6inch 300kg Threaded by Swivel and Brake type 666S-86A
EDL Medium Duty Aluminum Caster 6inch 300kg Threaded by Swivel and Brake type 666S-86A
EDL Medium Duty Aluminum Caster 6inch 300kg Threaded by Swivel and Brake type 666S-86A
EDL Medium Duty Aluminum Caster 6inch 300kg Threaded by Swivel and Brake type 666S-86A
EDL Medium Duty Aluminum Caster 6inch 300kg Threaded by Swivel and Brake type 666S-86A
Specifications
Brand Name :
EDL
Model Number :
666S-86A
Certification :
ISO9001, ISO14001, RoHS
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
30,000pcs/day
Delivery Time :
3-15days
Packaging Details :
Carton
Wheel Diameter :
6inch(150mm)
Dynamic Load :
300kg
Tread Material :
TPU
Core Material :
Aluminum
Standard Threaded :
M16×25
Mounting Type :
Swivel/Brake
Mounting Height :
201mm
Frame Material :
Hot-Rolled Plate
Surface Treatment :
Zinc Coating
Bracket Thickness :
3mm
Bracket Width :
46mm
Wheel width :
38mm
Bearing :
Double ball bearing
Tread Color :
Yellow
Applicable Temperature :
-30℃～80℃
Tread Hardness :
92A
Name :
Industrial Caster Wheels
Description

EDL Medium Duty Aluminum Caster 6inch 300kg Threaded by Swivel and Brake type 666S-86A

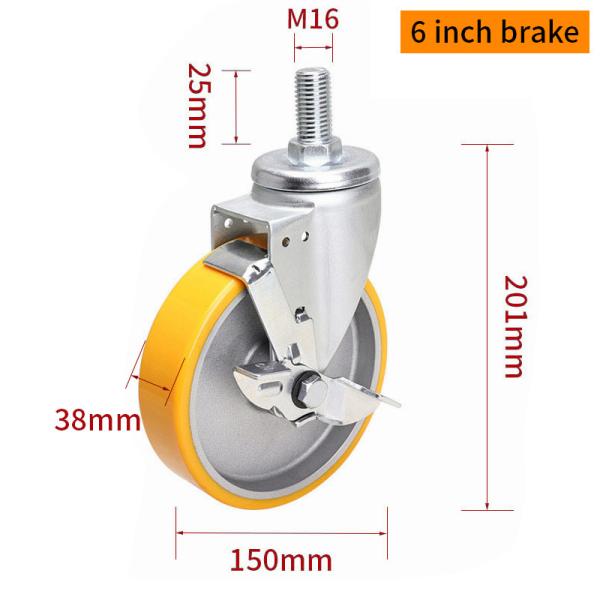

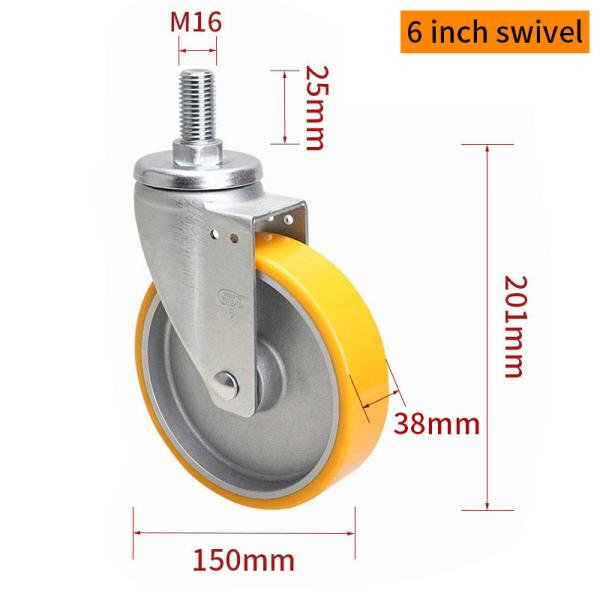

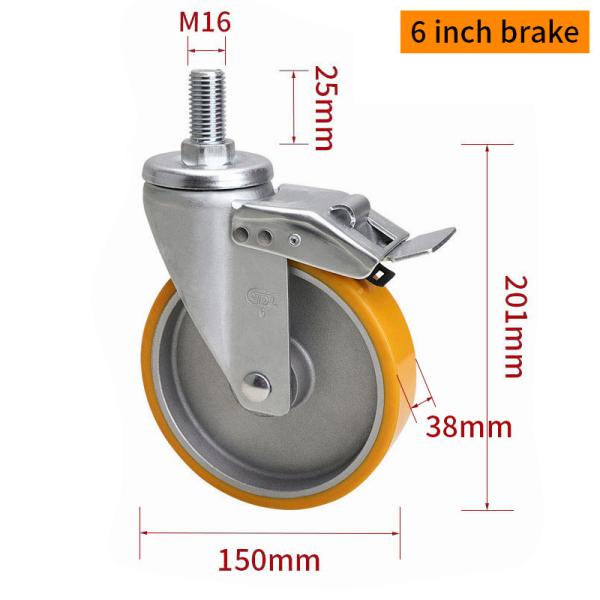

The EDL Medium Duty 6-inch Threaded Aluminum Caster 666S-86A is designed for high-load applications, supporting up to 300kg while ensuring smooth mobility and durability. The yellow TPU tread offers superior wear resistance, elasticity, and shock absorption, making it ideal for floor protection and quiet operation in industrial, medical, and commercial settings. The aluminum alloy wheel core provides exceptional strength and impact resistance, preventing deformation under continuous heavy loads. The threaded stem installation ensures secure attachment, while the 3mm thick bracket enhances stability and durability. The dual-bearing system reduces rolling resistance, ensuring smooth and effortless movement even under full loads. Equipped with both dual brake and side brake options, this caster allows for precise control and enhanced safety, making it a reliable choice for industrial carts, heavy-duty equipment, and material handling applications.

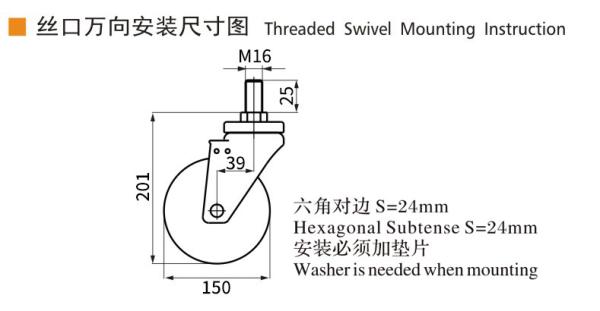

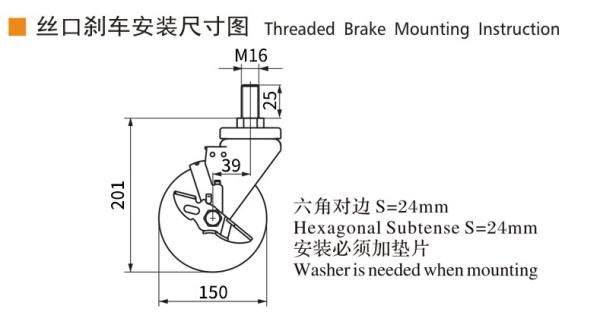

Wheel ltem No.Instruction

Wheel

Item No.

 Size

Wheel

Diameter

Wheel

Width

Bracket

Width

Load

Capacity

 Core Tread Bearing

Applicable

Temperature

 Hardness
666-86A 6" 150mm 38mm 46mm 300Kg Aluminum

TPU

Double ball

bearing 6201

 -30℃～80℃ 92A

EDL Medium Duty Aluminum Caster 6inch 300kg Threaded by Swivel and Brake type 666S-86AEDL Medium Duty Aluminum Caster 6inch 300kg Threaded by Swivel and Brake type 666S-86A

EDL Medium Duty Aluminum Caster 6inch 300kg Threaded by Swivel and Brake type 666S-86AEDL Medium Duty Aluminum Caster 6inch 300kg Threaded by Swivel and Brake type 666S-86AEDL Medium Duty Aluminum Caster 6inch 300kg Threaded by Swivel and Brake type 666S-86AEDL Medium Duty Aluminum Caster 6inch 300kg Threaded by Swivel and Brake type 666S-86A

EDL Medium Duty Aluminum Caster 6inch 300kg Threaded by Swivel and Brake type 666S-86A

FAQ:

Q: Are you manufacturer or trading company?
A: We are caster wheels manufacturer since 1987.

Q: Where is your factory? Can I visit ?
A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from Yiwu. Welcome to visit.

Q: What is your delivery time?
A: Normally within 1 week. It's up to the order quantity.

Q: What is the term of payment?
A: Payment terms: 30%(it's stand product, for customized product it's 50%) of deposit upon signing the PI and the rest will be cleared by T/T before delivery.

Q: Are samples available?
A: Yes, sample is fine at any time, negotiable.
