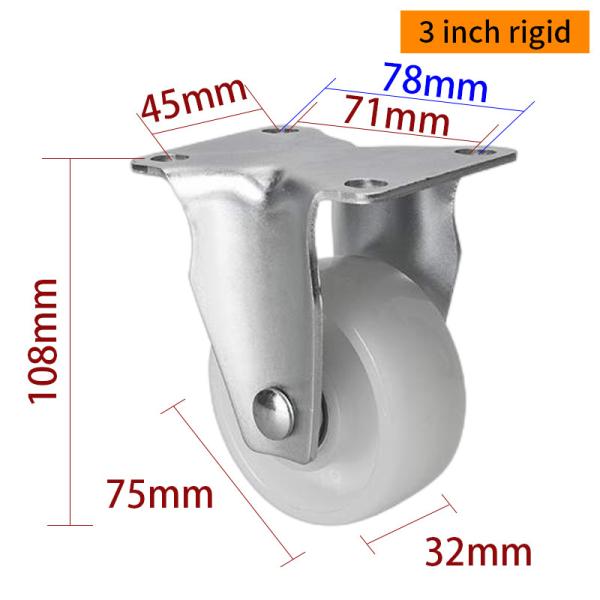

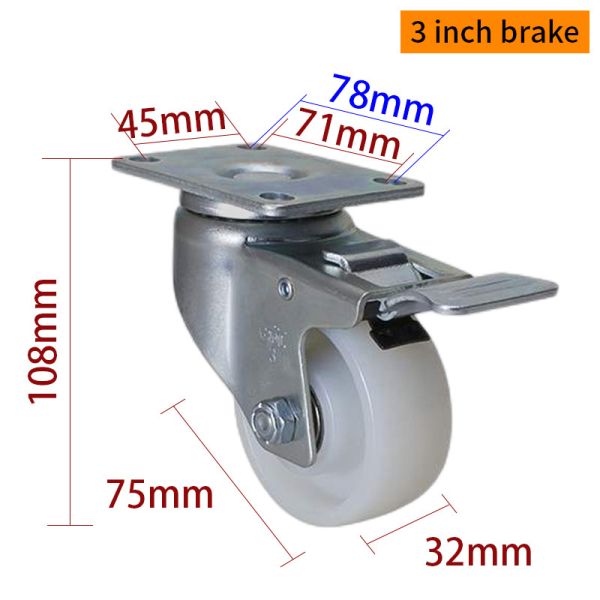

EDL Industrial Casters 3inch 150kg Plate TPA by Rigid, Swivel and Brake type
EDL Industrial Casters 3inch 150kg Plate TPA by Rigid, Swivel and Brake type
EDL Industrial Casters 3inch 150kg Plate TPA by Rigid, Swivel and Brake type
EDL Industrial Casters 3inch 150kg Plate TPA by Rigid, Swivel and Brake type
EDL Industrial Casters 3inch 150kg Plate TPA by Rigid, Swivel and Brake type
EDL Industrial Casters 3inch 150kg Plate TPA by Rigid, Swivel and Brake type
EDL Industrial Casters 3inch 150kg Plate TPA by Rigid, Swivel and Brake type
EDL Industrial Casters 3inch 150kg Plate TPA by Rigid, Swivel and Brake type
EDL Industrial Casters 3inch 150kg Plate TPA by Rigid, Swivel and Brake type
EDL Industrial Casters 3inch 150kg Plate TPA by Rigid, Swivel and Brake type
EDL Industrial Casters 3inch 150kg Plate TPA by Rigid, Swivel and Brake type
EDL Industrial Casters 3inch 150kg Plate TPA by Rigid, Swivel and Brake type
EDL Industrial Casters 3inch 150kg Plate TPA by Rigid, Swivel and Brake type
EDL Industrial Casters 3inch 150kg Plate TPA by Rigid, Swivel and Brake type
EDL Industrial Casters 3inch 150kg Plate TPA by Rigid, Swivel and Brake type
EDL Industrial Casters 3inch 150kg Plate TPA by Rigid, Swivel and Brake type
Specifications
Brand Name :
EDL
Model Number :
503P-26
Certification :
ISO9001, ISO14001, RoHS
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
30,000pcs/day
Delivery Time :
3-15days
Packaging Details :
Carton
Wheel Diameter :
3inch(75mm)
Dynamic Load :
150kg
Core Material :
PP
Tread Material :
TPA
Mounting Type :
Rigid/Swivel / Brake
Mounting Height :
108mm
Frame Material :
Cold-Rolled Plate
Surface Treatment :
Zinc Coating
Plate Thickness :
4mm
Bracket Thickness :
2.5mm
Bracket Width :
41mm
Wheel width :
32mm
Bearing :
Double ball bearings
Tread Color :
White
Applicable Temperature :
-20℃～120℃
Tread Hardness :
67D
Name :
Industrial Caster Wheels
Description

EDL Industrial Casters 3inch 150kg Plate TPA by Rigid, Swivel and Brake type 503P-26


EDL Medium Duty 3inch 150kg Plate TPA Caster 503P-26 is expertly crafted by EDL Casters, offering both strength and reliability. With a 3-inch diameter, this caster is compact yet powerful, supporting up to 150kg, making it ideal for medium-duty industrial carts, trolleys, and mobile platforms. Made from high-hardness TPA (thermoplastic elastomer), it delivers exceptional wear resistance, impact resistance, and durability while ensuring smooth rolling. The sturdy bracket structure enhances stability under load, and the precision design improves mobility efficiency. EDL Casters is dedicated to providing high-performance caster solutions, and this model exemplifies our commitment to innovation and superior craftsmanship.

Wheel ltem No.Instruction

Wheel

Item No.

 Size

Wheel

Diameter

Wheel

Width

Bracket

Width

Load

Capacity

 Core Tread Bearing

Applicable

Temperature

 Hardness
503-26 3" 75mm 32mm 41mm 150Kg /

TPA

Double ball

bearing 6001

 -20℃～120℃ 67D

EDL Industrial Casters 3inch 150kg Plate TPA by Rigid, Swivel and Brake typeEDL Industrial Casters 3inch 150kg Plate TPA by Rigid, Swivel and Brake type

EDL Industrial Casters 3inch 150kg Plate TPA by Rigid, Swivel and Brake typeEDL Industrial Casters 3inch 150kg Plate TPA by Rigid, Swivel and Brake type

EDL Industrial Casters 3inch 150kg Plate TPA by Rigid, Swivel and Brake typeEDL Industrial Casters 3inch 150kg Plate TPA by Rigid, Swivel and Brake type

EDL Industrial Casters 3inch 150kg Plate TPA by Rigid, Swivel and Brake typeEDL Industrial Casters 3inch 150kg Plate TPA by Rigid, Swivel and Brake type

EDL Industrial Casters 3inch 150kg Plate TPA by Rigid, Swivel and Brake type

FAQ:

Q: Are you manufacturer or trading company?
A: We are caster wheels manufacturer since 1987.

Q: Where is your factory? Can I visit ?
A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from Yiwu. Welcome to visit.

Q: What is your delivery time?
A: Normally within 1 week. It's up to the order quantity.

Q: What is the term of payment?
A: Payment terms: 30%(it's stand product, for customized product it's 50%) of deposit upon signing the PI and the rest will be cleared by T/T before delivery.

Q: Are samples available?
A: Yes, sample is fine at any time, negotiable.
