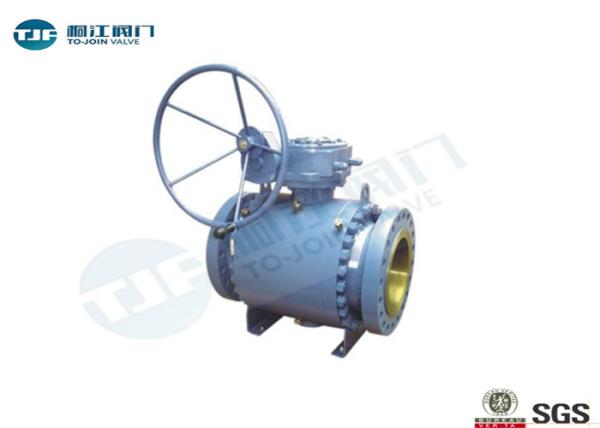

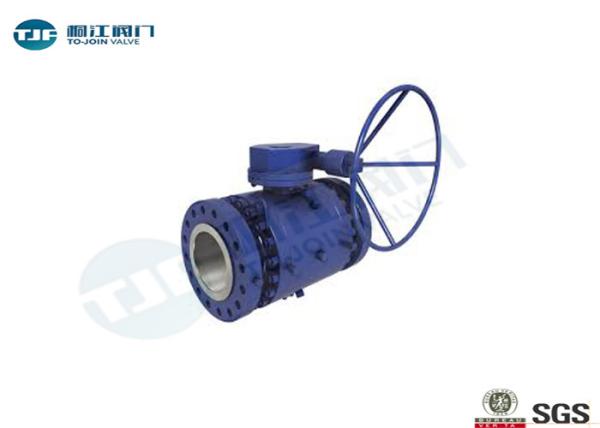

Trunnion 3-Piece Flanged Ball Valve , API 6D , Sizes 2" - 42"

PRODUCT INTRODUCTION

1. Product Description :

TongJiang Valve manufactures some of the most dependable cast and forged steel Ball Valves in the industry. Our products are manufactured and tested in accordance with respective API, ASME, and ANSI standards. With features such as double block and bleed capabilities, secondary sealant injections, and spring energized self relieving seats, the SCV design offers many features and options beneficial for oil, gas, and liquid applications making it one of the most preferred ball valves on the market.

2. Material

BODY: Carbon steel, Stainless steel, Low temperature carbon steel, Duplex, Special Alloys,... Other materials under request
SEATS : A182 F316 or A351Gr. CF8M. Other materials under request
TRIM: 316, 410, MONEL,... Other materials under request

3. Design Features

3-pieces body, full bore. Fire-Safe certified, trunnion ball with spring loaded seats, blow out proof stem, flanged connections.
Non-removable antistatic devices assure electric continuity between ball and
body through the stem.
All wetted component materials and bolting meet NACE MR.01.75 latest edition as standard.
Asbestos free.

4. Application

Refinery
Chemical
Petrochemical
Power plant
Gas

DESIGN & MANUFACTURING STANDARDS
Basic Design API 6D
Wall Thickness API 6D
Face-to-Face Dimension API 6D
Flange End Dimension ANSI/ASME B16.5 (1” to 24”)
ANSI/ASME B16.47 (26” & up)
Butt-Weld End Dimension ANSI/ASME B16.25
Inspection & Testing API 6D
Fire Safe Design API 607/BS 6755

5. Trunnion 3-Piece Flanged Ball Valve Drawing and Datasheet
DIMENSIONAL DATA - FULL PORT - TRUNNION MOUNTED BALL VALVES - API 6D

Flange End Trunnion Ball Valve , API 6D Three Piece Ball Valve 2

DIMENSIONAL DATA
3-Piece Trunnion Mounted Ball Valves - API 6D
Full Port
Class: 150
​Sizes: 2" - 42"

SIZE BORE END-TO-END BODY DIMENSIONS TRUNNION FLG WEIGHT BW WEIGHT
F A - RF A - RTJ A - WE H1 H2 H3 EXT INT LBS/KG LBS/KG
IN 2 x 2* 2.00 7.00 / 8.50 4.44 6.50 8.90 YES / 39.6 28.6
MM 50 x 50 51 178 / 216 113 165 226 18 13
IN 3 x 3* 3.00 8.00 / 11.125 5.56 8.69 11.09 YES / 68.2 52.8
MM 80 x 80 76 203 / 283 141 221 282 31 24
IN 4 x 4* 4.00 9.00 / 12.00 6.50 9.56 11.96 YES / 118.8 94.6
MM 100 x 100 102 229 / 305 165 243 304 54 43
IN 6 x 6 6.00 15.50 / 18.00 8.69 12.19 14.59 YES / 497.2 398.2
MM 150 x 150 152 394 / 547 221 310 371 226 181
IN 8 x 8 8.00 18.00 / 20.50 10.38 14.80 17.20 YES / 748 646.8
MM 200 x 200 203 457 / 521 264 376 437 340 294
IN 10 x 10 10.00 21.00 / 22.00 12.13 16.63 19.78 YES / 1196.8 1047.2
MM 250 x 250 254 533 / 559 308 422 502 544 476
IN 12 x 12 12.00 24.00 / 25.00 13.88 18.69 21.84 YES / 1696.2 1546.6
MM 300 x 300 305 610 / 635 353 475 555 771 703
IN 14 x 14 13.25 27.00 / 30.00 15.50 21.00 24.15 YES / 2343 2145
MM 350 x 350 337 686 / 762 394 533 613 1065 975
IN 16 x 16 15.25 30.00 / 33.00 17.19 22.75 26.75 / YES 3042.6 2743.4
MM 400 x 400 387 762 / 838 437 578 680 1383 1247
IN 18 x 18 17.25 34.00 / 36.00 18.75 25.75 29.80 / YES 4389 3940.2
MM 450 x 450 438 864 / 914 476 654 757 1995 1791
IN 20 x 20 19.25 36.00 / 39.00 20.50 27.05 32.50 / YES 5288.8 4789.4
MM 500 x 500 489 914 / 991 521 687
