Firestone Air Spring W01-358-7001 Air Shock Suspension for Anti-Vibration Table
Firestone Air Spring W01-358-7001 Air Shock Suspension for Anti-Vibration Table
Firestone Air Spring W01-358-7001 Air Shock Suspension for Anti-Vibration Table
Firestone Air Spring W01-358-7001 Air Shock Suspension for Anti-Vibration Table
Firestone Air Spring W01-358-7001 Air Shock Suspension for Anti-Vibration Table
Firestone Air Spring W01-358-7001 Air Shock Suspension for Anti-Vibration Table
Firestone Air Spring W01-358-7001 Air Shock Suspension for Anti-Vibration Table
Firestone Air Spring W01-358-7001 Air Shock Suspension for Anti-Vibration Table
Specifications
Brand Name :
AIRSUSTECH
Model Number :
1B7731
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 pieces
Price :
Negotiable
Payment Terms :
T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000pcs/week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Manufacturer :
AIRSUSTECH
Part Number :
1B7731
Screw Type :
2×3/8-16UNC
Min. Height :
50 MM
Max. Height :
115 MM
Condition :
100% Brand New
Goodyear :
1B6-051
HS Code :
8708809000
Description

Firestone Air Spring W01-358-7001 Air Shock Suspension for Anti-Vibration Table

Product Description

Air springs are used to resiliently attach machines and devices that generate shocks and vibrations transmitted through the foundation to the environment (eg textile looms, conveyors, impact hammers, forging presses, etc.). They are perfect for isolating laboratory instruments against vibrations. They can also be used to suspend truck trailers and caravans. They are used in pneumatic lifts, e.g. in car repair shops. Operation as a single linear air motor is also a common application.

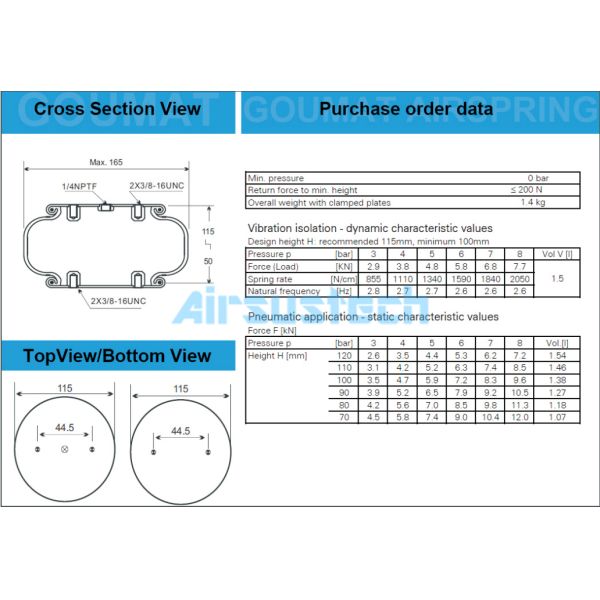

Product Detailed Datas

[1] Cover Plate Diameter: 115 mm

[2] Center to Center Distance: 44.5 mm

[3] Min. Compressed Height: 50 mm

[4] Max. Extended Height: 115 mm

[5] Full Stroke: 65 mm

[6] Air Fitting: 1/4NPTF

[7] Screw Nuts Type: 2×3/8-16UNC

[8] Maximum Diameter: 165 mm

Superseded Part Number

Firestone W01-358-7731

Firestone W013587731

Firestone W01 358 7731

Firestone WO1-358-7731

Firestone WO13587731

Firestone WO1 358 7731

Goodyear 1B6-051 / 1B 6-051

Goodyear 1B6051 / 1B 6051

Goodyear 1B6 051 / 1B 6 051

Firestone W01-358-7001

Firestone W013587001

Firestone W01 358 7001

Firestone WO1-358-7001

Firestone WO13587001

Firestone WO1 358 7001

Goodyear 578-92-0-075

Goodyear 578920075
Goodyear 578 92 0 075


Packaging & Shipping


Packing Details
1. One piece in a poly bag.1piece in a carton.
2. Mark the product numbers and the QTY outside the carton.
3. As your requirement.


Shipping Details
1.Delivery time: Usually 2-8 working days after receiving the payment.
2.Shipping by Air,By Sea,By Express(DHL,UPS,FEDEX...)
3.Please make sure the address is correct, after the goods are shipped, we will track the logistics information until you receive the goods.

Other Single Convoluted Rubber Air Springs

1B12-305 FS 40-6 CI SP2906
1B14-350 FS 50-5 CI SP2334
1B14-352 FS 70-7 CI SP2913
1B14-364 FS 100-10 CI SP1536
1B15-376 FS 120-10 CI SP1537
1B15-378 FS 120-12 CI SP2523
1B12-313 FS 200-10 CI SP1540
1B14-351 FS 310-12 CI SP1543
1B14-362 FS 330-11 CI
1B15-377 FS 330-14 CI
1B15-375 FS 530-11 CI
FS 530-14 CI
FS 960-12 CI
FS 1330-11 CI

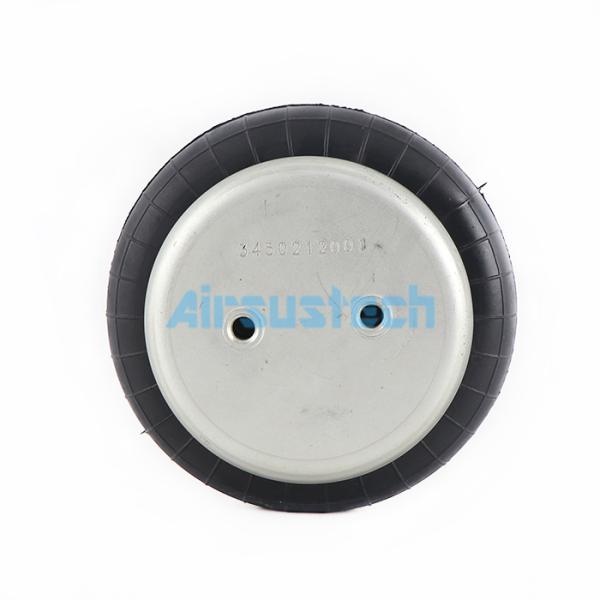

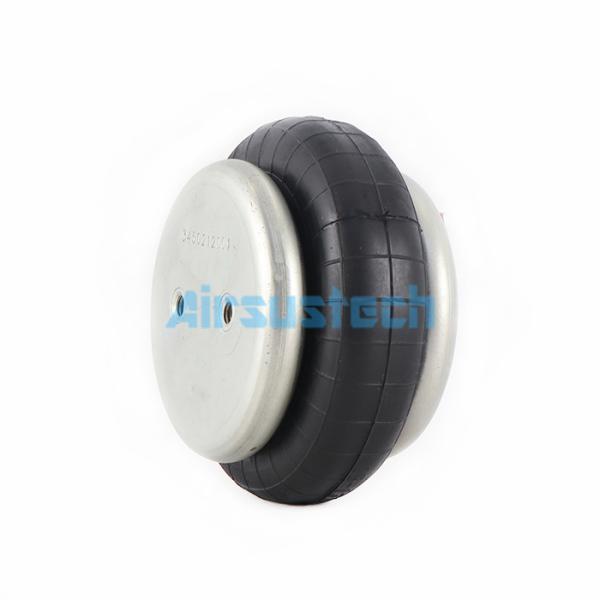

Product Images

Firestone Air Spring W01-358-7001 Air Shock Suspension for Anti-Vibration Table

Firestone Air Spring W01-358-7001 Air Shock Suspension for Anti-Vibration Table

Factory Workshop
Firestone Air Spring W01-358-7001 Air Shock Suspension for Anti-Vibration TableFirestone Air Spring W01-358-7001 Air Shock Suspension for Anti-Vibration TableFirestone Air Spring W01-358-7001 Air Shock Suspension for Anti-Vibration Table
