ø380MM Max. Diameter Firestone Style 21 W01-M58-7710 Double Convoluted Air Spring
ø380MM Max. Diameter Firestone Style 21 W01-M58-7710 Double Convoluted Air Spring
ø380MM Max. Diameter Firestone Style 21 W01-M58-7710 Double Convoluted Air Spring
ø380MM Max. Diameter Firestone Style 21 W01-M58-7710 Double Convoluted Air Spring
ø380MM Max. Diameter Firestone Style 21 W01-M58-7710 Double Convoluted Air Spring
ø380MM Max. Diameter Firestone Style 21 W01-M58-7710 Double Convoluted Air Spring
ø380MM Max. Diameter Firestone Style 21 W01-M58-7710 Double Convoluted Air Spring
ø380MM Max. Diameter Firestone Style 21 W01-M58-7710 Double Convoluted Air Spring
Specifications
Supply Ability :
1000 PCS/Week
Temperature Range :
-40°F...158°F
Brand Name :
AIRSUSTECH
Quality :
100% Inspected
Model Number :
2H350255
After-sales Service :
One Year
MOQ :
1 Piece
Delivery Time :
3-8 Working Days
Standard :
OEM Standard
Payment Terms :
T/T,,Paypal or Others,L/C,D/A,D/P,MoneyGram
Specification :
Metric Size
Firestone :
W01-M58-7710
Price :
Negotiable
Nominal Diameter :
ø250 MM
Full Stroke :
205 MM
PCD :
ø287 MM
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
Number of Ply Bellows :
Two
Packaging Details :
Strong Carton Box or as Customers Requirement
Description
ø380MM Max. Diameter Firestone Style 21 W01-M58-7710 Double Convoluted Air Spring
High-performance double convoluted air spring designed for industrial applications requiring reliable air suspension solutions.
Product Specifications
Manufacturer: AIRSUSTECH
Model No.: 2H350255
Bellows Type: double convolutions
Connection Type: flange connection
Material: rubber and steel
Durability: high
Condition: 100% new
Equivalent OEM Numbers
  • Model 21 BR 89457
  • Model 21BR89457
  • Model 21BR
  • Model 89457
  • Girelli 20.38.0053.0
  • Girelli 203800530
  • Austeras 99381024
  • Ive-co 8194818
  • Viberti 128118102
  • Campana 05.050.0400
  • Cardi 58053300
  • B.P.W. 0.41.04.004.0
  • B.P.W. 041040040
  • B.P.W. 0 41 04 004 0
  • Tras car 03003000020
  • Ror - meritor 21225697
  • Kaessbohrer 4731005000
  • Gart 274.2.210
  • Gart 2742210
  • Gart 274 2 210
  • Firestone W01-M58-7710
  • Firestone WO1-M58-7710
  • Firestone W01M587710
  • Firestone WO1M587710
  • Firestone W01 M58 7710
  • Firestone WO1 M58 7710
Technical Dimensions
Nominal Diameterø250 MM
Minimum Height90 MM
Maximum Height295 MM
Total Stroke205 MM
PCDø287 MM
Design Height255 MM
Flange Ring Diameterø309 MM
Max. Outer Diameter at 0.7MPaø380 MM
Mounting Bolts12-M10
Technical Performance Data
Load (kg) Installation Height (mm) 0.2 MPa 0.3 MPa 0.4 MPa 0.5 MPa 0.6 MPa 0.7 MPa 0.8 MPa
901814272236284538547463817318
1561567235531353944479956056416
2221249187725323187389045705237
2551095167922692851348040984726
295892137618832384290234304000
320737116215892010246729203431
Stiffness and Frequency at Design Height
Parameter 0.2 MPa 0.3 MPa 0.4 MPa 0.5 MPa 0.6 MPa 0.7 MPa 0.8 MPa
Vertical Stiffness (Kg/cm) 121 160 215 265 305 342 384
Inherent Frequency (Hz) 1.66 1.55 1.54 1.53 1.48 1.45 1.43
Inherent Frequency (cpm) 100 93 92 92 89 87 86
Product Images

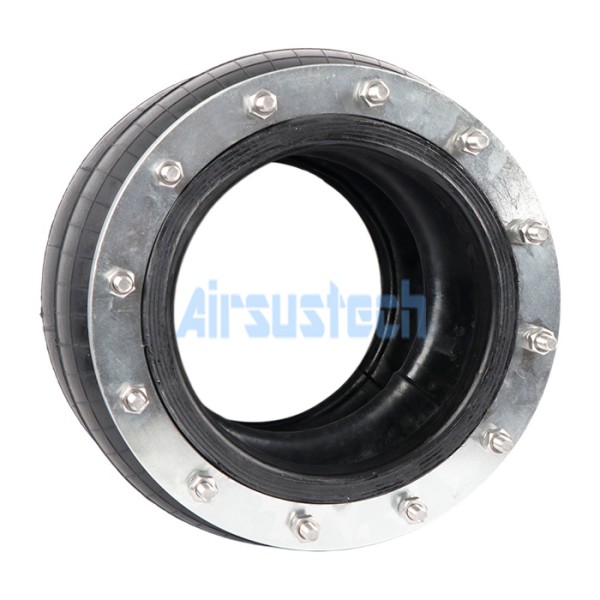

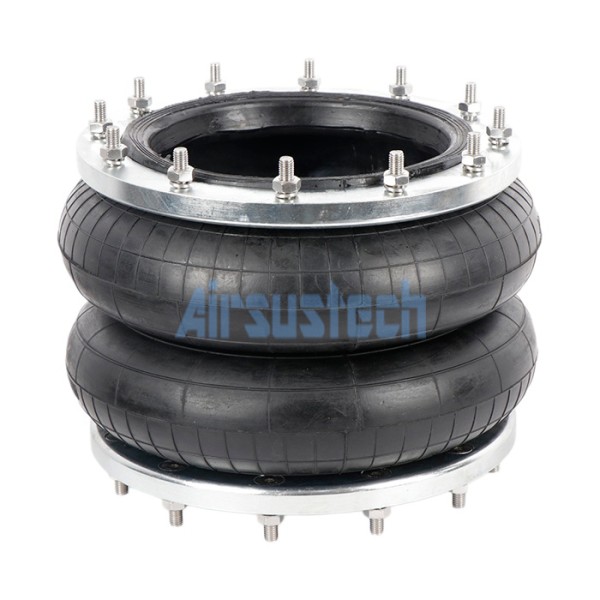

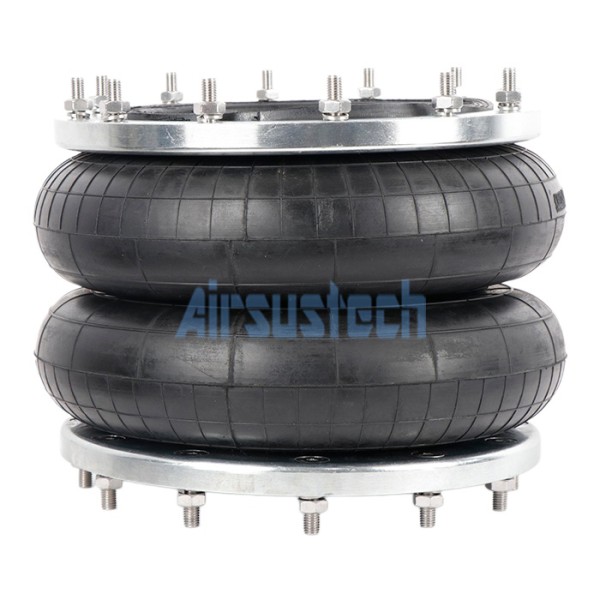

ø380MM Max. Diameter Firestone Style 21 W01-M58-7710 Double Convoluted Air Spring ø380MM Max. Diameter Firestone Style 21 W01-M58-7710 Double Convoluted Air Spring
Available Air Spring Types
ø380MM Max. Diameter Firestone Style 21 W01-M58-7710 Double Convoluted Air Spring
Manufacturing Capabilities
ø380MM Max. Diameter Firestone Style 21 W01-M58-7710 Double Convoluted Air Spring
