FD 330-22 363 Contitech Suspension Air Spring Kit AIRSUSTECH 2B6330 Air Actuator
FD 330-22 363 Contitech Suspension Air Spring Kit AIRSUSTECH 2B6330 Air Actuator
FD 330-22 363 Contitech Suspension Air Spring Kit AIRSUSTECH 2B6330 Air Actuator
FD 330-22 363 Contitech Suspension Air Spring Kit AIRSUSTECH 2B6330 Air Actuator
FD 330-22 363 Contitech Suspension Air Spring Kit AIRSUSTECH 2B6330 Air Actuator
FD 330-22 363 Contitech Suspension Air Spring Kit AIRSUSTECH 2B6330 Air Actuator
FD 330-22 363 Contitech Suspension Air Spring Kit AIRSUSTECH 2B6330 Air Actuator
FD 330-22 363 Contitech Suspension Air Spring Kit AIRSUSTECH 2B6330 Air Actuator
Specifications
Brand Name :
AIRSUSTECH
Model Number :
2B6330
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 pieces
Price :
Negotiable
Payment Terms :
T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000pcs/week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Max. Diameter :
325 MM
Air Inlet :
1/4NPTF
Goodyear :
2B12-425
Warranty Special :
12 Months
Structure :
Double Cylinder
Type of Goods :
Air Spring/Air Bags/Air Ballons
Description

FD 330-22 363 Contitech Suspension Air Spring Kit AIRSUSTECH 2B6330 Air Actuator

What Is Industrial Convoluted Rubber Air Spring?

Air springs are elastic components used in industrial manufacturing and machining centers to absorb vibration and dampen shock. Using air pressure, they can rapidly adjust the spring's tension as needed, effectively mitigating impact forces and protecting equipment and personnel from vibration and noise damage. In industrial manufacturing environments, air suspensions are widely used in high-precision mechanical systems such as machine tools, injection molding machines, and printing equipment, helping to improve equipment efficiency and extend its lifespan. Compared to traditional mechanical shock absorbers, air bags offer advantages such as compact size, light weight, and ease of maintenance, making them an indispensable shock-absorbing technology in modern industry.

Part Interchanges

Manufacturer Refer No.
Contitech

FD 330-22 363

FD 33022 363

FD 330 22 363
Firestone

W01-358-7180 / W01-358-7122

W013587180 / W013587122

W01 358 7180 / W01 358 7122
Goodyear

2B12-425 / 2B12-311

2B12425 / 2B12311

2B12 425 / 2B12 311
Triangle 6316/4363
Vibracoustic VSP2B22R7180
EI Ride 8030190
Leland Sc2075
Navistar 1685179C1
Hendrickson 1VA1816
Ridewell 1003587180C
SAF Holland 57007180
Watson & Chalinl AS0154 1G/01881F
Peerless

0550 00001


Product Detailed Datas

Supplier Contitech AIRSUSTECH
Compressed Height 3.10 inches 81 mm
Max. Extended Height 12.50 inches 305 mm
Cover Plate Width 9.00 inches 231 mm
Center Distance of Top Plate 6.20 inches 157.5 mm
Gas Hole Standard 1/4-18 NPTF 1/4 NPTF
Screw Nuts Type 2×3/8-16 UNC 2×3/8-16 UNC
Max. Diameter 12.80 inches 325 mm
Distance Between Air Hole and Screw 2.88 inches 73 mm
Structure double convolutions double convolutions

Applications of Industrial Air Springs

  • Pulp and Paper Industry
  • Lumber Mills
  • Lift Tables
  • Tooling and Machining System
  • Energy Production
  • Tooling Robotics and Automation
  • Component Assembly
  • Automotive Assembly
  • Medical Equipment
  • Conveyor Systems
  • Packing
  • Scissor Lift
  • Hopper Vibration and Damping
  • Mechanical Handling Stop
  • Quick Lock Device

Other Double Convoluted Air Shock Springs OEM Numbers

Double Convoluted
2B6-530 2B6-531
2B6-532 2B6-535
2B6-536 2B7-540
2B7-541 2B7-542
2B7-545 2B7-546
2B8-550 2B8-552
2B8-553 2B8-554
2B9-200 2B9-201
2B9-204 2B9-205
2B9-216 2B9-250
2B9-251 2B9-253
2B12-309 2B12-218
2B12-425 2B12-429
2B12-437 2B12-416
2B14-352 2B14-353
2B14-354 2B14-355
2B14-362 2B14-363
2B14-452 2B15-375
2B15-376 2B15-377
2B15-378 2B19-8433
2B22-8539

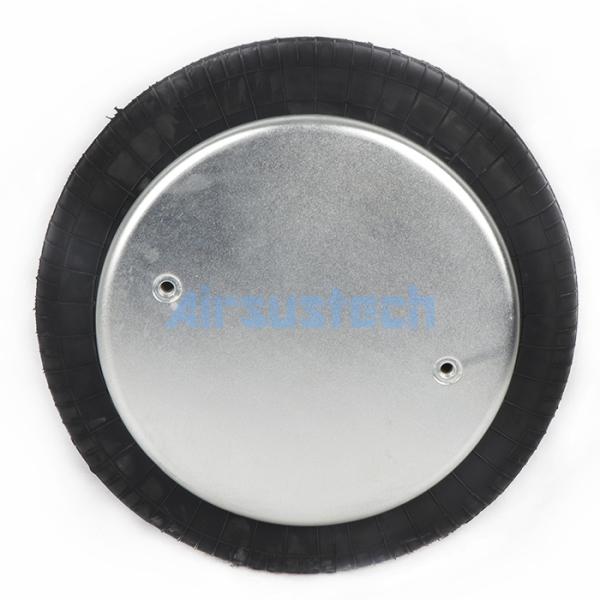

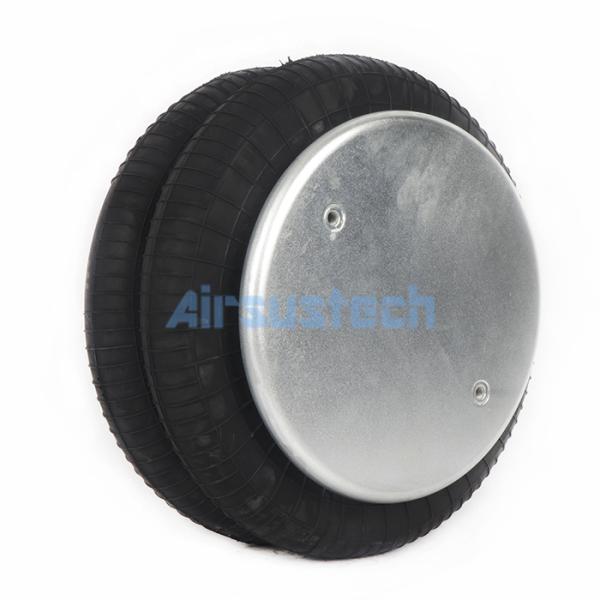

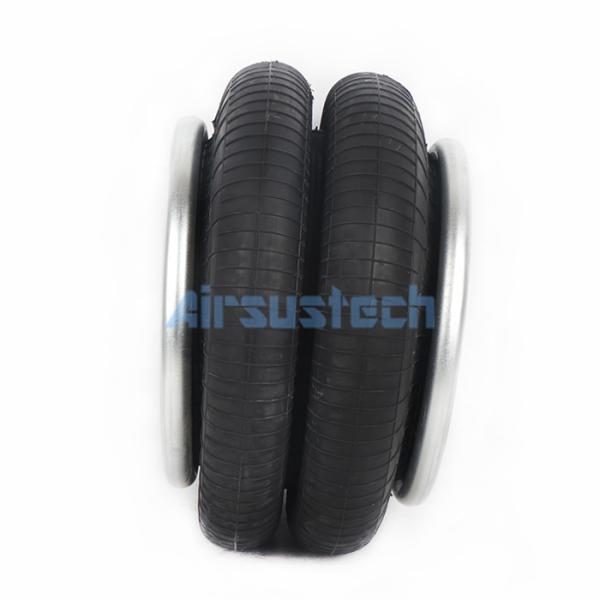

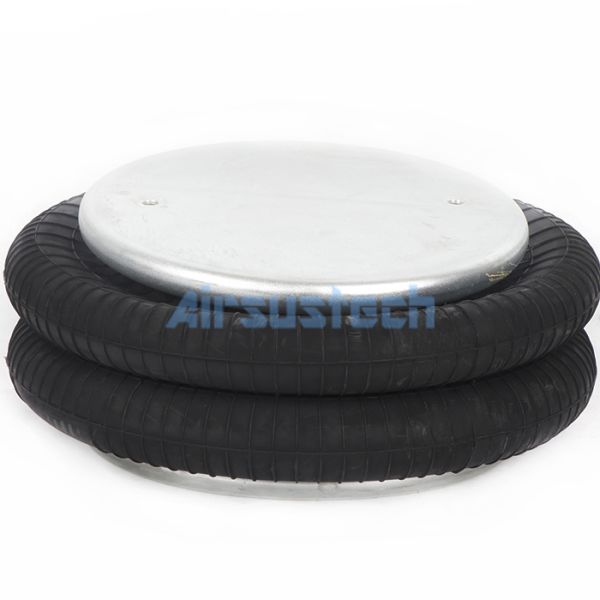

Product Images
