W01-358-7564 1/4NPT Firestone Industrial Air Bellows for Crushing Machine Air Bag
W01-358-7564 1/4NPT Firestone Industrial Air Bellows for Crushing Machine Air Bag
W01-358-7564 1/4NPT Firestone Industrial Air Bellows for Crushing Machine Air Bag
W01-358-7564 1/4NPT Firestone Industrial Air Bellows for Crushing Machine Air Bag
W01-358-7564 1/4NPT Firestone Industrial Air Bellows for Crushing Machine Air Bag
W01-358-7564 1/4NPT Firestone Industrial Air Bellows for Crushing Machine Air Bag
W01-358-7564 1/4NPT Firestone Industrial Air Bellows for Crushing Machine Air Bag
W01-358-7564 1/4NPT Firestone Industrial Air Bellows for Crushing Machine Air Bag
Specifications
Brand Name :
AIRSUSTECH
Model Number :
1B8×4
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 pieces
Price :
Negotiable
Payment Terms :
T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000pcs/week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Trademark :
AIRSUSTECH
Part Number :
1B8×4
Full Stroke :
4 Inches
Gas Hole :
1/4NPT
Purpose :
Reduce Shock
Warranty :
1 Year
Quality :
High Quality
Contitech :
FS 120-10
Description

W01-358-7564 1/4NPT Firestone Industrial Air Bellows for Crushing Machine Air Bag

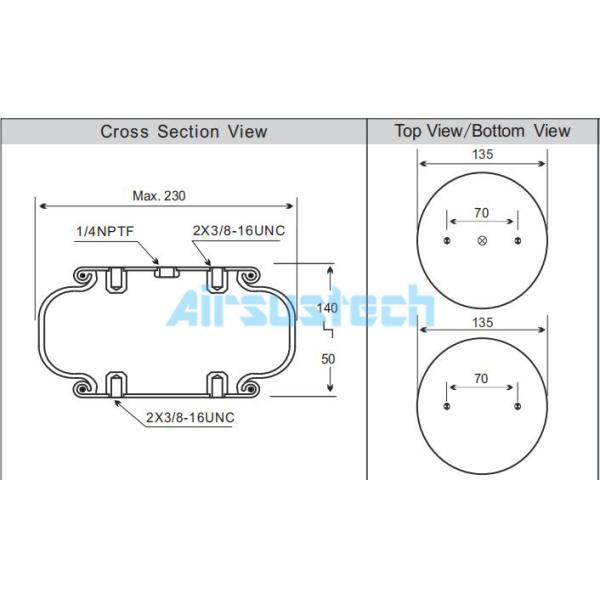

Product Specifications: AIRSUSTECH VS. Firestone

Brand Name AIRSUSTECH Firestone
Part Number 1B8×4 W01-358-7564
Min. Height 50 mm 2 inches
Max. Height 140 mm 6 inches
Maximum Diameter 230 mm 9.1 inches
Cover Plate Diameter 135 mm 5.31 inches
Center Distance 70 mm 2.75 inches
Air Fitting 1/4NPTF 1/4NPT
Threaded Hole 3/8-16UNC 3/8-16UNC

Replaces These Air Springs (Air Bellows)

Replaces Firestone W01-358-7564

Replaces Firestone W01-358-7564

Replaces Firestone W01 358 7564
Replaces Goodyear 1B8-550

Replaces Goodyear 1B8550

Replaces Goodyear 1B8 550
Replaces Contitech FS 120-10

Replaces Contitech FS 12010

Replaces Contitech FS 120 10
Replaces Goodyear Bellows NO. 579-913-530

Replaces Goodyear Bellows NO. 579913530

Replaces Goodyear Bellows NO. 579 913 530

Firestone Style 116 OEM Numbers

Blind nuts, 1/4NPT

W01-358-7564, W013587564, W01 358 7564

WO1-358-7564, WO13587564, WO1 358 7564
Blind nuts, 3/4NPT

W01-358-7561, W013587561, W01 358 7561

WO1-358-7561, WO13587561, WO1 358 7561
Countersunk steel bead rings, 13/4 bolts, nuts, washers

W01-358-7568, W013587568, W01 358 7568

WO1-358-7568, WO13587568, WO1 358 7568
Blind nuts with installed 1/4 tank valve

W01-A72-7518, W01A727518, W01 A72 7518

WO1-A72-7518, WO1A727518, WO1 A72 7518
Rubber bellow only

W01-358-0133, W013580133, W01 358 0133

WO1-358-0133, WO13580133, WO1 358 0133

Advantages as AIRSUSTECH Air Bellows

1. Maintenance Free

Due to the rubber bellow long-life service (without sliding sealing elements), the operational costs are lower than a conventional cylinder.

2. Lateral Misalignament

Due to their flexibility, the air bellows can operate with lateral misalignments uo to 30 mm, reducing costs by avoiding use of precision guides.

3. Wide Size Range

The rubber bellows range covers external diameter dimensions from 80 to 950 mm with loads from 0.5 to 450 kN.

4. Tilt Motion

Rubber bellows have an angular capability up to 25 angle.

5. Uniform Movements

The stick-slip effect, present in the conventional cylinders, is avoided.

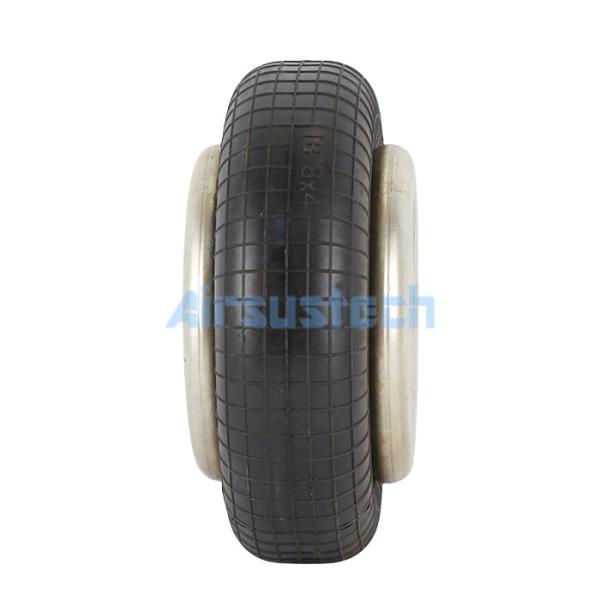

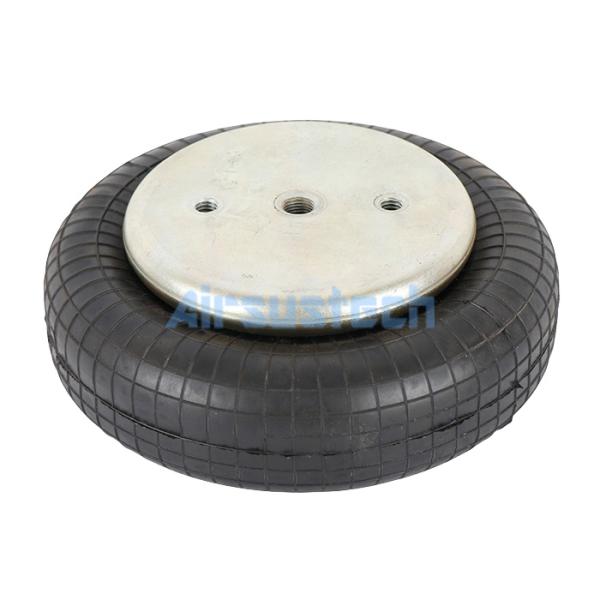

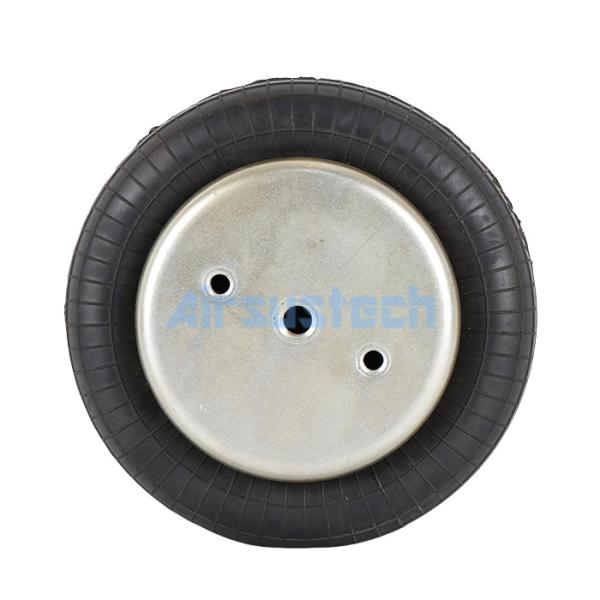

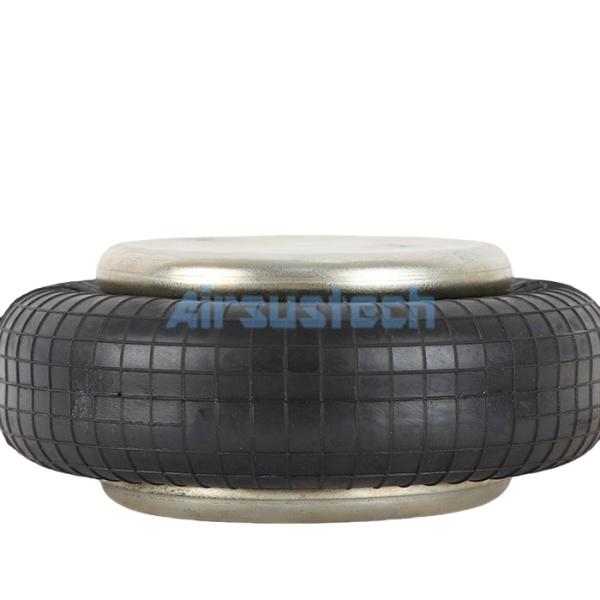

The Real Photos

W01-358-7564 1/4NPT Firestone Industrial Air Bellows for Crushing Machine Air BagW01-358-7564 1/4NPT Firestone Industrial Air Bellows for Crushing Machine Air Bag

Manufacturing FacilityW01-358-7564 1/4NPT Firestone Industrial Air Bellows for Crushing Machine Air Bag W01-358-7564 1/4NPT Firestone Industrial Air Bellows for Crushing Machine Air Bag W01-358-7564 1/4NPT Firestone Industrial Air Bellows for Crushing Machine Air Bag
