Industrial Rubber Air Spring Festo 36494 G1/4 M8 for Food Processing Equipment
Industrial Rubber Air Spring Festo 36494 G1/4 M8 for Food Processing Equipment
Industrial Rubber Air Spring Festo 36494 G1/4 M8 for Food Processing Equipment
Industrial Rubber Air Spring Festo 36494 G1/4 M8 for Food Processing Equipment
Industrial Rubber Air Spring Festo 36494 G1/4 M8 for Food Processing Equipment
Industrial Rubber Air Spring Festo 36494 G1/4 M8 for Food Processing Equipment
Industrial Rubber Air Spring Festo 36494 G1/4 M8 for Food Processing Equipment
Industrial Rubber Air Spring Festo 36494 G1/4 M8 for Food Processing Equipment
Specifications
Brand Name :
AIRSUSTECH
Model Number :
2B7070
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 pieces
Price :
Negotiable
Payment Terms :
T/T,,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000pcs/week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Supplier :
AIRSUSTECH
Threaded Hole :
2×M8×1.25
Static Height :
162 MM
Working Temperature :
-40℃+70℃
Shippment :
By Sea, By Air, by DHL/Fedex/UPS
Type of Goods :
Air Spring/Air Bags/Air Ballons
After-sales Service :
12 Months
Description
Industrial Rubber Air Spring Festo 36494 G1/4 M8 for Food Processing Equipment
Product Specifications
Attribute Value
Supplier AIRSUSTECH
Model Number 2B7070
Threaded Hole 2×M8×1.25
Static Height 162 MM
Working Temperature -40℃ to +70℃
Shipment By Sea, By Air, by DHL/Fedex/UPS
Type of Goods Air Spring/Air Bags/Air Balloons
After-sales Service 12 Months
Product Detailed Data
Specification AIRSUSTECH Contitech
Part Number 2B7070 FD 70-13 CI
Air Fitting G1/4 G1/4
Threaded Hole 2×M8×1.25 2×M8×1.25
Cover Plate Diameter 105 mm 108 mm
Center Distance 44.5 mm 44.5 mm
Design Height 162 mm 175 mm
Structure double convolutions double convolutions
Compatible Replacement Parts
  • Replaces Festo 36494
  • Replaces Festo EB-165-125
  • Replaces Festo EB165125
  • Replaces Festo EB 165 125
  • Replaces Contitech FD 70-13
  • Replaces Contitech FD 7013
  • Replaces Contitech FD 70 13
AIRSUSTECH Air Spring Structure
  1. Rubber component formed by vulcanization of cord layer, inner and outer rubber layers or steel wire ring to form a flexible body, achieving elastic function through air compressibility. Commonly known as air springs, rubber airbags, or airbags.
  2. Assembled with rubber air spring, base, and mat to form a sealed cavity.
  3. Classified into three categories by shape: capsules, film, and sleeves. Sealing structures include pressure self-forming, flange clamping, hoop sealing, and mixing.
  4. Load primarily carried by cord layer (typically 2 layers, 4 for special requirements). Inner rubber provides sealing while outer rubber offers additional protection.
Compatible Festo Air Spring Models
Type Size Stroke [mm] Part No. Type
Single bellows cylinder 80 20 2748903 EB-80-20
145 60 36486 EB-145-60
165 65 36486 EB-165-65
215 80 36487 EB-215-80
250 85 36489 EB-250-85
385 115 193789 EB-385-115
Double bellows cylinder 80 45 2748904 EB-80-45
145 100 36490 EB-145-100
165 125 36491 EB-165-125
215 155 36492 EB-512-155
250 185 36493 EB-250-185
385 230 193791 EB-385-230

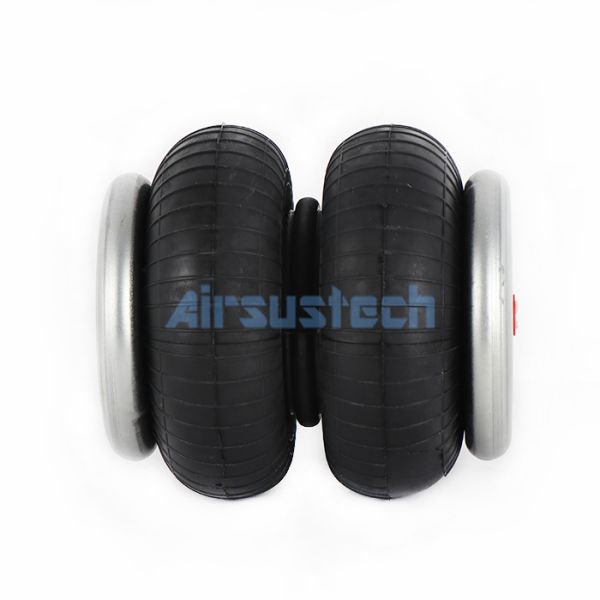

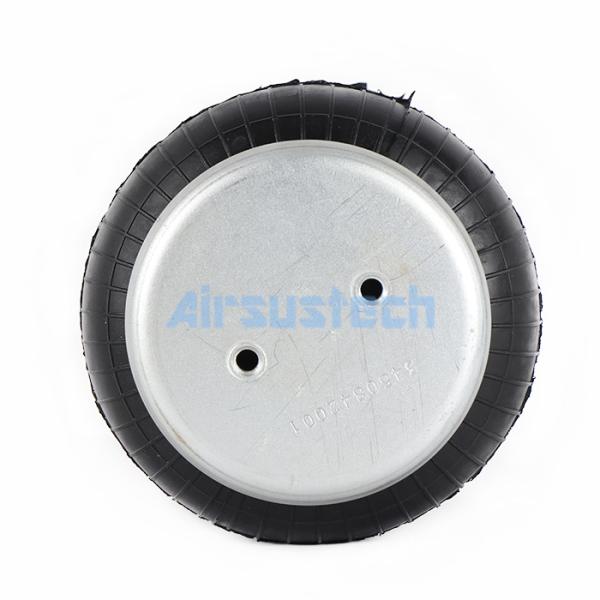

Product Images
Industrial Rubber Air Spring Festo 36494 G1/4 M8 for Food Processing Equipment Industrial Rubber Air Spring Festo 36494 G1/4 M8 for Food Processing Equipment
Manufacturing Facility
Industrial Rubber Air Spring Festo 36494 G1/4 M8 for Food Processing Equipment Industrial Rubber Air Spring Festo 36494 G1/4 M8 for Food Processing Equipment Industrial Rubber Air Spring Festo 36494 G1/4 M8 for Food Processing Equipment
