Specifications
Model Number :
2B6978
Cross :
Firestone W01-358-7230
Payment Terms :
T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Temperature Range :
-40°F...158°F
Price :
Negotiable
Manufacturer Warranty :
One Year
Supply Ability :
1000 PCS/Week
Condition :
100% New
Certification :
ISO/TS16949:2009
PCD :
ø596 MM
MOQ :
1 Piece
Delivery Time :
3-8 Working Days
Stroke :
240 MM
Bellows Type :
Double Convoluted
Place of Origin :
Guangzhou, China
Type of Goods :
Flange Connection Air Spring
Packaging Details :
Strong Carton Box or as Customers Requirement
Compatibility :
Universal
Brand Name :
AIRSUSTECH
Nominal Diameter :
ø580 MM
Description

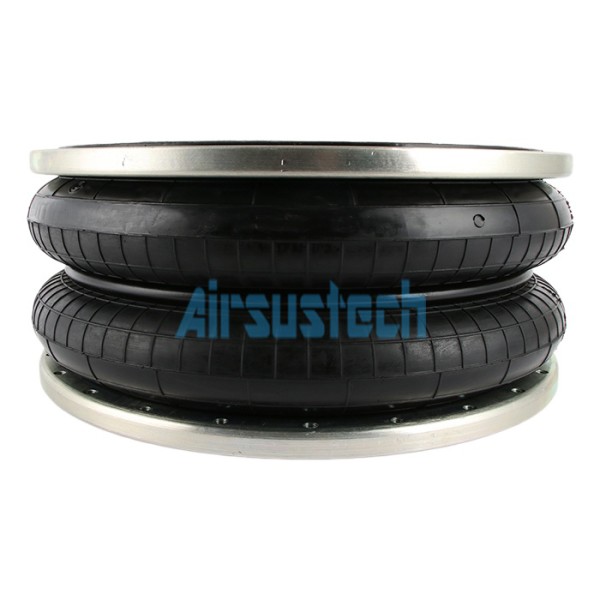

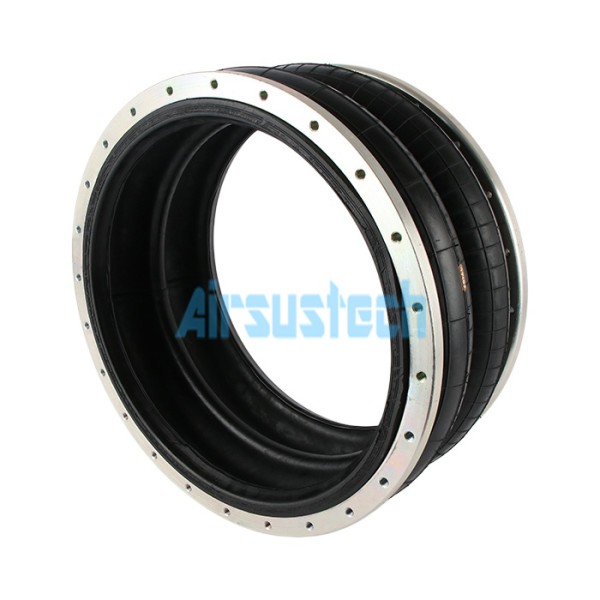

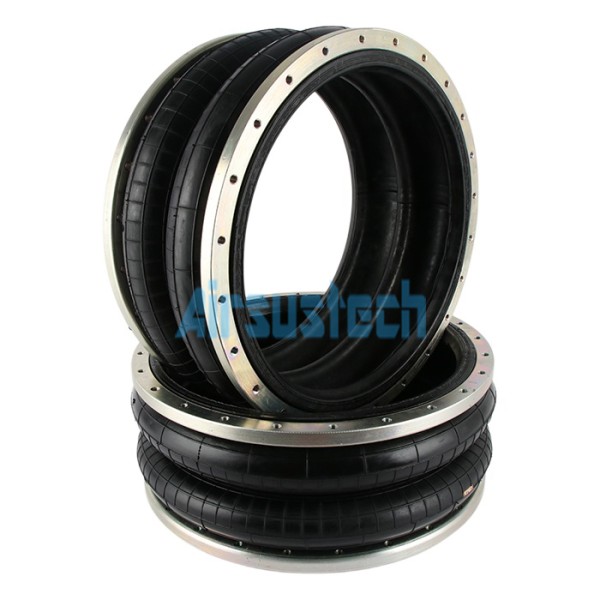

W013587230 Firestone Aluminum Bead Rings Pneumatic Air Spring
AIRSUSTECH 2B6978 Firestone Style 215 Two Ply High Strength Bellows with ribbed neck aluminum bead rings featuring equal spacing and 1 7/8" bolts, nuts, and washers.
Product Specifications
Nominal diameter ø580 mm
Minimum height 90 mm
Maximum height 330 mm
Full stroke 240 mm
Center distance between screws ø596 mm
Flange diameter ø640 mm
Screws holes specifications 32-M10
Design height 262 mm
Natural outer diameter ø680 mm
Material Rubber and steel
OEM Reference Numbers
Ribbed neck aluminum bead rings (equal spacing), 1 7/8" bolts, nuts, washers:
W01-358-7230, W013587230, W01 358 7230, WO1-358-7230, WO13587230, WO1 358 7230
Technical Performance Data
Dynamic Characteristics at 10.5" Design Height
Volume @ 100 PSIG = 5094 in³
Gage Pressure (PSIG) LOAD (lbs.) Spring Rate (lbs./in.) CPM HZ
40 15,840 3,858 93 1.54
60 24,140 5,370 88 1.47
80 32,550 6,857 86 1.44
100 40,980 8,203 84 1.4
Force Table
Assembly Height (in.) Volume @ 100 PSIG (in³) Pounds Force
@ 20 PSIG @ 40 PSIG @ 60 PSIG @ 80 PSIG @ 100 PSIG
12 5701 6520 13310 20720 28410 36100
10 4882 8170 16480 25050 33720 42350
8 3964 9120 18460 27920 37570 47010
6 2973 9910 19940 30070 40430 51100
4 1907 10790 21290 31970 42980 54390
Technical Support & Services
  • Expert troubleshooting assistance for technical issues
  • Guidance on proper installation and maintenance procedures
  • Comprehensive product documentation and technical specifications
  • Product training for customers and service technicians
  • Warranty and repair services with replacement parts
  • Customer support for urgent technical needs
Product Images
W013587230 Firestone Aluminum Bead Rings Pneumatic Air Spring AIRSUSTECH 2B6978 W013587230 Firestone Aluminum Bead Rings Pneumatic Air Spring AIRSUSTECH 2B6978 W013587230 Firestone Aluminum Bead Rings Pneumatic Air Spring AIRSUSTECH 2B6978 W013587230 Firestone Aluminum Bead Rings Pneumatic Air Spring AIRSUSTECH 2B6978
