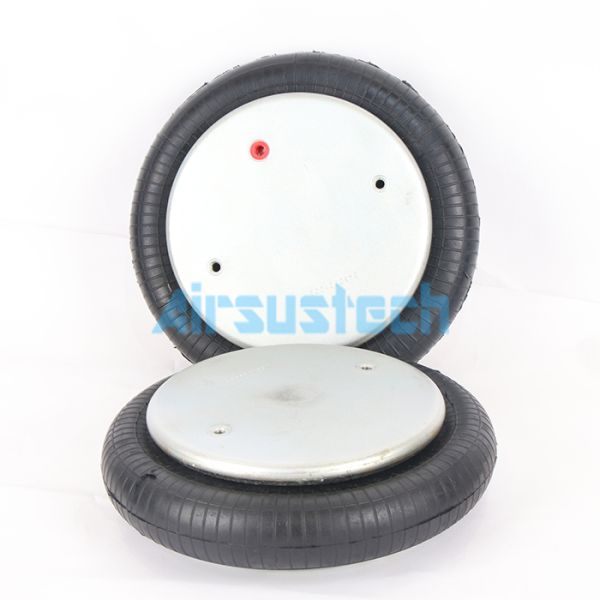

Universal Single Convoluted Rubber Bellows Holland Neway 90557226 Pneumatic Air Bag
Universal Single Convoluted Rubber Bellows Holland Neway 90557226 Pneumatic Air Bag
Universal Single Convoluted Rubber Bellows Holland Neway 90557226 Pneumatic Air Bag
Universal Single Convoluted Rubber Bellows Holland Neway 90557226 Pneumatic Air Bag
Universal Single Convoluted Rubber Bellows Holland Neway 90557226 Pneumatic Air Bag
Universal Single Convoluted Rubber Bellows Holland Neway 90557226 Pneumatic Air Bag
Universal Single Convoluted Rubber Bellows Holland Neway 90557226 Pneumatic Air Bag
Universal Single Convoluted Rubber Bellows Holland Neway 90557226 Pneumatic Air Bag
Specifications
Brand Name :
AIRSUSTECH
Model Number :
1B5330
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal or Others
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Manufacturer :
AIRSUSTECH
Part Number :
1B5330
Working Stroke :
55 MM to 160 MM
Firestone :
W01-358-7008
Contitech :
FS 330-11 474
Air Connection :
1/4NPTF
Quality :
100% Tested
Ships To :
Worldwide
Description

Universal Single Convoluted Rubber Bellows Holland Neway 90557226 Pneumatic Air Bag

1B5330 Specification and Technical Data Sheet

Body Dia.[Max]: 325 mm
Temperature Range : -40℃+70℃
Air Inlet Type: Imperial
Pressure [Max]: 0-8 bar
Height [Max]: 160 mm
Height [Min]: 55 mm
Air Inlet: 1/4 NPTF
Nut/Blind Nuts: 2×3/8-16UNC
Center to Center Distance: 157.5 mm
Center Distance Air Hole Betweeen Screw: 2×3/8-16UNC
Cover Plate Diameter: 231 mm

Pressure P [bar] 3 4 5 6 7 8 Vol. V[l]
Force (Load) [kN] 10.7 14.2 17.8 21.8 25.4 29 6.8
Spring Rate [N/cm] 2645 3290 3935 4580 5225 5870
Natural Frequency [Hz] 2.5 2.4 2.4 2.3 2.3 2.3

Pressure p [bar] 2 4 5 6 7 8 Vol.[l]
Height H [mm] 130 10.7 14.2 17.8 21.8 25.4 29 7
120 11.9 15.7 19.6 23.8 27.8 31.8 6.3
110 12.7 16.9 21.1 25.8 30.1 34.4 5.8
100 13.6 18.1 22.7 27.6 32.1 36.7 5.6
90 14.4 19.2 24.0 29.1 34.0 38.9 5.3
80 15.0 20.2 25.2 30.5 35.5 40.6 4.9
70 15.5 20.9 26.2 31.6 36.9 42.1 4.3
60 16.0 21.6 27.1 32.6 38.0 43.3 3.9

OEM Manufacturer

Holland (Neway) OEM Manufacturer 90557226

Firestone OEM Manufacturer W01-358-7008

Firestone OEM Manufacturer W013587008

Firestone OEM Manufacturer W01 358 7008

Firestone OEM Manufacturer WO1-358-7008

Firestone OEM Manufacturer WO13587008

Firestone OEM Manufacturer WO1 358 7008

Contitech OEM Manufacturer FS 330-11 474

Contitech OEM Manufacturer FS 33011 474

Contitech OEM Manufacturer FS 330 11 474

Contitech OEM Manufacturer FS330-11 474

Contitech OEM Manufacturer FS33011 474

Contitech OEM Manufacturer FS330 11 474
Goodyear OEM Manufacturer 1B12-300

Goodyear OEM Manufacturer 1B12300

Goodyear OEM Manufacturer 1B12 300

Goodyear OEM Manufacturer 1B12-313

Goodyear OEM Manufacturer 1B12313

Goodyear OEM Manufacturer 1B12 313
Triangle OEM Manufacturer 6374 4474

Applications of AIRSUSTECH Air Bags

  • Short stroke mechanical linkage
  • Hot foll stamping press
  • Automation technology
  • Conveyor systems
  • Agricultural machinery
  • Food industry
  • Paper and textile equipment
  • Pantograph drives
  • Sawmill machinery
  • Punch and forming presses
  • Bellow paper machine equipment
  • Paper machine equipment actuators
  • Rubber air spring punch
  • Rubber air cushion punch
  • Web tensioning device
