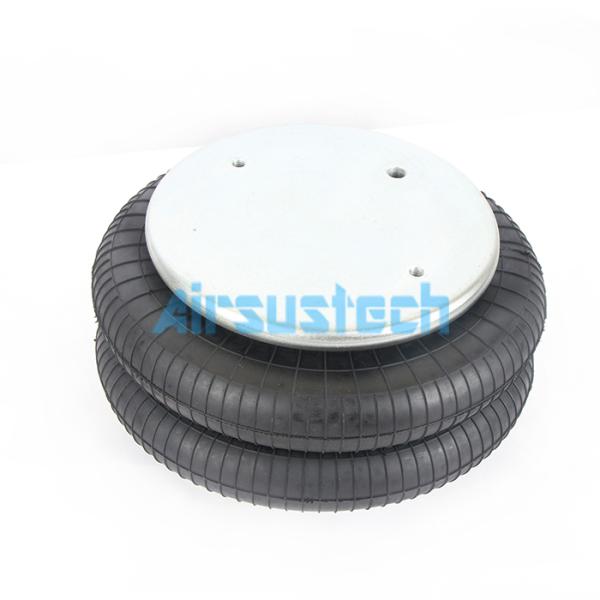

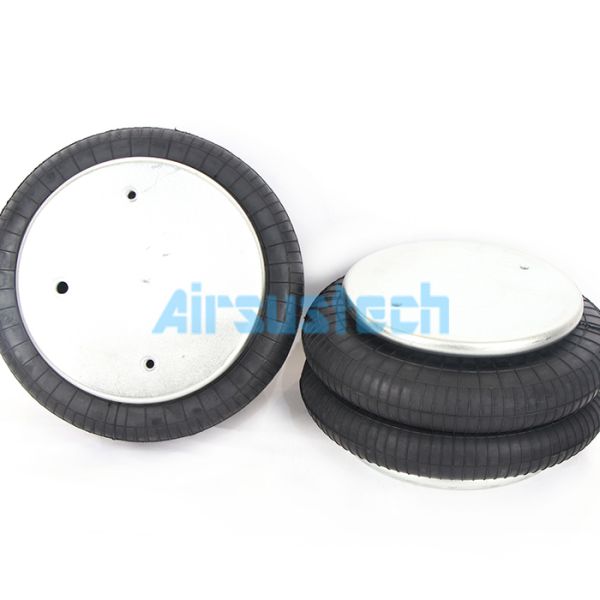

Rubber Air Spring from Guangzhou Triangle 6316 4363 Double Convoluted Air Bag

2B6330 Detailed Datas

Body Dia.[Max]: 325 mm
Temperature Range : -40℃+70℃
Air Inlet Type: Imperial
Stroke Length [Max]: 224 mm
Pressure [Max]: 0-8 bar
Height [Max]: 305 mm
Height [Min]: 81 mm
Air Inlet: 1/4 NPTF
Nut/Blind Nuts: 4×3/8-16UNC
Center to Center Distance: 157.5 mm
Center Distance Air Hole Betweeen Screw: 4×3/8-16UNC
Cover Plate Diameter: 231 mm

Technical Data Sheet

OEM Cross References

Firestone W01-358-7180, W01-358-7122

Firestone W013587180, W013587122

Firestone W01 358 7180, W01 358 7122

Firestone WO1-358-7180, WO1-358-7122

Firestone WO13587180, WO13587122

Firestone WO1 358 7180, WO1 358 7122

Contitech FD 330-22 363

Contitech FD 33022 363

Contitech FD 330 22 363

Contitech FD330-22 363

Contitech FD33022 363

Contitech FD330 22 363
Goodyear 2B12-425, 2B12-311

Goodyear 2B12425, 2B12311

Goodyear 2B12 425, 2B12 311

Goodyear 2B 12-425, 2B 12-311

Goodyear 2B 12425, 2B 12311

Goodyear 2B 12 425, 2B 12 311

Triangle 6316, 4363
Airkraft 115061, 3B-356
Vibracoustic VSP2B22R7180
EI Ride 8030190
Leland Sc2075
Navistar 1685179C1
Hendrickson 1VA1816
Ridewell 1003587180C
SAF Holland 57007180
Watson & Chalinl AS0154 1G/01881F
Peerless 0550 00001

What Operational Considerations are There?

1. During design, it is important to note that thrust is not constant—it decreases with increasing bellows height. This is because the effective area of ​​the bellows itself changes with stroke. Manufacturers provide charts showing the force generated for changes in height or stroke at various operating pressures.
2. Of course, the bellows must not be inflated prior to installation, and the end stops must be designed to prevent operation beyond the recommended minimum and maximum heights. If disassembly is necessary, the bellows must be completely deflated before beginning disassembly.
3. Although the bellows material is robust and durable under normal use, it should not be exposed to continuous contact with hydraulic fluids, lubricants, solvents, metal shavings, and welding sparks.
