Specifications
Brand Name :
AIRSUSTECH
Model Number :
3H520312
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal or Others
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Brand :
AIRSUSTECH
Operating Temperature :
-40℃+70℃
Warranty Special :
One Year
Firestone :
W01-358-0987
Bellows Type :
Tle Convoluted
Operation :
Flange Connection
Maximum Height :
483 MM
Description

Aluminum Bead Ring Air Spring W01-358-7276 Firestone Industrial Rubber Air Bellows

Product Introduction

Flange connection air springs utilize the compression and expansion of a rubber bladder to absorb shock and vibration. When a load is applied, the internal air pressure adjusts to the weight, allowing the air spring to maintain a stable height and effectively isolate vibrations from external sources. Its design features sealed end plates and requires no additional components for easy installation. This construction provides excellent shock and impact absorption for increased comfort and safety. These air springs are ideal for use in a wide variety of machinery and vehicles, offering reliable performance in a wide range of applications.

Product Dimensions

Dimensions - Min. Height: 114 mm
Dimensions - Max. Height: 483 mm
Dimensions - Working Stroke: 343 mm
Dimensions - Flange Width: 517 mm
Dimensions - Center to Center Distance: 482 mm
Screw Type: 24-M10×15 mm
Material: natural rubber and aluminum bead rings

OEM Cross References

Ribbed neck aluminum bead rings (equal spacing), 45 mm bolts, nuts, washers

W01-M58-6983, W01M586983, W01 M58 6983

WO1-M58-6983, WO1M586983, WO1 M58 6983
Rolled plate assembly, 1/2 blind nuts, 3/4 NPT

W01-358-0987, W013580987, W01 358 0987

WO1-358-0987, WO13580987, WO1 358 0987
Rubber bellows only

W01-358-7276, W013587276, W01 358 7276

WO1-358-7276, WO13587276, WO1 358 7276
Ribbed neck aluminum bead rings (equal spacing), 45 mm bolts, nuts, washers

W01-M58-6967, W01M586967, W01 M58 6967

WO1-M58-6967, WO1M586967, WO1 M58 6967
Rubber bellows only

W01-358-1002, W013581002, W01 358 1002

WO1-358-1002, WO13581002, WO1 358 1002

What Are The Applications of Flange Connection Rubber Air Springs?

  • Three-dimensional vibration tables (air bladders)
  • Rubber vibration tables (air cushions)
  • Roller friction brake machines (air springs)
  • Conveyors (air pads)
  • Straightening machines (air springs)
  • Vehicle air suspension systems
  • Gate valve actuator air springs
  • Forming presses (air bladders)
  • Cable tensioners (airbags)
  • Pipe threading machines (air pads)
  • Tobacco machinery (airbags)
  • Analytical instruments (airbags)
  • Secondary lifting equipment (air bladders)
  • Missile transport equipment (air bladders)

We Have Other F Series Rubber Air Suspensions

1H086060 2H130142 3H200206
1H120060 2H156130 3H250260
1H150076 2H160166 3H255230
1H188102-A 2H168132 3H255322
1H215120 2H200142 3H310306
1H235118 2H220200 3H330306
1H235150 2H230214 3H360306
1H260135 2H235152 3H380316
1H260126 2H235210 3H400312
1H320124 2H252163 3H520312
2H260230 3H580306
2H280214 3H630376
2H290265 3H680376
2H300170
2H310214

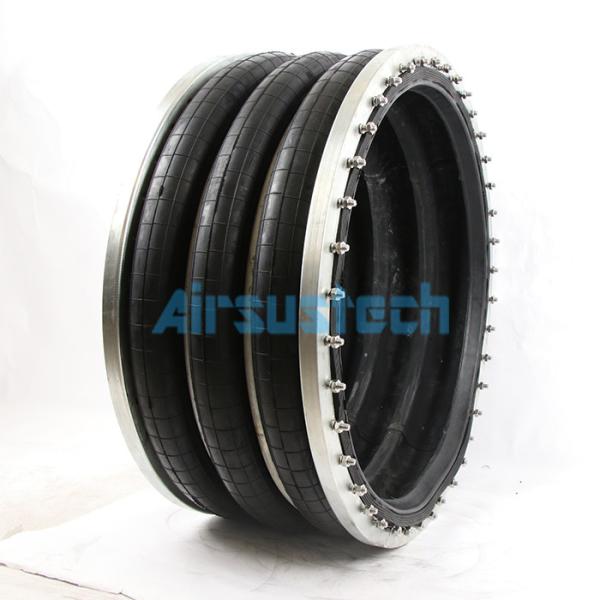

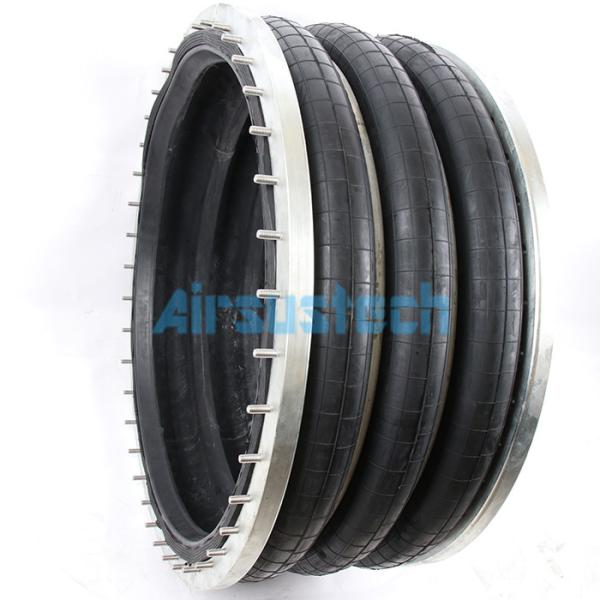

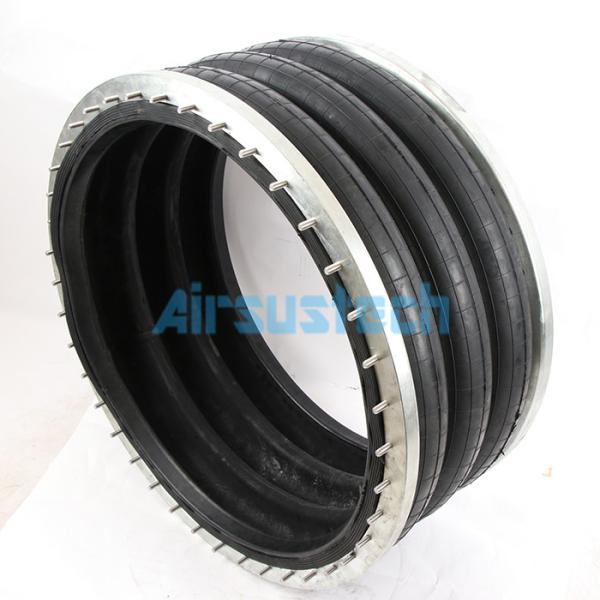

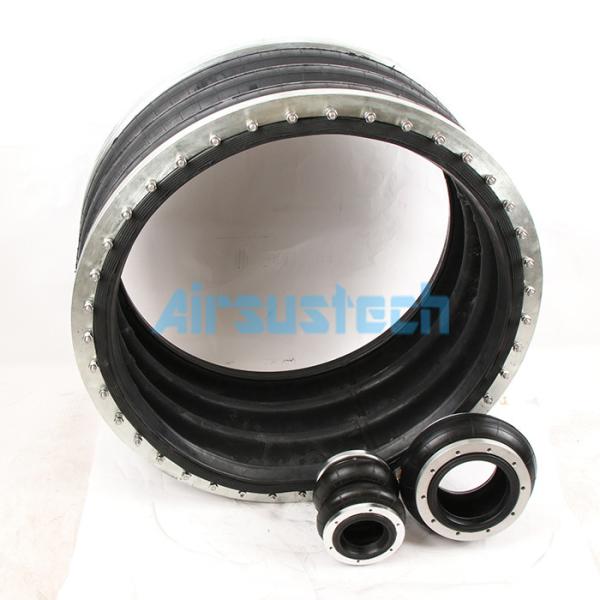

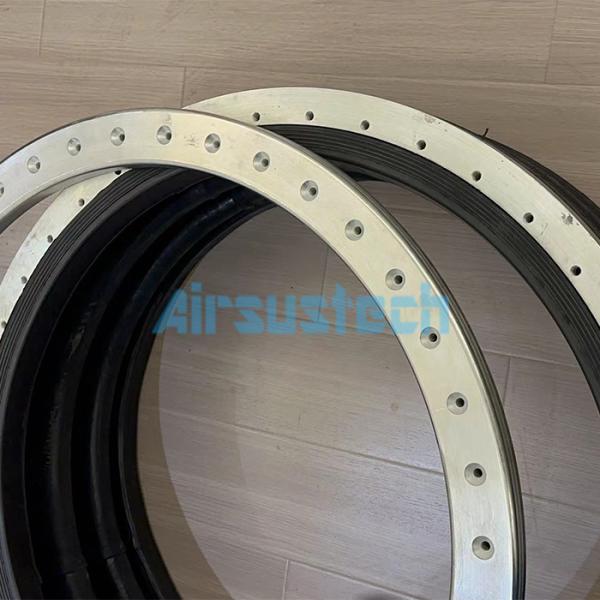

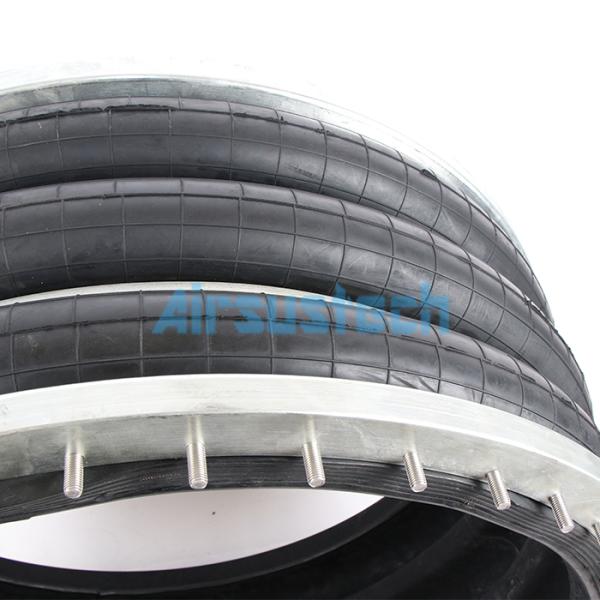

Product Images
