Specifications
Brand Name :
AIRSUSTECH
Model Number :
3B7286
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 pieces
Price :
Negotiable
Payment Terms :
T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000pcs/week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Manufacturer :
AIRSUSTECH
Total Stroke :
343 MM
Gas Hole :
3/4 NPT
Material :
Rubber And Aluminum
Quality Assurance :
12 Months
Suspension System :
Air Spring Suspension
Operation :
Gas-Filled
Description

Buy W01-358-7286 Firestone Air Spring Assembly Total Stroke 343MM Pneumatic Airbag

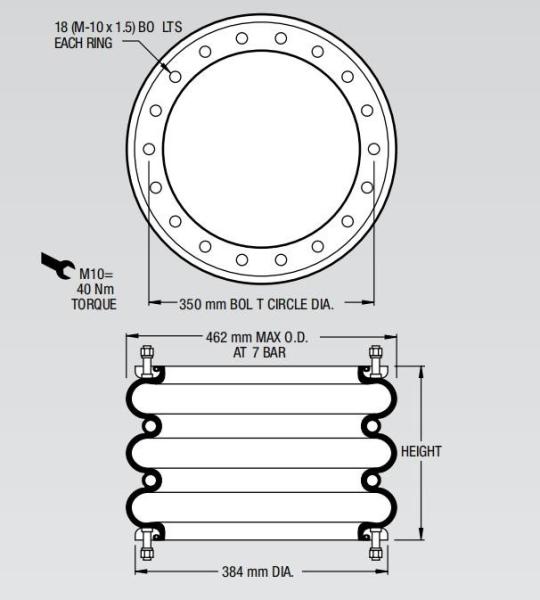

Product Dimensions


Dimensions - Min. Height: 114 MM

Dimensions - Max. Height: 457 MM

Dimensions - Flange Diameter: 384 MM

Dimensions - Center Distance: 350 MM

Dimensions - Max. Outer Diameter: 462 MM

Screw Type: 18(M-10×1.5)



OEM Cross References


Style 312 Ribbed neck aluminum bead rings (equal spacing), 45mm bolts, nuts, wahsers

W01-M58-7530, W01M587530, W01 M58 7530

WO1-M58-7530, WO1M587530, WO1 M58 7530
Rolled plate assembly 1/2 blind nuts, 3/4NPT

W01-358-7286, W013587286, W01 358 7286

WO1-358-7286, WO13587286, WO1 358 7286
Rubber bellows only

W01-358-7914, W013587914, W01 358 7914

WO1-358-7914, WO13587914, WO1 358 7914
Style 314 Aluminum ribbed neck bead rings (equal spacing), 45 mm bolts, nuts, washers

W01-M58-6981, W01M586981, W01 M58 6981

WO1-M58-6981, WO1M586981, WO1 M58 6981
Rolled plate assebly, 1/2 blind nuts, 3/4NPT

W01-358-80090, W0135880090, W01 358 80090

WO1-358-80090, WO135880090, WO1 358 80090
Rubber bellows only

W01-358-7926, W013587926, W01 358 7926

WO1-358-7926, WO13587926, WO1 358 7926



Installation Steps


1.Prepare the Mounting Area:
Ensure the flange surface is clean, flat, and free of debris.
Verify bolt holes align with the air spring’s flange (use a template if available).


2.Connect Air Supply:
Use compatible fittings (e.g., G3/4 to NPT adapter if needed) and apply thread sealant (Teflon tape or liquid sealant) to prevent leaks.
Install a pressure regulator to maintain ≤0.7 MPa (to extend lifespan).


3.Inflation & Testing:
Slowly inflate the airbag to 0.3 MPa and check for leaks. Gradually increase to the operating pressure (max 0.8 MPa).
Test the stroke range (343 mm) to ensure smooth movement without binding.



How to Order?


Step 1 Please tell us what model and quantity you need
Step 2 Then we will make a PI for you to confirm the order details
Step 3 When we confirmed everything, you can arrange the payment
Step 4 Finally we deliver the goods within the stipulated time.

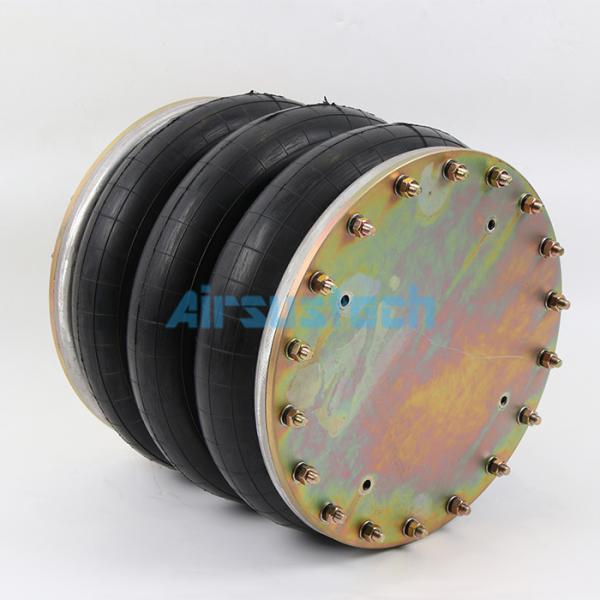

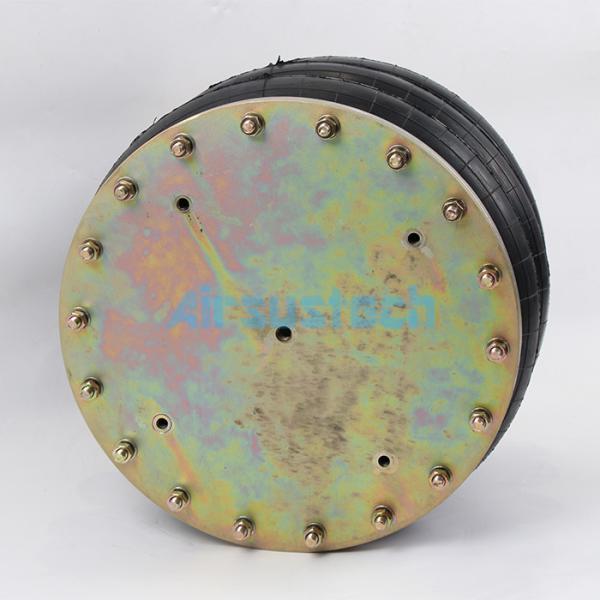

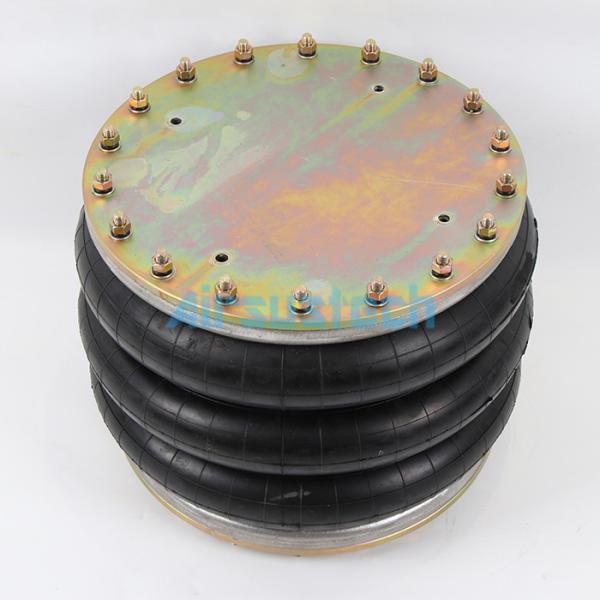

The Real Pictures

Buy W01-358-7286 Firestone Air Spring Assembly Total Stroke 343MM Pneumatic Airbag
Buy W01-358-7286 Firestone Air Spring Assembly Total Stroke 343MM Pneumatic Airbag

Factory Workshop
Buy W01-358-7286 Firestone Air Spring Assembly Total Stroke 343MM Pneumatic AirbagBuy W01-358-7286 Firestone Air Spring Assembly Total Stroke 343MM Pneumatic AirbagBuy W01-358-7286 Firestone Air Spring Assembly Total Stroke 343MM Pneumatic Airbag
