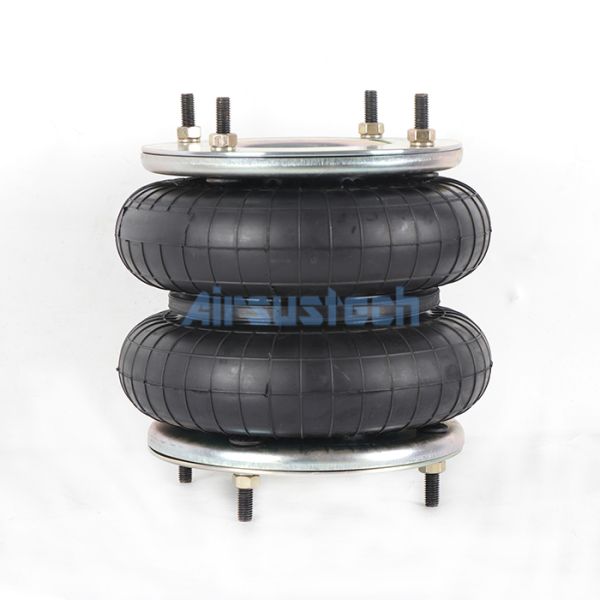

M/31102 Norgren Single Acting Air Bellows 10X2 Air Actuator Male Mounting Stud
M/31102 Norgren Single Acting Air Bellows 10X2 Air Actuator Male Mounting Stud
M/31102 Norgren Single Acting Air Bellows 10X2 Air Actuator Male Mounting Stud
M/31102 Norgren Single Acting Air Bellows 10X2 Air Actuator Male Mounting Stud
M/31102 Norgren Single Acting Air Bellows 10X2 Air Actuator Male Mounting Stud
M/31102 Norgren Single Acting Air Bellows 10X2 Air Actuator Male Mounting Stud
M/31102 Norgren Single Acting Air Bellows 10X2 Air Actuator Male Mounting Stud
M/31102 Norgren Single Acting Air Bellows 10X2 Air Actuator Male Mounting Stud
Specifications
Brand Name :
AIRSUSTECH
Model Number :
2B10X2T
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T,,Paypal or Others
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Manufacturer :
AIRSUSTECH
Product Number :
2B10X2T
Center Distance :
181 MM
Static Height :
190 MM
Bellows Type :
Double Convoluted
Firestone :
W01-R58-4058
Compatibility :
Universal
Sample :
Available
Description
M/31102 Norgren Single Acting Air Bellows 10X2 Air Actuator Male Mounting Stud
High-performance single acting air bellows actuator designed for industrial applications with male mounting stud configuration.
Product Specifications
Quick Details
Model No. 2B10*2T
Other No. 10''*2
Packing Details Cartons
Operation Gas-filled
Temperature Range -40℃ to +70℃
Quality 100% Tested
Material Rubber
Condition Brand New
Technical Specifications
Operating Pressure 3 bar...8 bar
Port Size G1/2
Nominal Diameter 250 mm
Stroke Length 225 mm
Material Rubber
Height 190 mm
Plate Diameter 210 mm
Screw Type 4-M10
Part Interchanges
Norgren
  • Part Number M/31102
  • Part Number M31102
  • Part Number M 31102
Firestone
  • Air Bag W01-R58-4058
  • Air Bag W01R584058
  • Air Bag W01 R58 4058
Dunlop
  • Pneuride 10''X2
  • Pneuride 10'X2
  • Pneuride 10X2
  • PNP 305450112
  • PNP305450112
  • Springride SP1538
  • Springride SP 1538
  • Springride SP 15 38
Continental Contitech
  • FD 210-22 DS
  • FD 21022 DS
  • FD 210 22 DS
Other Manufacturers
  • Airbag Man DB1028
  • Parker Air Spring 9109021
Applications of Rubber Air Springs
Hoist Applications
Rubber air springs serve as superior lifting elements in hoists, replacing traditional cylinders and hydraulic systems. They offer maintenance-free operation, extended service life, and simplified replacement procedures while eliminating issues of complexity, weight, and leakage common in conventional systems.
Vibration Isolation Systems
With high-frequency vibration isolation, sound insulation, and low natural vibration frequency characteristics, rubber air springs provide exceptional vibration control for vibrating screens, luxury vehicle seats, and precision equipment bases.
Additional Applications
Rubber air springs function as effective vibration damping bases to protect sensitive equipment during transport, including rocket launcher systems. Their lightweight design and ease of use make them practical for field vehicle and equipment maintenance applications.
Related Air Shock Suspension Models
Model Cylinder Air Inlet Nominal * Convolutions Stroke (mm) Min Height (mm) Max Working Height (mm) Max Height (mm) Force at 6 bar [N]
M/31061 6'' G1/2 6''X1 55 50 95 105 140
M/31062 6'' G1/2 6''X2 115 75 170 190 220
M/31081 8'' G1/2 8''X1 75 50 115 130 220
M/31082 8'' G1/2 8''X2 175 75 220 250 350
M/31101 10'' G1/2 10''X1 100 50 135 150 150
M/31102 10'' G1/2 10''X2 225 75 245 300 150
M/31103 10'' G1/2 10''X3 330 100 350 430 250
M/31121 12'' G1/2 12''X1 100 50 135 150 200
M/31122 12'' G1/2 12''X2 225 75 245 300 250
M/31123 12'' G1/2 12X3 330 100 350 430 250
M/31141 14 1/2'' G1/2 14 1/2''X1 100 50 135 150 200
M/31142 14 1/2'' G1/2 14 1/2''X2 265 75 290 340 280
M/31143 14 1/2'' G1/2 14 1/2''X3 380 100 420 480 330
M/31162 16'' G1/2 16X2 315 75 350 390 250
M/31163 16'' G1/2 16X3 430 120 475 550 100
M/32212 21'' * 21X2 251 84 284 335 311
M/32262 26'' * 26X2 400 100 425 500 400
