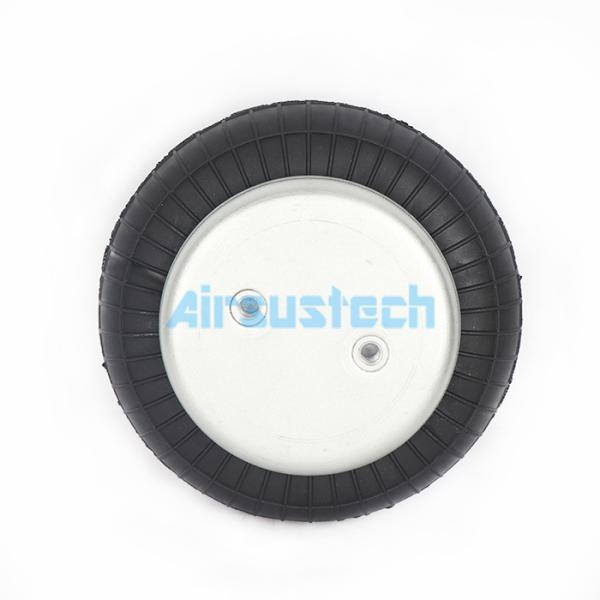

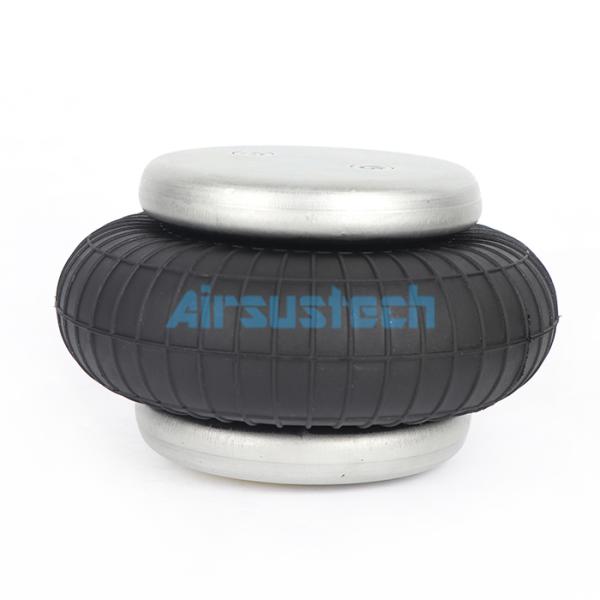

Firestone Style 131 Rubber Air Spring W01-M58-6155 Firestone Industrial Air Bag
Firestone Style 131 Rubber Air Spring W01-M58-6155 Firestone Industrial Air Bag
Firestone Style 131 Rubber Air Spring W01-M58-6155 Firestone Industrial Air Bag
Firestone Style 131 Rubber Air Spring W01-M58-6155 Firestone Industrial Air Bag
Firestone Style 131 Rubber Air Spring W01-M58-6155 Firestone Industrial Air Bag
Firestone Style 131 Rubber Air Spring W01-M58-6155 Firestone Industrial Air Bag
Firestone Style 131 Rubber Air Spring W01-M58-6155 Firestone Industrial Air Bag
Firestone Style 131 Rubber Air Spring W01-M58-6155 Firestone Industrial Air Bag
Specifications
Bellow Type :
Single Convoluted
Model Number :
1B7070
Plate Diameter :
114 MM
Brand Name :
AIRSUSTECH
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 pieces
Price :
Negotiable
Payment Terms :
T/T,,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000pcs/week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Festo :
EB-165-65
Air Hole :
1/4 BSP
After-sales Service :
12 Months
Brand :
AIRSUSTECH
Suspension System :
Air Spring Suspension
Description

Firestone Style 131 Rubber Air Spring W01-M58-6155 Firestone Industrial Air Bag

1B7070 Air Spring Standards

Operating Temperature: -40℃+70℃
Working Pressure: 0 bar... 8 bar
Air Hole: 1/4 BSP
Maximum Diameter: 165 mm
Number of Convolutions: one
Working Stroke: 63 mm
Operation: gas filled
Materials - Body: natural rubber and steel
Dimensions - Min. Height: 51 mm
Dimensions - Max. Height: 114 mm
Country of Origin: China

OEM Original Manufacturer

Firestone Air Spring: W01-M58-6155

Firestone Air Spring: W01M586155

Firestone Air Spring: W01 M58 6155

Continental Contitech: FS 70-7

Continental Contitech: FS 707

Continental Contitech: FS 70 7

Phoenix Air Bellow: SP 1B 05

Phoenix Air Bellow: SP 1B05

Phoenix Air Bellow: SP1B05

Bos-ch Air Bag: 8224 19002

Bos-ch Air Bag: 822419002

Festo Air Suspension: EB-165-65

Festo Air Suspension: EB16565

Festo Air Suspension: EB 165 65

Weforma Rubber Air Spring: WBE 200-E1

Weforma Rubber Air Spring: WBE 200E1

Weforma Rubber Air Spring: WBE 200 E1

Critical Safety Guidelines for Air Spring Applications​​


​​1. Height Limitations​​

  • ​​DO NOT exceed​​ maximum extension height
  • ​​DO NOT compress​​ below minimum height specification

Noted: Prevents premature fatigue and extends service life

​​2. Pressure Restrictions​​

  • ​​Maximum operating pressure:​​ 0.7 MPa (101.5 PSI)
  • ​​Never​​ exceed rated pressure limits

Noted: Avoids structural damage and potential failure

​​3. Proper Installation Alignment​​

  • ​​Never operate​​ in a twisted or misaligned state
  • Ensure correct mounting orientation before use

Noted: Prevents uneven wear and maintains performance

​​4. Additional Best Practices​​

  • Regularly inspect for abrasions, cracks, or deformation
  • Maintain clean air lines and connections
  • Follow manufacturer's load capacity guidelines

FAQ

Q: What will you do for customer's complaint?
A: We will respond quickly to our customers within 24 hours.
Q: How long does it take to get product after placing the order?
A: The delivery time of your ordered product varies as per what you've ordered and the shipping method that you've chosen. The estimated delivery time is mentioned during the checkout process, so be carefree while shopping.
Q: Is it possible to receive a proforma invoice?
A: Yes, we will send you a proforma invoice if you choose for the payment method: ‘Bank Transfer Payment’ at the check out.
You can pay with bank transfer, PayPal or Credit Card after you have received the proforma invoice. We will ship your order out as soon as we have received the payment.

The Related Pictures of 1B7070
Firestone Style 131 Rubber Air Spring W01-M58-6155 Firestone Industrial Air BagFirestone Style 131 Rubber Air Spring W01-M58-6155 Firestone Industrial Air Bag

Factory Workshop
Firestone Style 131 Rubber Air Spring W01-M58-6155 Firestone Industrial Air BagFirestone Style 131 Rubber Air Spring W01-M58-6155 Firestone Industrial Air BagFirestone Style 131 Rubber Air Spring W01-M58-6155 Firestone Industrial Air Bag
