Contitech FD 200-19 320 Double Convolution Air Actuator Bellow Max. Width 251MM
Contitech FD 200-19 320 Double Convolution Air Actuator Bellow Max. Width 251MM
Contitech FD 200-19 320 Double Convolution Air Actuator Bellow Max. Width 251MM
Contitech FD 200-19 320 Double Convolution Air Actuator Bellow Max. Width 251MM
Contitech FD 200-19 320 Double Convolution Air Actuator Bellow Max. Width 251MM
Contitech FD 200-19 320 Double Convolution Air Actuator Bellow Max. Width 251MM
Contitech FD 200-19 320 Double Convolution Air Actuator Bellow Max. Width 251MM
Contitech FD 200-19 320 Double Convolution Air Actuator Bellow Max. Width 251MM
Specifications
Brand Name :
AIRSUSTECH Air Springs
Model Number :
2B6910
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou,China
MOQ :
5
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal or Others
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Product Number :
2B6910
Cross Reference :
Firestone W01-358-6910
Quality Assurance :
12 Months
Air Inlet :
1/4 NPTF
Material :
Rubber and Steel
Bellow Type :
Double Convolutions
Quality :
100 % Tested
Description

Contitech FD 200-19 320 Double Convolution Air Actuator Bellow Max. Width 251MM

Product Description:

The air springs have been used in heavy duty vehicle suspension systems for nearly a century, where they have been able to provide usefulness by taking advantage of the compressed air required for vehicle braking systems. 2B6910 air springs have provided a two-fold advantage over mechanical leaf- or coil-springs. One advantage with air suspension is the extra comfort provided by being able to vary the air pressure inside the spring, which changes the spring rate, and therefore, ride quality. Additionally, because variable control over air pressure adjusts the deck or trailer height, aligning loading docks to the level of the deck is possible when dock plates are unavailable.

Specifications and Detailed Technical Parameters

Specifications

Air Fitting

Operation: Gas-filled

Gas Hole: 1/4 NPTF

Height

MAX. Height: 260 mm

MIN. Height: 75 mm

Stroke Height: 185 mm

Cover Plate

Top Cover Plate Width: 160 mm

Bottom Cover Plate Width: 160 mm

Hole/Stud

Hole/Stud Qty: Two on One Plate

Screw Center Distance: 89 mm

Distance Gas Hole Between Nut: 44.5 mm

Bolts Type: 2X3/8-16UNC

Rubber Bellows

Natural Diameter: 224 mm

Bellow Max. Diameter: 251 mm

Double Convolutions

Technical Parameters

Design Height 8.5
Load (at design height) at: 40 psig (pounds) 990
Load (at design height) at: 60 psig (pounds) 1540
Load (at design height) at: 80 psig (pounds) 2130
Load (at design height) at: 100 psig (pounds) 2720

Cross References:

Contitech

FD 200-19 320, FD 200 19 320

FD20019320, FD 20019 320

FD 200 19320, FD 20019320

 Leland Sc2011
Firestone

W01-358-6910, W01 358 6910

W013586910, WO1-358-6910

WO1 358 6910, WO13586910

 Dayton

3546910
Goodyear

2B9-200/202/216
578423202

 Navistar 554783C1
Triangle 6325/4320 Hendrickson S8768/458433
Taurus KF218-6910 Ridewell 1003586910C
Brake & Wheel M3501 SAF Holland 57006910
Dina A812719/AZ812719 Trailers De 133128
Tuthill 1371 Watson & Chalin AS-0001/AS-0156G

Some Details about 2B6910:

  1. 100% Brand New
  2. Durable and long service life.
  3. Direct replacement for your old or broken one, easy installation.
  4. Built to meet standard specification, strictly follow factory quality control.
  5. Due to the light and screen difference, the item's color may be slightly different from the pictures.

Packaging & Shipping:

Packing Details
1. One piece in a poly bag.1piece in a carton.
2. Mark the product numbers and the QTY outside the carton.
3. As your requirement.

Shipping Details
1. Delivery time: Usually 2-8 working days after receiving the payment.
2. Shipping by Air, by Sea, by Express(DHL,UPS,FEDEX...)
3. Please make sure the address is correct, after the goods are shipped, we will track the logistics information until you receive the goods.

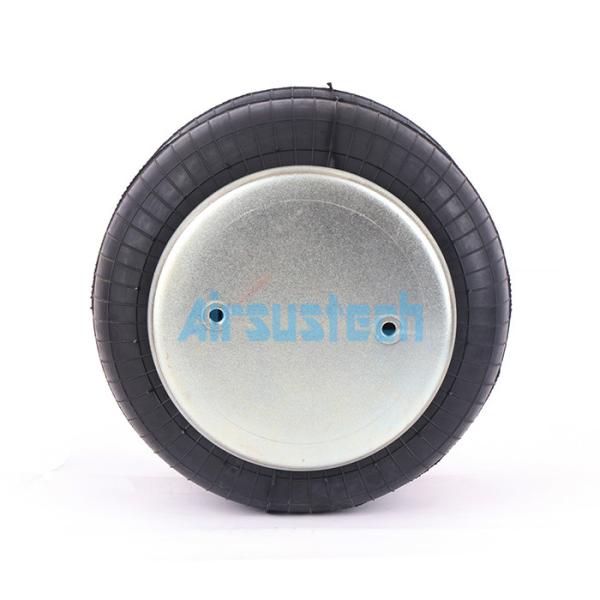

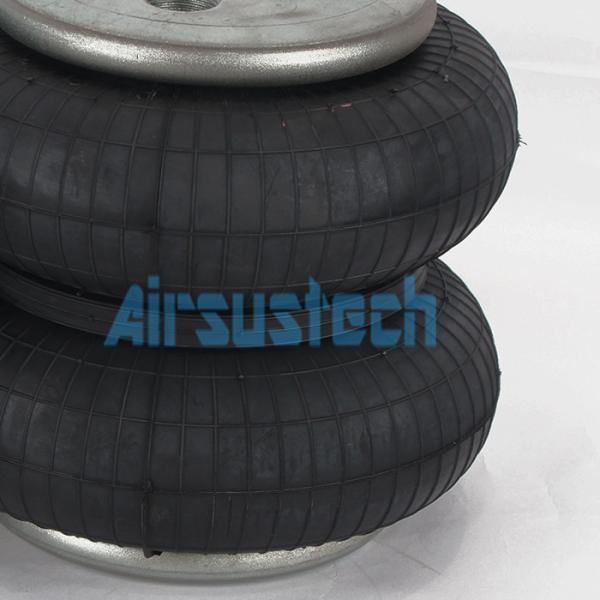

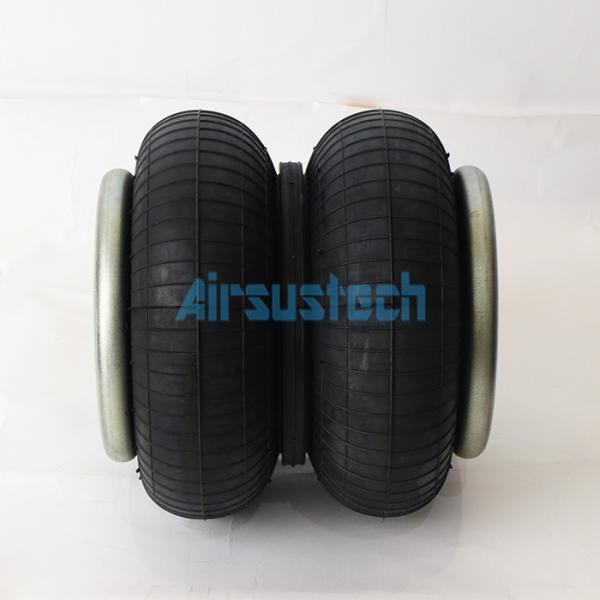

The Related Pictures of 2B6910:

Contitech FD 200-19 320 Double Convolution Air Actuator Bellow Max. Width 251MMContitech FD 200-19 320 Double Convolution Air Actuator Bellow Max. Width 251MM
