Specifications
Brand Name :
AIRSUSTECH
Model Number :
2B6910
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou,China
MOQ :
5
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal or Others
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Structure :
Double Convolutions
Brand :
AIRSUSTECH
Product No. :
2B6910
Cross Reference :
FD 200-19 320
Bellow MAX. Diameter :
251MM
Bolts Type :
3/8-16 UNC
MIN. H. :
75 MM
MAX. H. :
260 MM
Description

Brake & Wheel M3501 Air Spring Suspension Replace Goodyear 2B9-202 Air Bag H. 260MM

Product Description:

The AIRSUSTECH Air Springs are available in single, double and triple convolution types for virtually every conceivable heavy-duty vehicle suspension application. In addition, 2B6910 air spring is a carefully designed rubber/fabric bellows which contains a column of compressed air. The rubber bellows itself does not provide force or support load. This is done by the column of air.

Specifications and Detailed Technical Parameters

2B6910 Specifications

Air Hole
1/4 NPTF
Number of Ply Bellows Double
Minimum Usable Height 75 MM
Max Expanded Height 260 MM
Stroke Height 224 MM
Threaded Hole
2X3/8-16UNC
Top/Bottom Cover Plate Diameter 185 MM
Hole/Stud Qty Two On One Plate
Screw Center Distance 89 MM
Distance Gas Hole Between Nut 44.5 MM
Bellow Max. Diameter 251 MM
Bellow Natural Diameter 224 MM
Top/Bottom Plate Width 160 MM

The Technical Dats Sheet Drawing of 2B6910:

Brake & Wheel M3501 Air Spring Suspension Replace Goodyear 2B9-202 Air Bag H. 260MM

Cross References:

Firestone

W01-358-6910, W01 358 6910

W013586910, WO1-358-6910

WO1 358 6910, WO13586910

 Dayton

3546910
Contitech

FD 200-19 320, FD 200 19 320

FD20019320, FD 20019 320

FD 200 19320, FD 20019320

 Leland

Sc2011
Goodyear

2B9-200/202/216
578423202

 Navistar 554783C1
Triangle 6325/4320 Hendrickson S8768/458433
Taurus KF218-6910 Ridewell 1003586910C
Brake & Wheel M3501 SAF Holland 57006910
Dina A812719/AZ812719 Trailers De 133128
Tuthill 1371 Watson & Chalin AS-0001/AS-0156G

We Have Other Models of The Same Rubber Bellows Number:

Guomat NO. Air Inlet The MAX. Bellows OD. MIN. H. MAX. H. Nuts Type

Top/Bottom Cover

Plate Diameter

 Screw Center Distance Distance Gas Hole Betweeen Screw
2B6910P01 1/4 NPTF 251 mm 75 mm 260 mm 2×3/8-16UNC 160 mm 89 mm 44.5 mm
2B6910-3/4 G3/4 251 mm 75 mm 260 mm 2×M8×1.25 160 mm 89 mm 38 mm
2B6910 1/4 NPTF 251 mm 75 mm 260 mm 2×3/8-16UNC 160 mm 89 mm 44.5 mm
2B6910P02 1/4 BSP 251 mm 75 mm 260 mm 2×M8×1.25 160 mm 89 mm 44.5 mm
2B6910P03 1/4 NPTF 232.5 mm # 240 mm 2×3/8-16UNC 160 mm 89 mm 44 mm
FAQ:
Q1: Is the sample available?
A: Yes, Usually we send the samples by TNT,DHL,FEDEX or UPS.
Q2:What is your warranty term?
A: There is a 12months warranty for our export products has run out from the date of the shipment.
Q3: What is your advantage?
A: (1) High quality - Natural rubber.
(2) Fast delivery - Stock sales.
(3) Best service - 24 hours online.

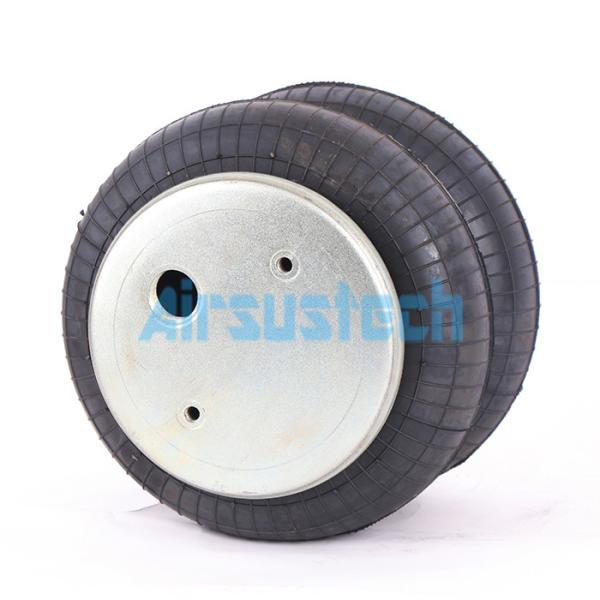

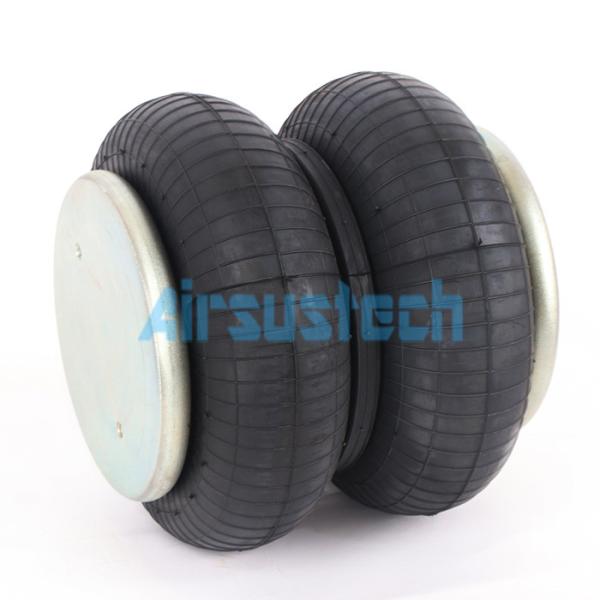

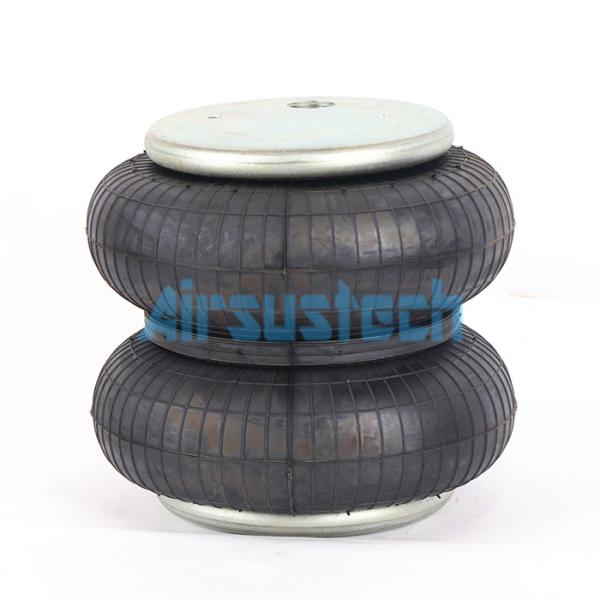

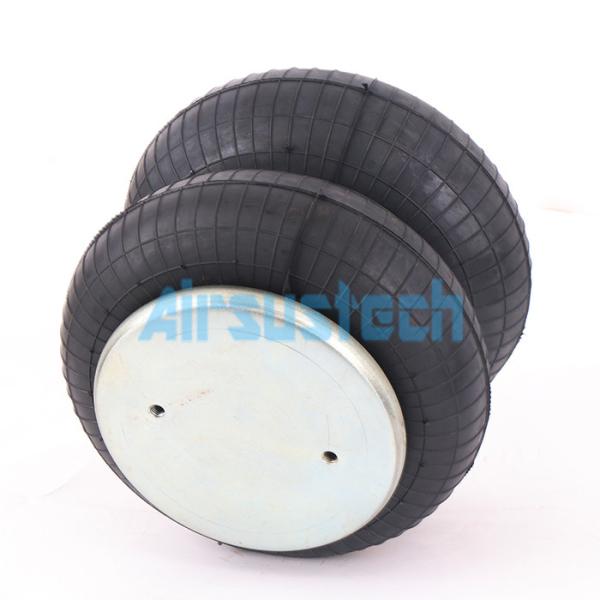

The Related Pictures of 2B6910:
