Contitech Rubber Bellows Only 66501 Industrial Air Spring 8X2 for Reduce Shocks
Contitech Rubber Bellows Only 66501 Industrial Air Spring 8X2 for Reduce Shocks
Contitech Rubber Bellows Only 66501 Industrial Air Spring 8X2 for Reduce Shocks
Contitech Rubber Bellows Only 66501 Industrial Air Spring 8X2 for Reduce Shocks
Contitech Rubber Bellows Only 66501 Industrial Air Spring 8X2 for Reduce Shocks
Contitech Rubber Bellows Only 66501 Industrial Air Spring 8X2 for Reduce Shocks
Contitech Rubber Bellows Only 66501 Industrial Air Spring 8X2 for Reduce Shocks
Contitech Rubber Bellows Only 66501 Industrial Air Spring 8X2 for Reduce Shocks
Specifications
Brand Name :
AIRSUSTECH
Model Number :
8X2
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000 PCS/Week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Warranty :
1 Year
Color :
Black
Type of Goods :
Rubber Air Spring
Cross :
Dunlop VSM 10180
Design Height :
132 MM
Advantages :
Serviceable
Durability :
High
Pressure Rating :
0 Bar to 8 Bar
Description

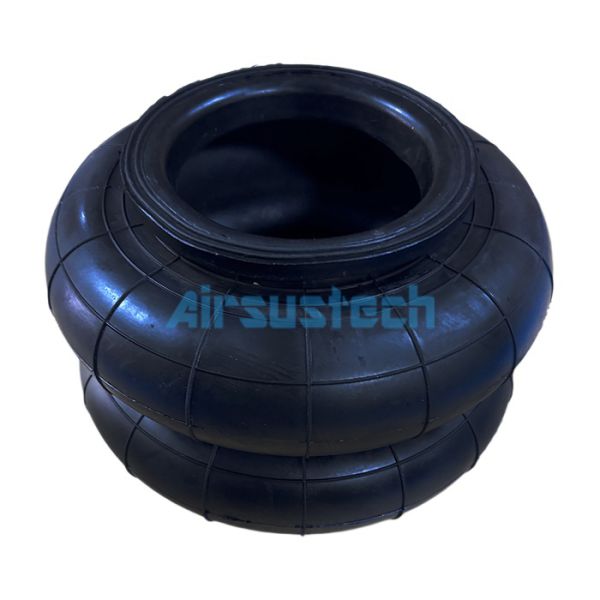

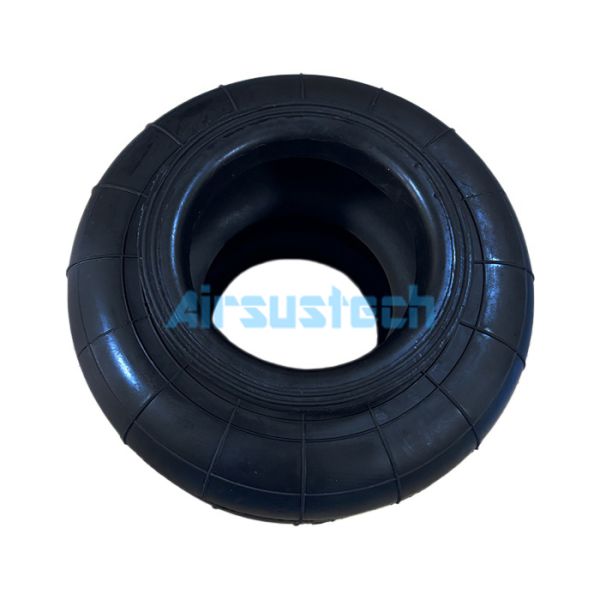

Contitech Rubber Bellows Only 66501 Industrial Air Spring 8X2 for Reduce Shocks
Contitech Rubber Bellows Only 66501 Industrial Air Spring 8X2 for Reduce Shocks
Product Specifications
[1] Design Height: 132 mm
[2] Inner Diameter: 107 mm
[3] Outer Diameter: 130 mm
[4] Rubber Bellow Natural Width: 205 mm
[5] Bellows Type: double convoluted
[6] Quality: 100% tested
[7] Material: rubber
[8] Sample: available
Cross References
Manufacturer Model Number
Contitech 66501
Dunlop 8''X2, 8'X2, 8X2, VSM 10180, VSM10180
Oria 8X2_B, 8X2B, 8X2 B, 8X2
Air Bellows Characteristics
  • Air bellows are the ideal choice for applications requiring short stroke, high thrust single acting actuators.
  • Manufactured from fabric reinforced synthetic rubber in one, two or three convolutions according to stroke and model.
  • They incorporate no reciprocating metal parts and so provide virtually frictionless thrust compared with conventional pneumatic cylinders.
  • All models are single acting only. The return stroke is provided in part by the natural spring action of the bellows but more usually by the load itself.
  • The simplicity of construction provides an extremely long, virtually maintenance-free service life even under arduous conditions.
  • Air bellows are suitable for vibration applications i.e. device feeders at high frequency.
AIRSUSTECH Air Spring Replacements OEM Numbers Quick Chart
AIRSUSTECH DUNLOP ORIA
4.5X1 Air Bellow A 3 1337 00 32 4X1_B
4.5X2 Air Bellow PNP 30728 03 00 4X2_B
4.5X3 Air Bellow A 3 1338 00 33 4X3_B
6X1 Air Bellow PNP 30405 02 00 6X1_B
6X2 Air Bellow VSM 10177 6X2_B
6X3 Air Bellow A 3 1339 00 34 6X3_B
8X1 Air Bellow PNP 30406 02 00 8X1_B
8X2 Air Bellow VSM 10180 8X2_B
8X3 Air Bellow A 3 1440 00 20 8X3_B
10X1 Air Bellow A 2 1407 00 22 10X1_B
10X2 Air Bellow VSM 10176 10X2_B
10X3 Air Bellow A 3 1465 00 26 10X3_B
12X1 Air Bellow PNP 30407 02 00 12X_B
12X2 Air Bellow VSM 10178 12X2_B
12X3 Air Bellow A 3 1466 00 27 12X3_B
12X3 Air Bellow VSM 10132 12X3_B
14.5X1 Air Bellow PNP 30408 02 00 14 1/2''X1_B
14.5X2 Air Bellow VSM 10248 14 1/2''X2_B
14.5X3 Air Bellow A 3 1441 00 21 14 1/2''X3_B
14.5X3 Air Bellow PNP 30625 01 23 14 1/2''X3_B
