S-160-2R Yokohama Japan Punch Air Spring F-160-2 AIRSUSTECH Double Rubber Air Bag
S-160-2R Yokohama Japan Punch Air Spring F-160-2 AIRSUSTECH Double Rubber Air Bag
S-160-2R Yokohama Japan Punch Air Spring F-160-2 AIRSUSTECH Double Rubber Air Bag
S-160-2R Yokohama Japan Punch Air Spring F-160-2 AIRSUSTECH Double Rubber Air Bag
S-160-2R Yokohama Japan Punch Air Spring F-160-2 AIRSUSTECH Double Rubber Air Bag
S-160-2R Yokohama Japan Punch Air Spring F-160-2 AIRSUSTECH Double Rubber Air Bag
S-160-2R Yokohama Japan Punch Air Spring F-160-2 AIRSUSTECH Double Rubber Air Bag
S-160-2R Yokohama Japan Punch Air Spring F-160-2 AIRSUSTECH Double Rubber Air Bag
Specifications
Brand Name :
AIRSUSTECH
Model Number :
F-160-2
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T,,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000 PCS/Week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Quality :
Hight Stability
Model No. :
F-160-2
Convolutions :
Double Convoluted
Type of Goods :
Punch Air Spring
Material :
Rubber+Steel Hoop
Full Stroke :
95 MM
Warranty :
1 Year
Maintenance :
Low / Minimal
Description
S-160-2R Yokohama Japan Punch Air Spring F-160-2 AIRSUSTECH Double Rubber Air Bag
S-160-2R Yokohama Japan Punch Air Spring F-160-2 AIRSUSTECH Double Rubber Air Bag
Product Characteristics
  • Natural Diameter: 205 mm
  • Design Height: 98 mm
  • Max. Usable Height: 148 mm
  • Min. Usable Height: 53 mm
  • Working Stroke: 95 mm
  • Max. Outside Diameter: 220 mm

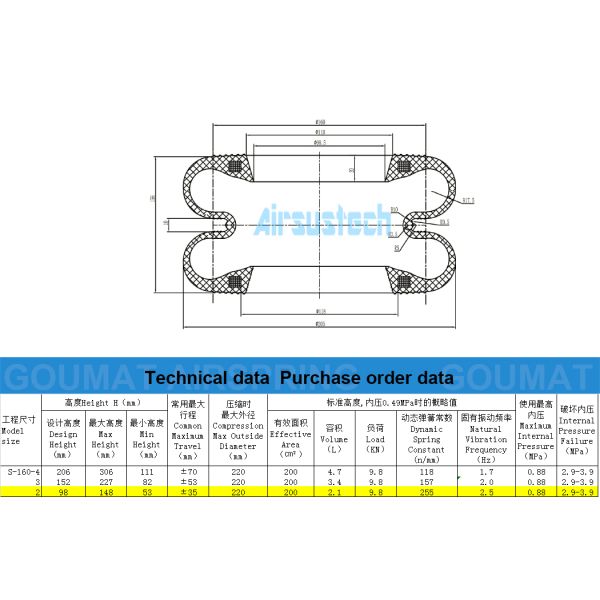

Product Technical Parameters

Approximate value at standard height and internal pressure of 0.49 MPa

Effective Area (cm²) Volume (L) Load (KN) Dynamic Spring Constant (n/mm) Natural Vibration Frequency (Hz)
200 2.1 9.8 255 2.5
AIRSUSTECH 160 MM Model Technical Data
AIRSUSTECH NO. Yokohama Reference No. Design Height (mm) Maximum Height (mm) Minimum Height (mm) The Largest Diameter When Compressed (mm)
F-160-2 S-160-2 98 148 53 220
F-160-3 S-160-3 152 227 82 220
F-160-4 S-160-4 206 306 111 220
AIRSUSTECH Cross YOKOHAMA OEM Number Quick Chart
AIRSUSTECH Part Number Japan YOKOHAMA Reference No. Japan YOKOHAMA Reference No. AIRSUSTECH Part Number Japan YOKOHAMA Reference No. Japan YOKOHAMA Reference No.
F-600-1S-600-1RS 600 1RF-240-4S-240-4RS 240 4R
F-600-2S-600-2RS 600 2RF-240-3S-240-3RS 240 3R
F-600-3S-600-3RS 600 3RF-240-2S-240-2RS 240 2R
F-600-4S-600-4RS 600 4RF-240-1S-240-1RS 240 1R
F-600-5S-600-5RS 600 5RF-220-4S-220-4RS 220 4R
F-550-2S-550-2RS 550 2RF-220-3S-220-3RS 220 3R
F-550-3S-550-3RS 550 3RF-220-2S-220-2RS 220 2R
F-500-2S-500-2RS 500 2RF-200-2S-200-2RS 200 2R
F-500-3S-500-3RS 500 3RF-200-3S-200-3RS 200 3R
F-500-4S-500-4RS 500 4RF-200-4S-200-4RS 200 4R
F-500-5S-500-5RS 500 5RF-160-1S-160-1RS 160 1R
F-450-1S-450-1RS 450 1RF-160-2S-160-2RS 160 2R
F-450-2S-450-2RS 450 2RF-160-3S-160-3RS 160 3R
F-450-3S-450-3RS 450 3RF-160-4S-160-4RS 160 4R
F-450-4S-450-4RS 450 4RF-120-4S-120-4RS 120 4R
F-450-5S-450-5RS 450 5RF-120-3S-120-3RS 120 3R
F-400-2S-400-2RS 400 2RF-120-2S-120-2RS 120 2R
F-400-3S-400-3RS 400 3RF-100-4S-100-4RS 100 4R
F-400-4S-400-4RS 400 4RF-90-3S-90-3RS 90 3R
F-400-5S-400-5RS 400 5RF-90-2S-90-2RS 90 2R
F-350-1S-350-1RS 350 1RF-90-1S-90-1RS 90 1R
F-350-2S-350-2RS 350 2RF-300-1S-300-1RS 300 1R
F-350-3S-350-3RS 350 3RF-300-2S-300-2RS 300 2R
F-350-4S-350-4RS 350 4RF-300-3S-300-3RS 300 3R
F-300-4S-300-4RS 300 4R

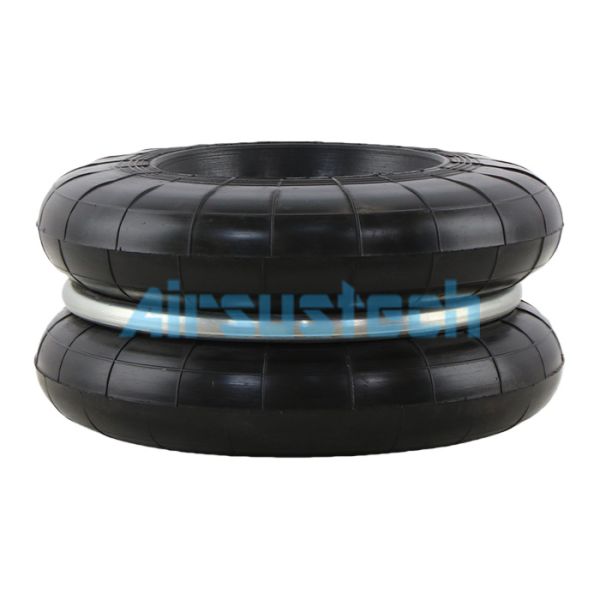

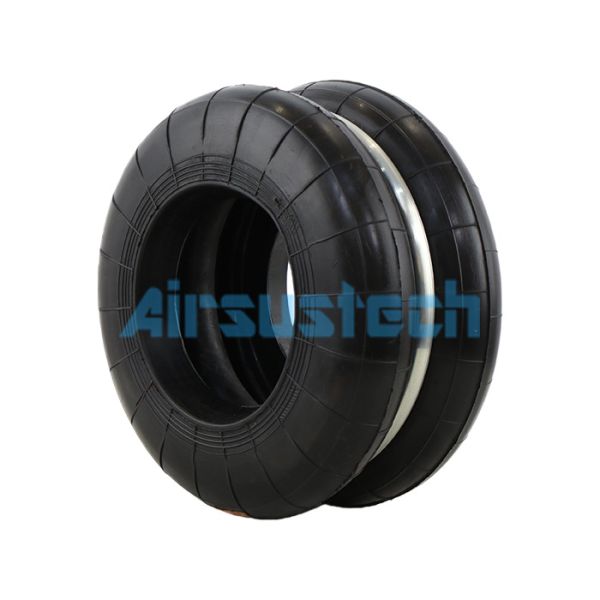

The Real Photos of AIRSUSTECH F-160-2 Double Air Spring
S-160-2R Yokohama Japan Punch Air Spring F-160-2 AIRSUSTECH Double Rubber Air Bag S-160-2R Yokohama Japan Punch Air Spring F-160-2 AIRSUSTECH Double Rubber Air Bag
Technicians Measure the Dimensions of AIRSUSTECH Air Springs
S-160-2R Yokohama Japan Punch Air Spring F-160-2 AIRSUSTECH Double Rubber Air Bag
Advanced Production Equipment
S-160-2R Yokohama Japan Punch Air Spring F-160-2 AIRSUSTECH Double Rubber Air Bag
