Specifications
Brand Name :
AIRSUSTECH
Model Number :
1B7451
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T,,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000 PCS/Week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Working Stroke :
90 MM
Max. Dia. :
205 MM
Air Fitting :
1/4NPTF
Firestone :
W01-358-7451
Quality :
100% Inspected
Production Process :
Vulcanization
Durability :
High
Factory Warranty :
12 Months
Description
Orial M25 / M-25 Industrial Bellows Air Spring W01-358-7451 Firestone Lifter Air Bag
Product Overview

The Orial M25 / M-25 Industrial Bellows Air Spring W01-358-7451 Firestone Lifter Air Bag is a high-performance pneumatic unit designed for industrial applications.

Features of AIRSUSTECH 1B7451
  • Single convolution pneumatic unit constructed with high-quality natural rubber and reinforced steel end plates

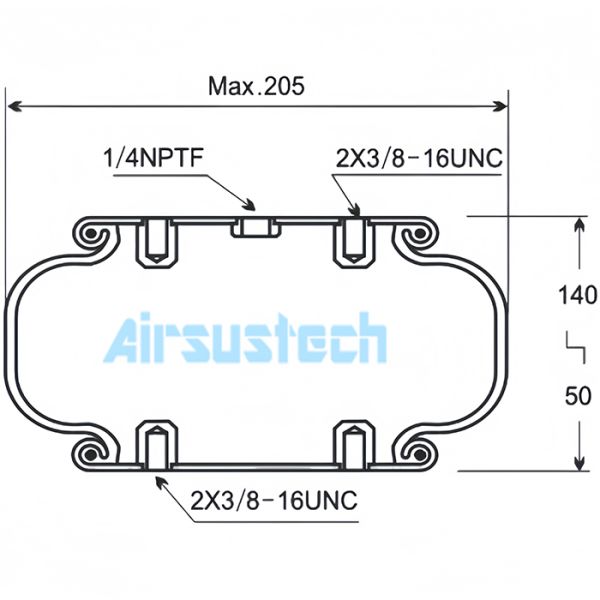

  • Minimum compressed height: 50 mm, maximum extended height: 140 mm, working stroke: 90 mm
  • Mounting plate diameter: 115 mm with center-to-center distance of 44.5 mm
  • Maximum outer diameter of 205 mm at 0.7 MPa operating pressure
  • Operates through gas pressurization with 1/4 NPTF air connection
  • Utilizes fasteners sized 2X3/8-16 UNC
1B7451 Air Bag Cross References
Configuration Part Numbers
Blind nuts, 1/4 NPT W01-358-7451 / W01 358 7451 / W013587451
WO1-358-7451 / WO1 358 7451 / WO13587451
Blind nuts, 3/4 NPT W01-358-7484 / W01 358 7484 / W013587484
WO1-358-7484 / WO1 358 7484 / WO13587484
Socket head aluminum bead rings (bolts, nuts, washers not included - use 1/4 cap screws) W01-358-0112 / W01 358 0112 / W013580112
WO1-358-0112 / WO1 358 0112 / WO13580112
Rubber bellows only W01-358-0100 / W01 358 0100 / W013580100
WO1-358-0100 / WO1 358 0100 / WO13580100
Product Applications
  • Robotic arm coupling
  • Conveyor belt end stop
  • Mountain bike
  • Vibration damper testing system
  • Vibrating screen cover clamping device
  • Pipe crawler
  • Precision electronic equipment
  • Vibrating screen
  • Thin plate welding clamping device
  • Rotary swashplate motor
  • Precision binding magazine cutting machine
  • Wave power module
  • One-way valve grinding
  • Self-positioning device
  • Air jet generator
  • Solar tracker
  • Blower and motor
  • Control panel
Oria Single Convoluted Air Spring Reference Numbers
Description Oria Firestone Contitech Pirelli / CF Gomma
Rubber bellow only M-10 W01-358-0010 FS 50-5 S VP 62242
Crimped, G1/4, Blind nuts M-10 W01-M58-6140 FS 50-5 CI G1/4 61388
Crimped, 3/4 NPT, Blind nuts M-10 W01-358-6996
Crimped, 1/4 NPT, Blind nuts M-10 W01-358-7001 FS 50-5 CI 1/4 NPT 75246
Socket Head Bead Ring M-10 W01-358-0017
Threaded Bead Rings M-10 FS 50-5 RI
Rubber Bellow Only M-20 W01-358-0131 FS 70-7 CI S VP 60512
Crimped, 1/4 BSP, Blind nuts M-20 W01-M58-6155 FS 70-7 CI G1/4 2681015000
Crimped, 1/4 NPT, Blind nuts M-20 W01-358-7731 FS 70-7 CI 1/4 NPT 75240
Crimped, 3/4 NPT, Blind nuts M-20 W01-358-7742
Socket Head Bead Ring M-20 W01-358-0127
Threaded Bead Rings M-20 FS 70-7 RI
Rubber Bellow Only M-25-E W01-358-0100 FS 100-10 S VP 63457
Crimped, G1/4, Blind nuts M-25-E W01-M58-6145 FS 100-10 CI G1/4 65745
Crimped, 1/4 NPT, Blind nuts M-25-E W01-358-7451 FS 100-10 CI G1/4 NPT 65529
Crimped, 3/4 NPT, Blind nuts M-25-E W01-358-7484
Socket Head Bead Ring M-25-E W01-358-0112
Threaded Bead Rings M-25-E FS 100-10 RI T110 / 88540 88820
Rubber Bellow Only M-30 W01-358-0133 FS 120-9 S VP 72994
Crimped, 1/4 BSP, Blind nuts M-30 W01-M58-6166 FS 120-9 CI G3/4 61358
Crimped, 3/4 BSP, Blind nuts M-30 W01-M58-6165 FS 120-9 CI G3/4 2681030000
Crimped, 1/4 NPT, Blind nuts M-30 W01-358-7564 FS 120-9 CI 1/4 NPT 75360 / T116 / 93027
Crimped, 3/4 NPT, Blind nuts M-30 W01-358-7561 FS 120-9 CI 3/4 NPT 75349
Countersunk Bead Rings M-30 W01-358-7568
Threaded Bead Rings M-30 FS 120-9 RI
Rubber Bellow Only M-30-E W01-358-0133 FS 120-9 S VP
Crimped, 1/4 BSP, Blind nuts M-30-E W01-M58-6170 FS 120-9 CI G1/4 61358
Crimped, 1/4 NPT, Blind nuts M-30-E W01-358-7598 FS 120-9 CI 1/4 NPT 75360
Crimped, 3/4 NPT, Blind nuts M-30-E W01-358-7605 FS 120-9 CI 1/4 NPT 75349
Countersunk Bead Rings M-30-E W01-358-7568
Threaded Bead Rings M-30-E FS 120-9 RI
Product Images
Orial M25 / M-25 Industrial Bellows Air Spring W01-358-7451 Firestone Lifter Air Bag

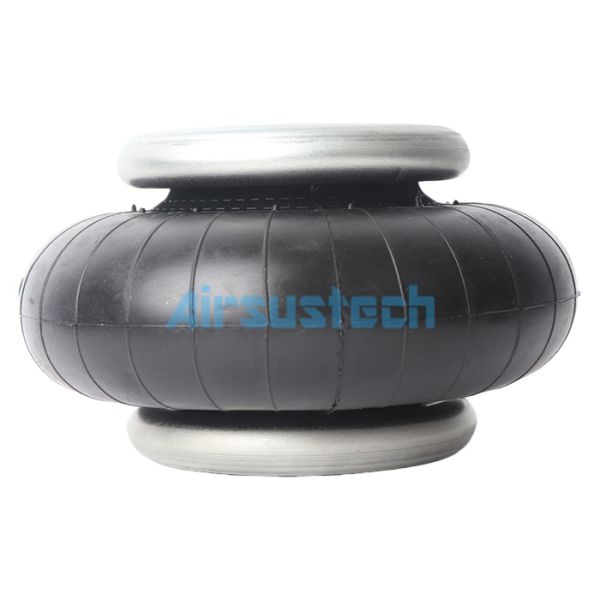

AIRSUSTECH 1B7451 Industrial Bellows Air Spring
Orial M25 / M-25 Industrial Bellows Air Spring W01-358-7451 Firestone Lifter Air Bag

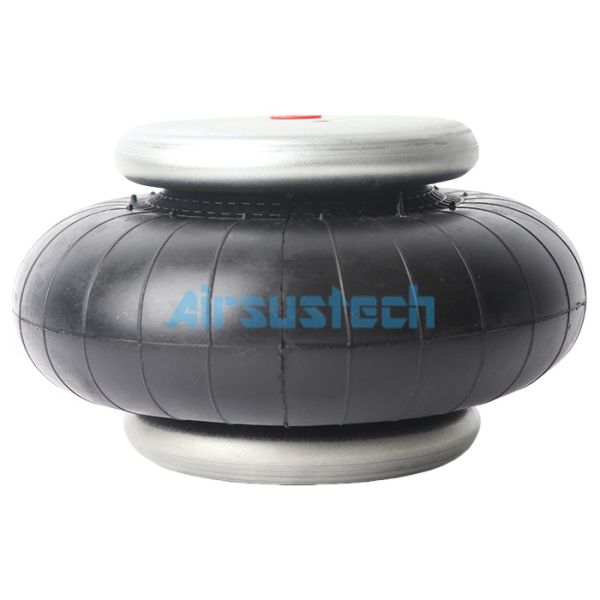

AIRSUSTECH 1B7451 Industrial Bellows Air Spring
Orial M25 / M-25 Industrial Bellows Air Spring W01-358-7451 Firestone Lifter Air Bag
Technicians measuring dimensions of AIRSUSTECH Air Springs
Orial M25 / M-25 Industrial Bellows Air Spring W01-358-7451 Firestone Lifter Air Bag
Advanced production equipment for AIRSUSTECH Air Springs
