Single Convoluted Rubber Air Spring HF80/90-1 Total Strok 60 MM Industrial Air Bag
Single Convoluted Rubber Air Spring HF80/90-1 Total Strok 60 MM Industrial Air Bag
Single Convoluted Rubber Air Spring HF80/90-1 Total Strok 60 MM Industrial Air Bag
Single Convoluted Rubber Air Spring HF80/90-1 Total Strok 60 MM Industrial Air Bag
Single Convoluted Rubber Air Spring HF80/90-1 Total Strok 60 MM Industrial Air Bag
Single Convoluted Rubber Air Spring HF80/90-1 Total Strok 60 MM Industrial Air Bag
Single Convoluted Rubber Air Spring HF80/90-1 Total Strok 60 MM Industrial Air Bag
Single Convoluted Rubber Air Spring HF80/90-1 Total Strok 60 MM Industrial Air Bag
Specifications
Brand Name :
AIRSUSTECH
Model Number :
HF80/90-1
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000 PCS/Week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Material :
High Natural Rubber
Convolution :
Single Convoluted
Max. Diameter :
136 MM
Color :
Black
Durability :
High
Maintenance :
Low
Factory Warranty :
12 Months
Quality :
100% Inspected
Description

Single Convoluted Rubber Air Spring HF80/90-1 Total Strok 60 MM Industrial Air Bag

Product Characteristics

Number of Convolution: 1 / One
Max. External Diameter: 136 MM
Outer Diameter: 82 MM
Design Height: 90 MM
Min. Compressed Height: 50 MM
Max. Usable Height: 110 MM
HS Code: 870880

Advantages of the Rubber Bellows in Relation to Coil Springs

  1. Best isolation degree in the market: The rubber bellow isolator is able to absorb up to 99% of the vibrations.
  2. Uniform isolation properties: The rubber air isolators maintain constant natural frequency values with changing loads.
  3. Long life cycle: The rubber bellow has a very low cost, as there is no friction between metal components, avoiding wear, and consequently being maintenance free.
  4. Extension of the life of the machinery: Air bellows extend the life cycle of the equipment, due to their outstanding isolation properties.
  5. Effective noise reduction: The rubber air bellow’s natural frequency reduces structurally transmitted noise.
  6. Compact installation height: The rubber bellow has a very low design height.
  7. Height Control: The air pressure can be regulated guarantying a uniform operating height with alternating loads.
  8. Wide size range: The bellows are able to isolate loads up to 450 kN for each elastomer.

AIRSUSTECH HF Model Rubber Air Springs/Air Bags/Air Bellows

HF Type Air Spring HF Type Air Spring HF Type Air Spring
HF80/90-1 HF170/120-1 HF230/140-2
HF80/142-2 HF174/126-1 HF240/100-1
HF95/70-1 HF180/156-1 HF240/165-2
HF100/166-2 HF180/152-2 HF250/255-2
HF100/238-3 HF190/170-2 HF264/90-1
HF104/66-1 HF190/248-3 HF290/105-1
HF115/77-1 HF192/140-2 HF300/255-2
HF120/132-2 HF208/90-1 HF310/160-1
HF125/112-1 HF230/116-1 HF320/203-2
HF150/140-2 HF230/120-1

FAQ

Q: How do you make our business a long-term and good relationship?
A: 1. We maintain good quality and competitive prices to ensure our customers benefit; 2. We respect every customer as our friend and we sincerely do business and make friends with them no matter where they come from.

Q: What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q: What is your advantage?
A: (1) High quality - Natural rubber.
(2) Fast delivery - Stock sales.
(3) Best service - 24 hours online.
Q: Can you print my logo on inner box and outer box?
A: Yes. We can do it, but it has MOQ.

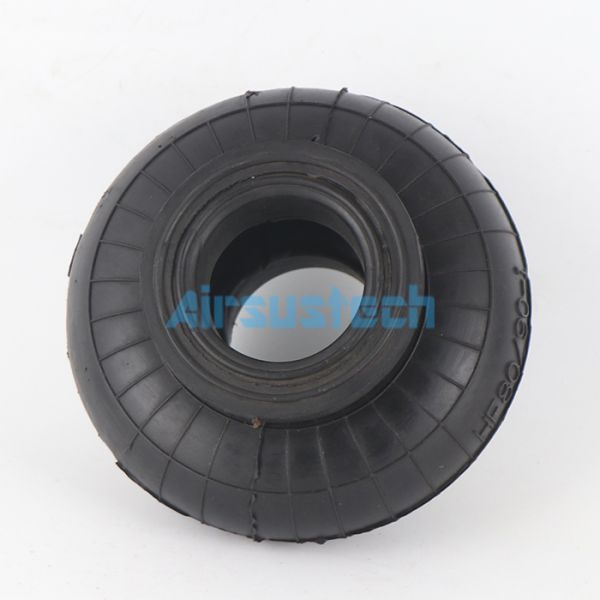

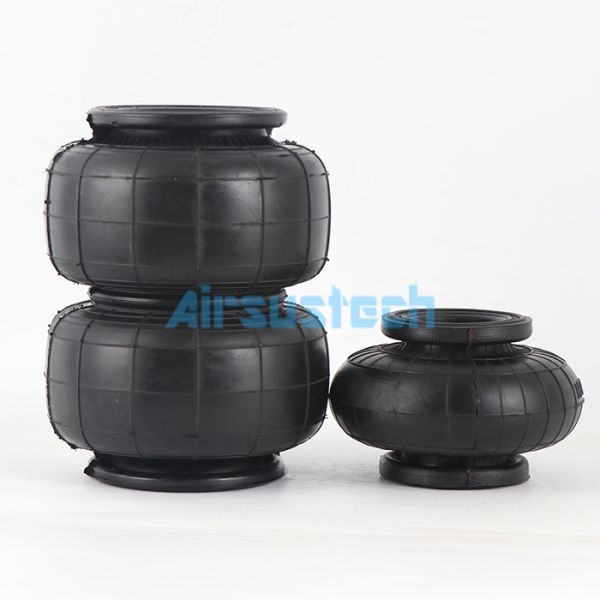

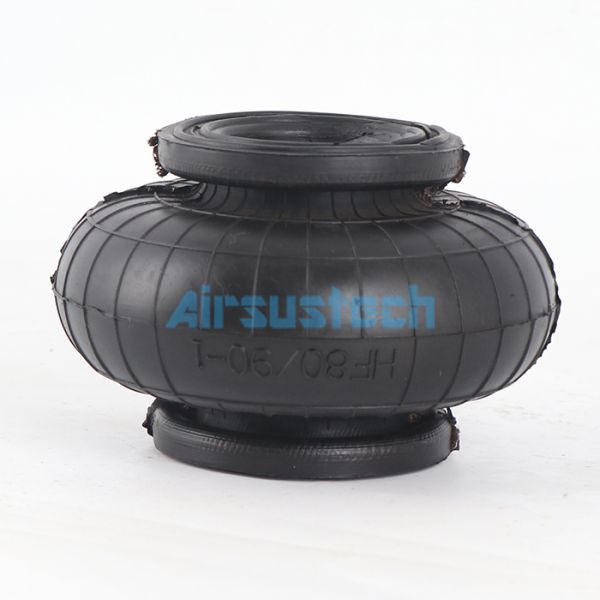

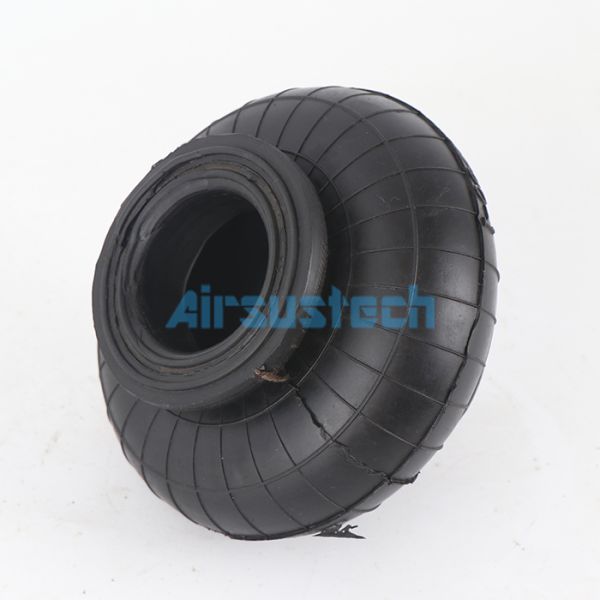

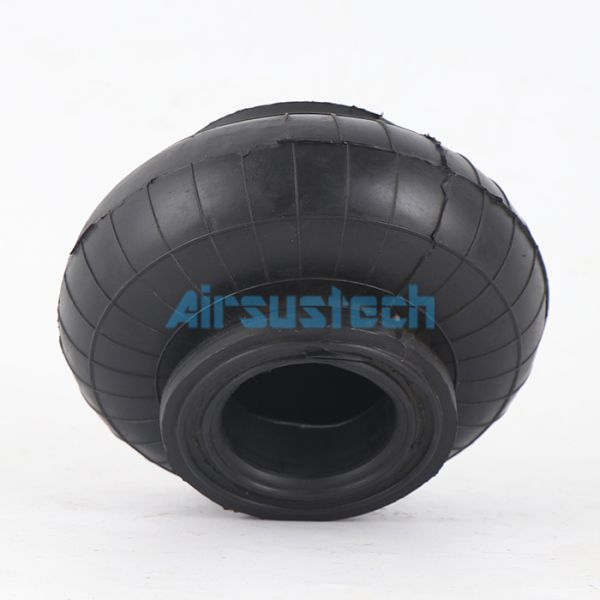

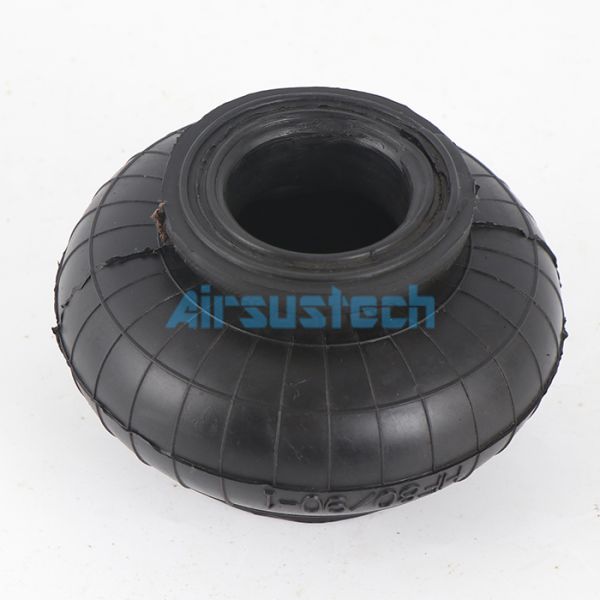

The Real Pictures of HF80/90-1 Air Bellows/Air Ballon

Single Convoluted Rubber Air Spring HF80/90-1 Total Strok 60 MM Industrial Air BagSingle Convoluted Rubber Air Spring HF80/90-1 Total Strok 60 MM Industrial Air Bag

Technicians Measure the Dimensions of AIRSUSTECH Air Springs

Single Convoluted Rubber Air Spring HF80/90-1 Total Strok 60 MM Industrial Air Bag

Advanced Production Equipment

Single Convoluted Rubber Air Spring HF80/90-1 Total Strok 60 MM Industrial Air Bag
