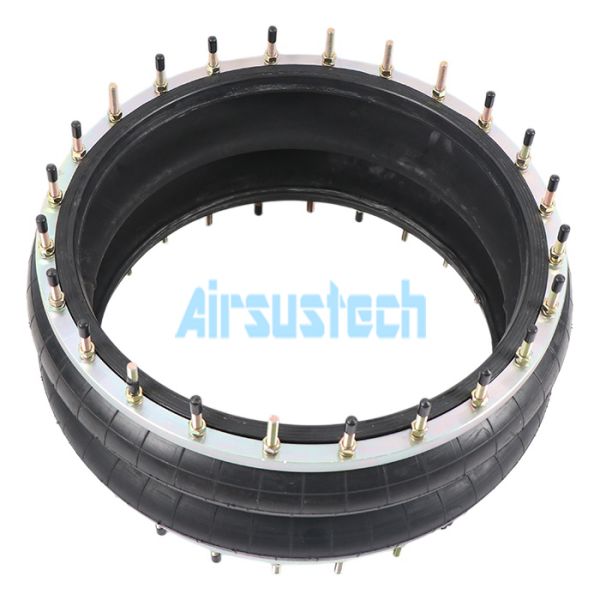

Firestone Style 200 W013587775 Double Convoluted Air Spring Bolt Circle Dia. 22''
Firestone Style 200 W013587775 Double Convoluted Air Spring Bolt Circle Dia. 22''
Firestone Style 200 W013587775 Double Convoluted Air Spring Bolt Circle Dia. 22''
Firestone Style 200 W013587775 Double Convoluted Air Spring Bolt Circle Dia. 22''
Firestone Style 200 W013587775 Double Convoluted Air Spring Bolt Circle Dia. 22''
Firestone Style 200 W013587775 Double Convoluted Air Spring Bolt Circle Dia. 22''
Firestone Style 200 W013587775 Double Convoluted Air Spring Bolt Circle Dia. 22''
Firestone Style 200 W013587775 Double Convoluted Air Spring Bolt Circle Dia. 22''
Specifications
Delivery Time :
3-8 Working Days
Price :
Negotiable
Flexibility :
Good
Packaging Details :
Strong Carton Box or as Customers Requirement
Design H. :
9.5 Inches
Model Number :
2H630262
Supply Ability :
1000 PCS/Week
Payment Terms :
T/T,,Paypal or Others,L/C,D/A,D/P,MoneyGram
Compatibility :
Adjustable
Condition :
Brand-new
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
Manufacturer :
AIRSUSTECH
Firestone :
W01-358-7772
After-sales Service :
12 Months
MOQ :
1 Piece
Brand Name :
AIRSUSTECH
PCD :
22 Inches
Description
Firestone Style 200 W013587775 Double Convoluted Air Spring
Bolt Circle Diameter: 22 inches
Product Specifications
Flange Ring Diameter: 22.64 Inches / 575 MM
PCD: 22 Inches
Bolts Type: 24(3/8-24)
Max. Outer Diameter: 26 Inches / 660.4 MM
Design Height: 9.5 Inches / 241.3 MM
Compressed Height: 3.5 Inches / 88.9 MM
Maximum Height: 12 Inches / 304.8 MM
Structure: Double Convolutions
Cross Reference Parts
Description OEM Number
Ribbed neck aluminum bead rings (equal spacing), 17/8 bolts, nuts, washers W01-358-7772 / W013587772 / W01 358 7772 WO1-358-7772 / WO13587772 / WO1 358 7772
Ribbed neck aluminum bead rings (equal spacing) 11/4 b,n,w W01-358-7775 / W013587775 / W01 358 7775 WO1-358-7775 / WO13587775 / WO1 358 7775
Rubber bellows only W01-358-5126 / W013585126 / W01 358 5126 WO1-358-5126 / WO13585126 / WO1 358 5126
Ribbed neck aluminum bead rings (equal spacing), 45 mm bolts, nuts, washers W01-M58-6979 / W01M586979 / W01 M58 6979 WO1-M58-6979 / WO1M586979 / WO1 M58 6979
Dynamic Performance Characteristics
At 9.5 Inch Design Height (Volume @ 60 PSIG = 9.21 in³)
Gage Pressure (PSIG) LOAD (lbs.) Spring Rate (lbs./in.) CPM HZ
40 13,290 3,784 100 1.67
60 20,390 5,336 96 1.6
80 27,330 6,763 93 1.56
100 34,620 8,105 91 1.51
Force Table
Assembly Height (in.) Volume @ 100 PSIG (in³) Pounds Force @ 20 PSIG @ 40 PSIG @ 60 PSIG @ 80 PSIG @ 100 PSIG
10.04099627012530193002597033040
9.03734707013960213602855036020
8.03343771015070229603058038450
7.02928818015920241603220040400
6.02495854016610251103355041960
5.02055888017280260103479043400
4.01589926018000269603602044850
AIRSUSTECH 2H Flange Connection Air Spring Series
