Specifications
Model Number :
2B16X2T
Certification :
ISO/TS16949:2009
Price :
Negotiable
Supply Ability :
1000 PCS/Week
Delivery Time :
3-8 Working Days
Flexibility :
Good
Norgren :
M/31162
Maintenance :
Low
Production Process :
Blasting Test
Brand Name :
AIRSUSTECH
Place of Origin :
Guangzhou, China
MOQ :
1 Piece
Payment Terms :
T/T,,Paypal or Others,L/C,D/A,D/P,MoneyGram
Packaging Details :
Strong Carton Box or as Customers Requirement
Standard :
OEM Standard
Quality :
Durability
Condition :
Brand New
PCD :
282 MM
Description
Contitech Double Convoluted Air Actuator FD 816-30 DS Air Spring Replacement 16X2
This double convoluted air actuator serves as a direct replacement for 16X2 air springs, designed for industrial applications requiring reliable air suspension systems.
Product Overview
The Contitech FD 816-30 DS air spring can be used with height adjustment valves to maintain constant height and prevent load fluctuations. When combined with auxiliary tanks and throttle valves, it provides excellent damping performance and reduces resonance amplitude. The air spring features a simple structure for easy installation and disassembly.
Technical Specifications
PCD 282 mm
Flange Cover Plate O.D. 310 mm
Static Height 174 mm
Natural Diameter 380 mm
Bolts Type 4-M10
Air Inlet Rc 1/2"
Bolts Length 42 mm
Cross-Reference Part Numbers
Contitech FD 816-30 DS | FD 816-30 DS M10 | FD 81630 DS
Firestone W01-R58-4067 | W01 R58 4067 | W01R584067 | WO1-R58-4067 | WO1 R58 4067 | WO1R584067
Dunlop Pneuride 16"X2 | Pneuride 16X2 | Pneuride 16'X2 | Springride SP1557
Norgren M/31162 | M31162 | M 31162
Parker 9109171
Installation & Operation Instructions
Thrust Characteristics
Thrust varies with bellow height - increasing height decreases thrust. Before installation, carefully inspect for transport or storage damage. Do not inflate until properly secured.
Clearance Requirements
  • Maintain adequate clearance around the air bellow
  • Use full surface of metal parts to bear forces
  • Equip air bellows with lateral guides
  • Fully deflate before removal
  • Avoid constant contact with hydraulic oil, lubricants, solvents, metal cuttings, and welding sparks
  • Contact AIRSUSTECH for applications involving special media, specifying medium, temperature, and concentration
Mechanical Stops
Use mechanical stops at both end positions to prevent damage during compression or extension.

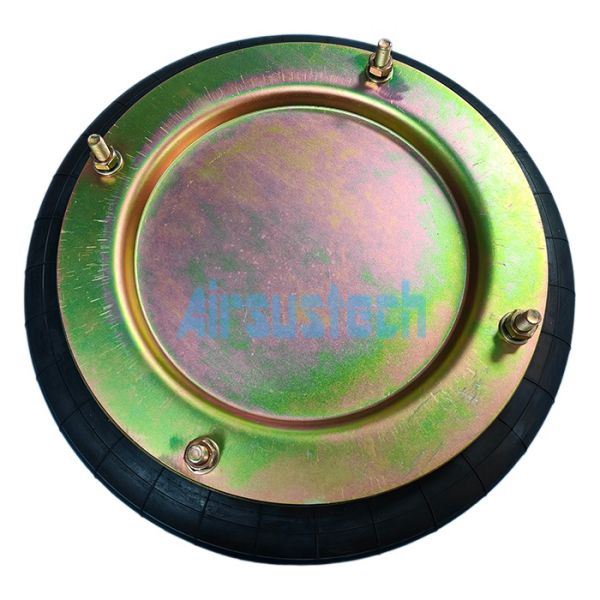

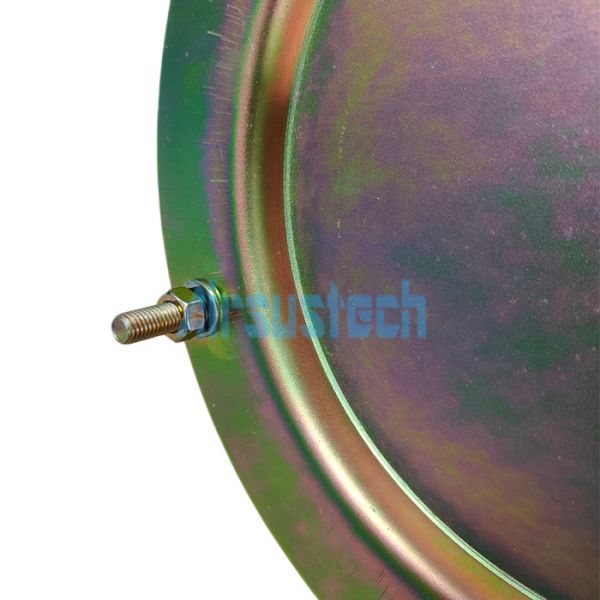

Product Images
Contitech Double Convoluted Air Actuator FD 816-30 DS Air Spring Replacement 16X2 Contitech Double Convoluted Air Actuator FD 816-30 DS Air Spring Replacement 16X2
