Black GOODYEAR Sleeve Air Spring 1S3-013 Super Cushion Mini Lobe Prevost 950208
Black GOODYEAR Sleeve Air Spring 1S3-013 Super Cushion Mini Lobe Prevost 950208
Black GOODYEAR Sleeve Air Spring 1S3-013 Super Cushion Mini Lobe Prevost 950208
Black GOODYEAR Sleeve Air Spring 1S3-013 Super Cushion Mini Lobe Prevost 950208
Black GOODYEAR Sleeve Air Spring 1S3-013 Super Cushion Mini Lobe Prevost 950208
Black GOODYEAR Sleeve Air Spring 1S3-013 Super Cushion Mini Lobe Prevost 950208
Black GOODYEAR Sleeve Air Spring 1S3-013 Super Cushion Mini Lobe Prevost 950208
Black GOODYEAR Sleeve Air Spring 1S3-013 Super Cushion Mini Lobe Prevost 950208
Specifications
Brand Name :
AIRSUSTECH
Model Number :
G3014
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000 PCS/Week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Type of Goods :
Sleeve Air Spring
Stroke :
53 MM
Firestone :
W02-358-3000
After-sales Service :
One Year
Condition :
100% Brand New
Temperature :
-40°F...158°F
Production Process :
Burst Resistance
Max. Lifting Pressure :
7 Bar
Description
Black GOODYEAR Sleeve Air Spring 1S3-013 Super Cushion Mini Lobe Prevost 950208
Product Specifications
  • Model Number: G3014
  • Brand: AIRSUSTECH
  • Material: Rubber and Steel
  • Warranty: One Year
  • Condition: New
Technical Dimensions
Minimum Compressed Height 38 mm
Maximum Extended Height 91 mm
Total Stroke 53 mm
Bottom Plate Diameter 74.5 mm
Air Inlet 5/8-11UNC, 1/8-27NPTF
AIRSUSTECH G3014 Sleeve Air Spring
The AIRSUSTECH G3014 Sleeve Air Spring delivers enhanced productivity and extended lifespan for trucks, trailers, and buses. Designed to provide consistent comfort, these sleeve air springs ensure trouble-free operation across various applications.
Construction and Design
Sleeve air springs utilize a flexible member without an internally molded bead. The flexible material is securely attached to the end retainers by pinching it between the retainers and exterior crimp rings, which are then swaged to the correct diameter, providing durable and reliable performance.
Common Applications
  • Ride springs for passenger cars and trucks
  • Cab suspension isolators for trucks
  • Seat (cab) springs for trucks and buses
  • Actuators and isolators for industrial machinery
With their robust design and versatile functionality, AIRSUSTECH sleeve air springs are ideal for enhancing ride comfort, reducing vibration, and ensuring long-lasting service in both transportation and industrial applications.
G3014 Cross Reference OEM Numbers
Supplier OEM Number
Goodyear 1S3-013 / 1S3013 / 1S3 013
Firestone W02-358-3000 / W02 358 3000 / W023583000
W02-358-3001 / W02 358 3001 / W023583001
Prevost 950208
ContiTech SK37-6P02 / SK37 6P02 / SK376P02
Endyne TI-1S3-013 / TI 1S3 013 / TI1S3013
About Our Company
We specialize in the development of automotive components, providing quality products and competitive prices. Contact us for quotations or technical questions about our products. We look forward to establishing business relationships with you.

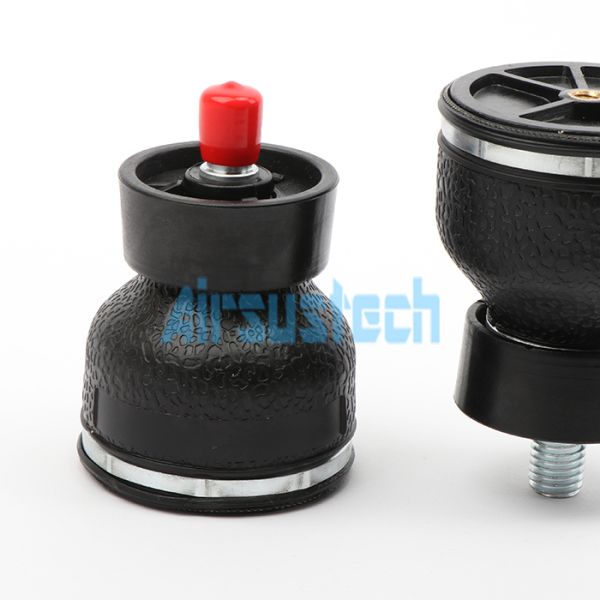

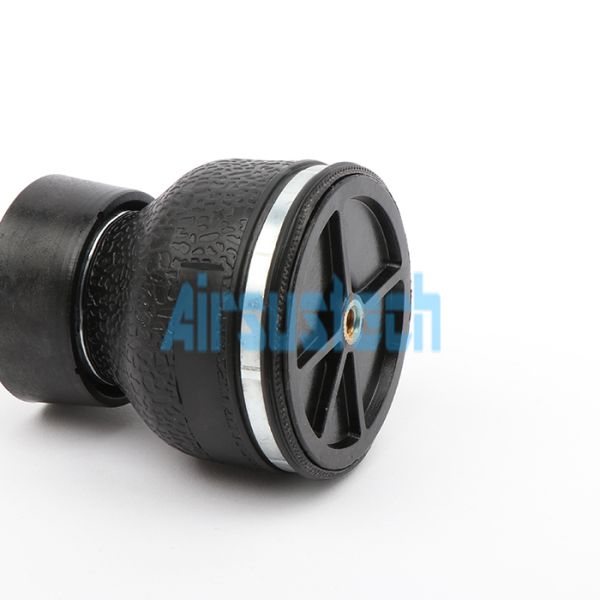

Product Images
