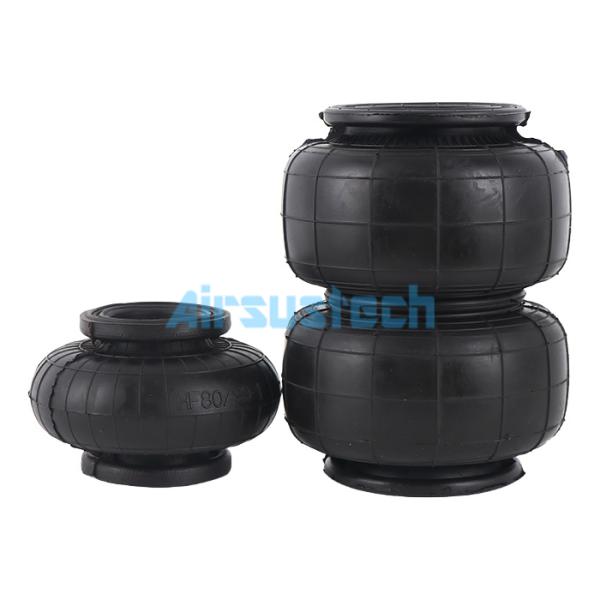

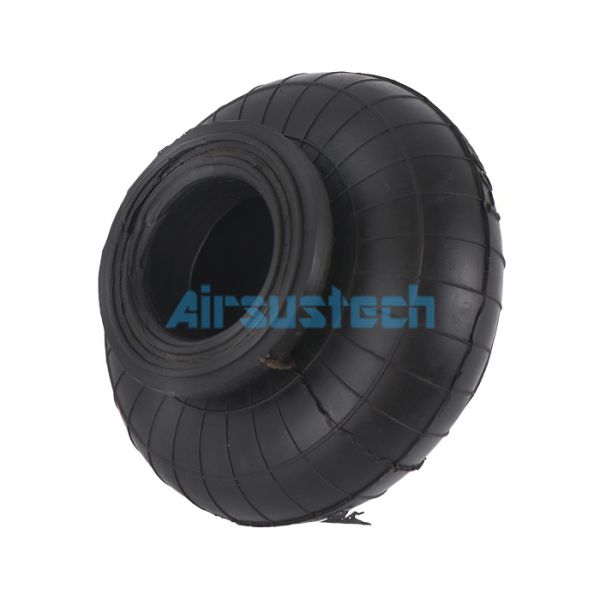

Static Height 90MM Rubber Bellows Only AIRSUSTECH HF80/90-1 Air Spring Assembly
Static Height 90MM Rubber Bellows Only AIRSUSTECH HF80/90-1 Air Spring Assembly
Static Height 90MM Rubber Bellows Only AIRSUSTECH HF80/90-1 Air Spring Assembly
Static Height 90MM Rubber Bellows Only AIRSUSTECH HF80/90-1 Air Spring Assembly
Static Height 90MM Rubber Bellows Only AIRSUSTECH HF80/90-1 Air Spring Assembly
Static Height 90MM Rubber Bellows Only AIRSUSTECH HF80/90-1 Air Spring Assembly
Static Height 90MM Rubber Bellows Only AIRSUSTECH HF80/90-1 Air Spring Assembly
Static Height 90MM Rubber Bellows Only AIRSUSTECH HF80/90-1 Air Spring Assembly
Specifications
Brand Name :
AIRSUSTECH
Model Number :
HF80/90-1
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 pieces
Price :
Negotiable
Payment Terms :
T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000pcs/week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Supplier :
AIRSUSTECH
Part Number :
HF80/90-1
Max. Outer Diameter :
136 MM
Outer Opening Diameter :
82 MM
Full Stroke :
60 MM
Number of Convolutions :
One
Color :
Black
Material :
Natural Rubber
Description

Static Height 90MM Rubber Bellows Only AIRSUSTECH HF80/90-1 Air Spring Assembly

HF80/90-1 Air Bellows Structures

  1. Material: The HF80/90-1 is made of high-quality rubber, offering excellent elasticity and wear resistance.
  2. Loose Flange: This shock absorber may be equipped with a loose flange for easy installation and connection, ensuring a secure fit with equipment.
  3. Inflatable Structure: Its internal inflatable design allows automatic adjustment of air pressure based on load changes, providing effective vibration damping.

The Details of AIRSUSTECH HF80/90-1

Bellows type single convolution
Min. usable height 50 mm
Max. usable height 110 mm
Stroke 60 mm
Maximum diameter 136 mm
Outer diameter 82 mm
Warranty 12 months
Quality 100% tested

Performance Features

1. Efficient Vibration Damping
The HF80/90-1 effectively absorbs and disperses vibration energy, significantly reducing equipment-induced disturbances to the surrounding environment and protecting devices from damage.

2. Durability and Stability
Subjected to rigorous quality control and performance testing, this shock absorber ensures long-term stable operation even under harsh working conditions, delivering reliable support and consistent vibration reduction.

3. Easy Installation
Customized to match specific equipment dimensions and mounting requirements, it can be easily adapted to various device models, enabling simple and quick installation.

4. Low Maintenance
Only periodic inspections of the shock absorber’s integrity and connections are needed to ensure proper operation, resulting in relatively low maintenance costs.

AIRSUSTECH Other Rubber Bellows Only

Model Number Number of Convolutions Maximum Diameter (mm) Outer Diameter (mm) Static Height (mm) Wroking Stroke (mm)
HF80/90-1 1 136 82 90 50-110
HF80/142-2 2 130 92 142 72-162
HF95/70-1 1 130 65 70 45-80
HF100/166-2 2 160 112 176 74-200
HF104/66-1 1 150 88 66 34-85
HF115/77-1 1 145 118 77 55-90
HF120/132-2 2 168 136 132 72-152
HF125/112-1 1 215 150 112 40-132
HF150/140-2 2 200 132 140 76-162
HF170/120-1 1 260 150 120 55-145
HF174/126-1 2 174 170 126 50-160
HF180/156-1 1 300 181 156 120-170
HF180/152-2 2 235 145 152 67-182
HF190/170-2 1 188 128 170 84-194
HF190/248-3 3 250 128 248 116-282
HF192-140-2 2 240 143 140 80-190
HF208/90-1 1 268 178 90 50-130
HF230/116-1 1 285 172 116 75-130
HF230/120-1 1 320 182 124 50-140
