Specifications
Model NO. :
1B6910 M8-G3/4
Sample :
Available
Color :
Black
Brand Name :
AIRSUSTECH
Convolution :
One
Contitech :
FS 200-10
Model Number :
1B6910 M8-G3/4
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 pieces
Price :
Negotiable
Payment Terms :
T/T,,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000pcs/week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Name of Goods :
Industrial Convoluted Air Spring
Standard :
OEM Standard
Description
Firestone W01-M58-6374 Metric Industrial Bellows Actuator with G3/4 Air Fitting
Product Detailed Data
Brand AIRSUSTECH Firestone
Part Number 1B6910 M8-G3/4 W01-M58-6374
Gas Hole G3/4 3/4BSP
Threaded Hole 2×M8×1.25 2×M8×1.25
Natural Height 110 mm -
Min. Height - 56 mm
Max. Height - 152 mm
Cover Plate Diameter 165 mm 160 mm
Center to Center Distance 89 mm 89 mm
Distance Between Air Hole and Nuts 38 mm 44 mm
Replaces These Air Springs (Air Bellows)
  • Firestone Style: W01-M58-6374, W01M586374, W01 M58 6374
  • Contitech Air Bellows: FS 200-10, FS 20010, FS 200 10
  • Phoenix Part Number: SP 1B 12, SP 1B12, SP1B12
  • Dunlop(FR) Air Spring: 9 1/4x1 S09101, 9'1/4x1 S09101, 9''1/4x1 S09101
  • Bos-ch Air Bag: 822419004
  • Festo Air Spring Assembly: EB-250-85, EB25085, EB 250 85
  • Norgren Air Suspension: PM/31091(8 1/4x1), PM31091(8 1/4x1), PM 31091(8 1/4x1)
Product Technical Parameters
Dynamic Characteristics at 115 mm Design Height
Gauge Pressure (BAR) Load (kN) Spring Rate (kN/m) Natural Frequency (Hz)
3 5.64 175 2.78
4 7.63 229 2.73
5 9.62 282 2.70
6 11.81 336 2.66
7 13.81 385 2.63
Force Table
Assembly Height (mm) Volume @ 100 BAR (cu cm) EFF Area @ 7 BAR (cu sq) kN Force
@ 3 BAR @ 4 BAR @ 5 BAR @ 6 BAR @ 7 BAR
130 3467 144 3.95 5.37 6.81 8.51 10.05
120 3265 180 5.13 6.93 8.75 10.78 12.63
110 3030 213 6.11 8.25 10.40 12.74 14.88
100 2794 239 6.83 9.33 11.74 14.34 16.73
90 2525 263 7.66 10.30 12.93 15.75 18.37
80 2256 282 8.24 11.08 13.89 16.91 19.70
70 1951 297 8.62 11.65 14.64 17.82 20.76
60 1650 307 8.88 12.01 15.14 18.46 21.49
Key Advantages of AIRSUSTECH Convoluted Air Springs
  • Cost-Effectiveness & Versatility: Low initial investment with broad applicability across industries. Simple operation reduces training time and operational complexity.
  • Durability & Maintenance-Free Operation: Extended service life outperforms traditional mechanical components. Requires no lubrication or routine maintenance, minimizing downtime.
  • Flexible Performance & Robust Design: Allows dynamic expansion and contraction under varying loads. High load-bearing capacity with a simple and convenient structure.
  • Smooth & Efficient Functionality: Friction-free operation ensures consistent performance. Soft medium design reduces noise and vibration transmission.

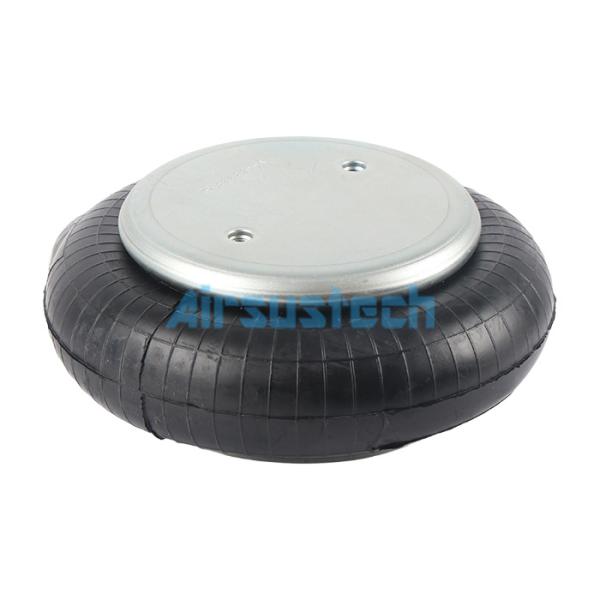

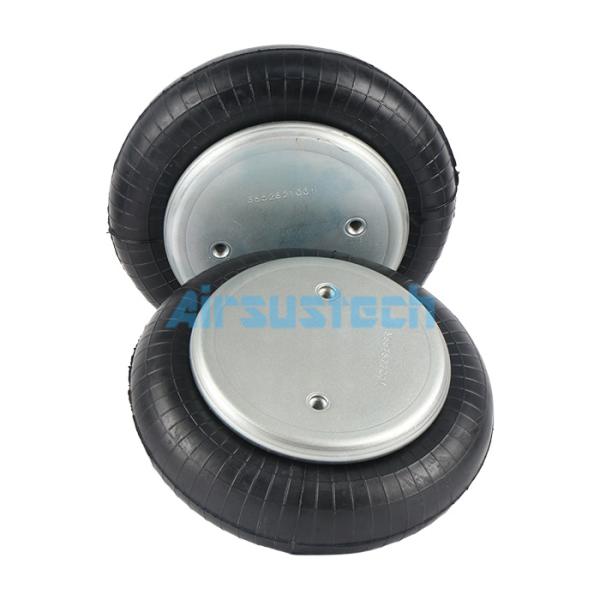

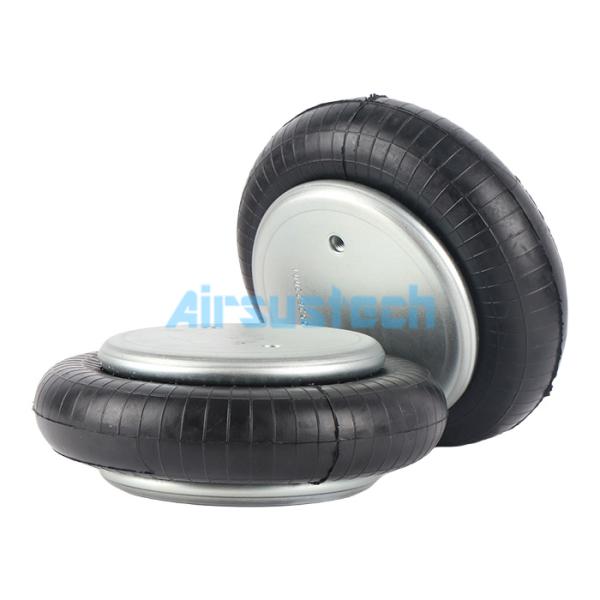

Product Photos
Firestone W01-M58-6374 Metric Industrial Bellows Actuator with G3/4 Air Fitting
Firestone W01-M58-6374 Metric Industrial Bellows Actuator with G3/4 Air Fitting
