Rubber Air Spring Endyne TI-1S3-013 Suspension Air Bag Firestone W02-358-3000
Rubber Air Spring Endyne TI-1S3-013 Suspension Air Bag Firestone W02-358-3000
Rubber Air Spring Endyne TI-1S3-013 Suspension Air Bag Firestone W02-358-3000
Rubber Air Spring Endyne TI-1S3-013 Suspension Air Bag Firestone W02-358-3000
Rubber Air Spring Endyne TI-1S3-013 Suspension Air Bag Firestone W02-358-3000
Rubber Air Spring Endyne TI-1S3-013 Suspension Air Bag Firestone W02-358-3000
Rubber Air Spring Endyne TI-1S3-013 Suspension Air Bag Firestone W02-358-3000
Rubber Air Spring Endyne TI-1S3-013 Suspension Air Bag Firestone W02-358-3000
Specifications
Brand Name :
AIRSUSTECH
Model Number :
G3014
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000 PCS/Week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Material :
Rubber
Full Stroke :
53 MM
Compatibility :
Easy to Replace
Function :
For Material Transfer
Maintenance :
Low
Part No. :
Goodyear 1S3-013
Piston O.D. :
74.5 MM
Condition :
Brand New
Description

Rubber Air Spring Endyne TI-1S3-013 Suspension Air Bag Firestone W02-358-3000

Product Quick Details

Product Name Rubber Air Spring
Model Number G3014
Manufacturer Warranty 12 Months
Brand Name AIRSUSTECH
Operation Gas Fitting

AIRSUSTECH G3014 Air Bag Cross Code

Endyne Bellow No.TI-1S3-013

Endyne Bellow No.TI 1S3 013

Endyne Bellow No.TI1S3013

Goodyear Model No. 1S3-013

Goodyear Model No. 1S3 013

Goodyear Model No. 1S3013
Firestone Model No. W02-358-3000 / WO2-358-3000

Firestone Model No. W02 358 3000 / WO2 358 3000

Firestone Model No. W023583000 / WO23583000
Firestone Model No. W02-358-3001 / WO2-358-3001

Firestone Model No. W02 358 3001 / WO2 358 3001

Firestone Model No. W023583001 / WO23583001
Prevost Model No. 950208
ContiTech Model No. SK37-6P02

ContiTech Model No. SK37 6P02

ContiTech Model No. SK376P02

G3014 Air Actuator Features

Piston Diameter: 74.5 mm
Min. Compressed Height: 38 mm
Maximum Height: 91 mm
Working Stroke: 53 mm
Air Fitting: 1/8-27 NPTF, 5/8-11 UNC
Threaded Hole: 5/16-18 UNC

The Applications of AIRSUSTECH G3014 Air Spring

  • The AIRSUSTECH small air spring is designed for precision instruments operating in limited spaces, effectively reducing the impact of vibration to achieve higher accuracy and stability. Originally developed for Harley-Davidson shock absorbers, this compact air spring is now used in a wider range of applications beyond motorcycle systems.
  • Many customers utilize it in smaller mechanical equipment that requires minimal force and compact design, consistently reporting excellent shock absorption performance. The AIRSUSTECH-designed G3014 air spring can fully replace the original Goodyear 1S3-013, providing reliable vibration control and smooth operation for sensitive devices.

FAQ

Q: What is the model number of the Rubber Air Springs?
A: The model number of the Suspension Air Springs is G3014.
Q: What are the packaging details for the AIRSUSTECH Air Springs?
A: The Suspension Air Springs are packaged in strong carton boxes or as per the customers' requirements.
Q: How do you guarantee quality?
A: We have testing on aging, hardness, bending, tension, viscosity, rheology, water inspection, bursting, fatigue, etc.
Q: Is the sample available?
A: Yes, Usually we send the samples by TNT, DHL, FEDEX or UPS.

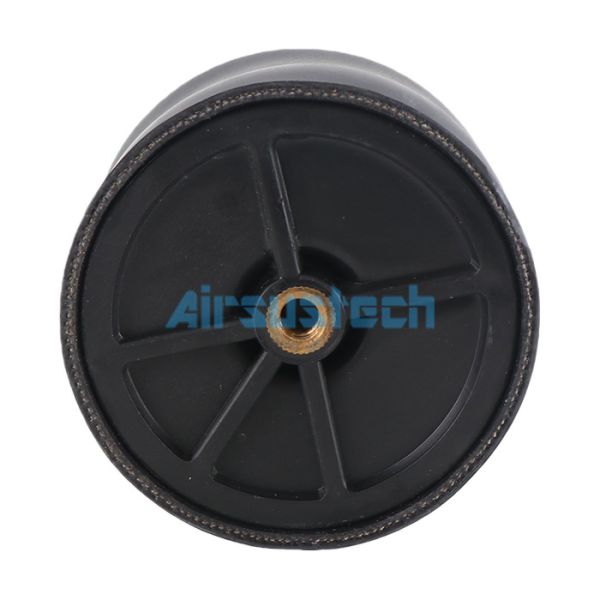

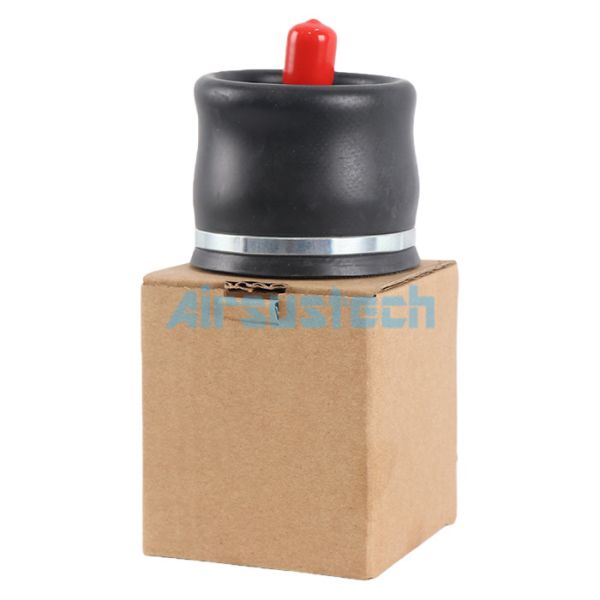

The Real Pictures of AIRSUSTECH G3014 Sleeve Air Bag

Rubber Air Spring Endyne TI-1S3-013 Suspension Air Bag Firestone W02-358-3000Rubber Air Spring Endyne TI-1S3-013 Suspension Air Bag Firestone W02-358-3000

Technicians Measure the Dimensions of AIRSUSTECH Air Springs

Rubber Air Spring Endyne TI-1S3-013 Suspension Air Bag Firestone W02-358-3000

Advanced Production Equipment

Rubber Air Spring Endyne TI-1S3-013 Suspension Air Bag Firestone W02-358-3000
