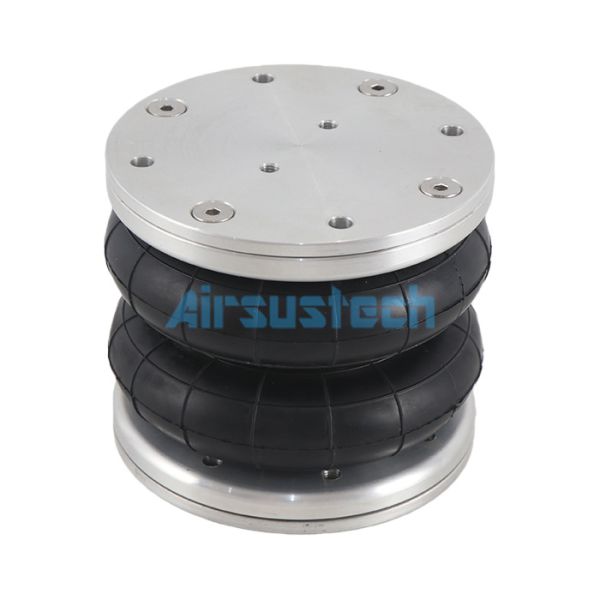

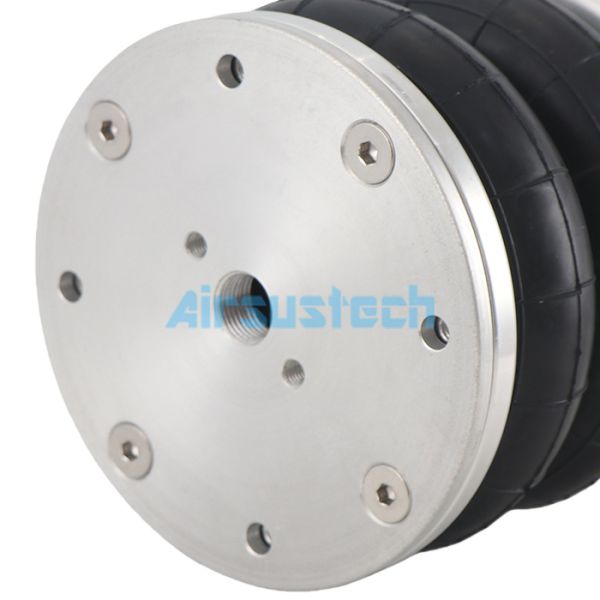

FD 76-14 DI Continental Bellows Style 2B180-115 Double Convoluted Air Spring

Manufacturer Original-part no. Model


Continental ContiTech: FD 76-14 1/2 M8
Continental ContiTech: FD 76-14 DIY G1/2
Continental ContiTech: FD 76-14 DIY G1/2 M8
Continental ContiTech: FD 76-14 DIY G1/2 CR
Continental ContiTech: FD 76-14 DIY CR G1/2
Continental ContiTech: FD 76-14 DI CR / FD76-14DICR / FD7614DICR
Continenta ContiTech Bellow: FD 76-14 / FD76-14 / FD7614
Firestone No.:W01-R58-4070 / W01 R58 4070 / W01R584070
Firestone Style: 6"x2"
Dunlop FR: 6"x2 SP1646 (COMPOSITE)
Dunlop FR: 6"x2 SP2917 (ALUMINIUM)
Dunlop UK (Pneuride): A 3 1330 02 01 / A313300201
Norgren: PM/31062 / PM 31062 / PM31062
Nominal (inch) x convolutions: 6"x2/6"x2/6"x2
Parker: 6"x2 9109001A
YS-AIR: YS-160-2VS / YS 160 2VS / YS1602VS

Technical Parameters

Maximum Height 195 MM
Compressed Height 80 MM
Mounting Hole 2×M8
Air Fitting G1/2
Center to Center Distance 127 MM
Max. Outside Diameter 178 MM
Installation Space Needed 195 MM
Cover Plate O.D. 152.5 MM

Technical Data Sheet

Minimum Pressure: 0 bar

Return Force to Min. Height: ≤ 180 N

Overall Weight with Metal Plates: 2.3 Kg

Vibration isolation - dynamic characteristics values
Pressure P [bar] 3 4 5 6 7 8 Vol. V[l]
Force (Load) [kN] 2.6 3.5 4.5 5.5 6.5 7.6 2.0
Spring Rate [N/cm] 675 855 1035 1215 1395 1570
Natural Frequency [Hz] 2.5 2.4 2.4 2.3 2.3 2.3

Pneumatic application - static characteristic values
Pressure p [bar] 3 4 5 6 7 8 Vol.[l]
Height H [mm] 160 2.6 3.5 4.5 5.5 6.5 7.6 2.0
140 3.3 4.5 5.6 6.8 8.1 9.3 1.7
120 3.9 5.2 6.6 8.0 9.14 10.8 1.5
100 4.6 6.2 7.8 9.4 11.1 12.8 1.2

Contitech Convoluted Air Actuators Details

Single convolution bellows
Item code Inch Maat Max. diameter (mm) Max. stroke (mm) Min. height (kN) Force with p = 8 bar Force with p = 8 bar (kN)
FS 22-3 DI CR 2 3/4 x 1 80 20 3.3 1.3
FS 44-5 DI CR 4 1/2 x 1 125 40 7.4 2
FS 76-7 DI CR 6 x 1 175 55 15 4.8
FS 76-7 DS CR 6 x 1 175 55 15 4.8
FS 138-8 DS 8 x 1 230 80 25 8.7
FS 210-10 DS 10 x 1 280 100 33.8 11.5
FS 412-10 DS 12 x 1 330 100 51.8 18.6
FS 614-13 DS 14 x 1 400 125 77.4 20.2
FS 816-15 DS 16 x 1 420 140 80.8 25.6
Double convolution bellows
Item code Inch Maat Max. diameter (mm) Max. stroke (mm) Min. height (kN) Force with p = 8 bar Max. stroke (kN)
FD 22-4 DI CR 2 3/4 x 2 80 45 3 0.9
FD 44-10 DI CR 4 1/2 x 2 125 85 7.4 1.7
FD 76-14 DI CR 6 x 2 178 115 14.5 4.7
FD 76-14 DS CR 6 x 2 178 115 14.5 4.7
FD 138-18 DS 8 x 2 230 175 24.7 5
FD 209-21 DS 9 1/4 x 2 255 205 31.2 7.5
FD 210-22 DS 10 x 2 270 225 35 7.1
FD 412-18 DS 12 x 2 330 225 53.6 15.4
FD 614-26 DS 14 x 2 400 265 79 19.7
FD 816-30 DS 16 x 2 435 315 84.2 21.1
Triple convolution bellows
Item code Inch Maat Max. diameter (mm) Max. stroke (mm) Min. height (kN) Force with p = 8 bar Max. stroke (kN)
FT 22-6 DI CR 2 3/4 x 3 80 60 2.7 0.8
FT 44-15 DI CR 4 1/2 x 3 125 110 6.9 2.3
FT 76-20 DI CR 6 x 3 178 190 14.7 3.5
FT 76-20 DS CR 6 x 3 178 190 14.7 3.5
FT 138-26 DS 8 x 3 230 250 24.6 6.9
FT 210-32 DS 10 x 3 270 330 35.3 7.9
FT 412-32 DS 12 x 3 330 330 54.6 15.9
FT 614-36 DS 14 x 3 400 380 79.1 19.2
FT 816-40 DS 16 x 3 430 430 85.7 24.5
