W01-358-0297 Firestone Industrial Rubber Bellows Only 2B6910 Double Air Spring
W01-358-0297 Firestone Industrial Rubber Bellows Only 2B6910 Double Air Spring
W01-358-0297 Firestone Industrial Rubber Bellows Only 2B6910 Double Air Spring
W01-358-0297 Firestone Industrial Rubber Bellows Only 2B6910 Double Air Spring
W01-358-0297 Firestone Industrial Rubber Bellows Only 2B6910 Double Air Spring
W01-358-0297 Firestone Industrial Rubber Bellows Only 2B6910 Double Air Spring
W01-358-0297 Firestone Industrial Rubber Bellows Only 2B6910 Double Air Spring
W01-358-0297 Firestone Industrial Rubber Bellows Only 2B6910 Double Air Spring
Specifications
Brand Name :
AIRSUSTECH
Model Number :
2B6910
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T,,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000 PCS/Week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Material :
Natural Rubber
Bellows Type :
Double Convolutions
OEM Part No. :
Contitech 60508
Operation :
Gas-Filled
Function :
Reduce Noise
Maintenance :
Low
Condition :
100% Brand New
Description
W01-358-0297 Firestone Industrial Rubber Bellows Only 2B6910 Double Air Spring
The W01-358-0297 Firestone Industrial Rubber Bellows is a high-performance 2B6910 Double Air Spring designed for industrial applications requiring reliable vibration isolation and load support.
Quick Details
Type of Goods Industrial Air Bellows Only
Quality 100% Tested
Purpose For Repair / Replace
Applications For Industrial Machines
Warranty 1 Year
2B6910 Double Air Bellows Specifications
Inner Diameter 115.5 mm
Outer Diameter 153 mm
Natural Outer Width 224.63 mm
Design Height 210 mm
Number of Ply Bellows 2
Load (at Design Height) at 3 bar 5.6 kN
Load (at Design Height) at 4 bar 7.5 kN
Load (at Design Height) at 5 bar 9.3 kN
Load (at Design Height) at 6 bar 11.2 kN
Load (at Design Height) at 7 bar 13.1 kN
Cross Code
AIRSUSTECH 2B6910 rubber bellows only cross Firestone W01-358-0297
AIRSUSTECH 2B6910 rubber bellows only cross Firestone W01 358 0297
AIRSUSTECH 2B6910 rubber bellows only cross Firestone W013580297
AIRSUSTECH 2B6910 rubber bellows only cross Firestone WO1-358-0297
AIRSUSTECH 2B6910 rubber bellows only cross Firestone WO1 358 0297
AIRSUSTECH 2B6910 rubber bellows only cross Firestone WO13580297
AIRSUSTECH 2B6910 air bellows Contitech Bellows Number 60508
The Features of AIRSUSTECH Industrial Air Rubber Bellows
AIRSUSTECH Industrial Air Springs deliver exceptional performance in vibration isolation, load support, and precision height control for various industrial applications. These robust components are ideally suited for machinery, construction equipment, mining machinery, and other industrial systems where reliability and performance are critical.
  • Exceptional Vibration Control: The advanced design effectively isolates vibrations, reducing equipment noise and mechanical wear. This results in extended machinery lifespan and significantly lower maintenance requirements, ensuring optimal operational efficiency.
  • Customized Configuration Options: Available in multiple sizes and configurations to meet specific application needs. The product range includes various elastomer compounds and end closure designs, providing tailored solutions for specialized operating conditions.
  • Maintenance-Free Reliability: Engineered for long-term performance with minimal maintenance needs, these air springs reduce operational downtime and associated costs, delivering consistent performance over extended service periods.
  • Enhanced Safety Features: By effectively minimizing vibrations and shock transmissions, AIRSUSTECH air springs contribute to safer working conditions for equipment operators and nearby personnel, supporting overall workplace safety initiatives.

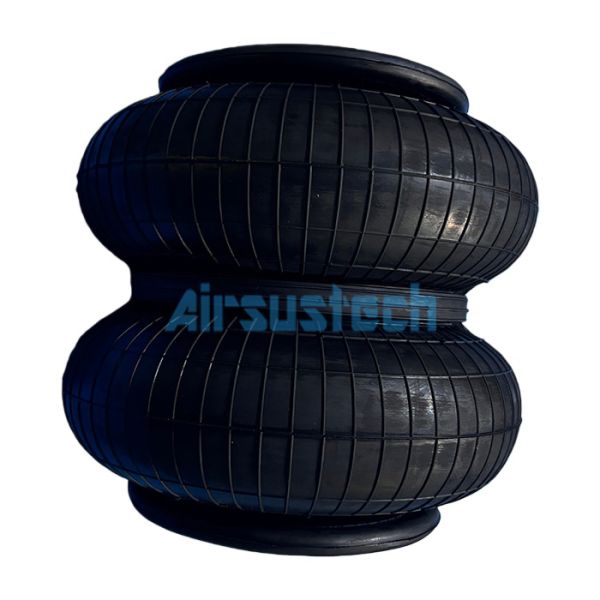

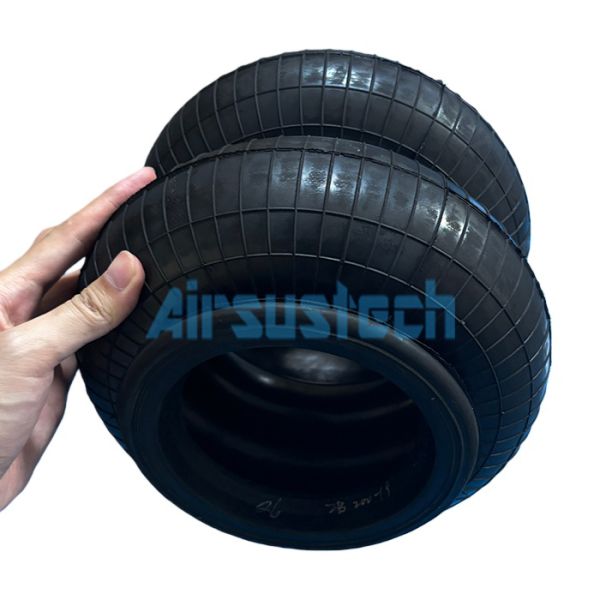

The Real Photos of AIRSUSTECH 2B6910 Rubber Bellows Part
W01-358-0297 Firestone Industrial Rubber Bellows Only 2B6910 Double Air Spring W01-358-0297 Firestone Industrial Rubber Bellows Only 2B6910 Double Air Spring
Technicians Measure the Dimensions of AIRSUSTECH Air Springs
W01-358-0297 Firestone Industrial Rubber Bellows Only 2B6910 Double Air Spring
Advanced Production Equipment
W01-358-0297 Firestone Industrial Rubber Bellows Only 2B6910 Double Air Spring
