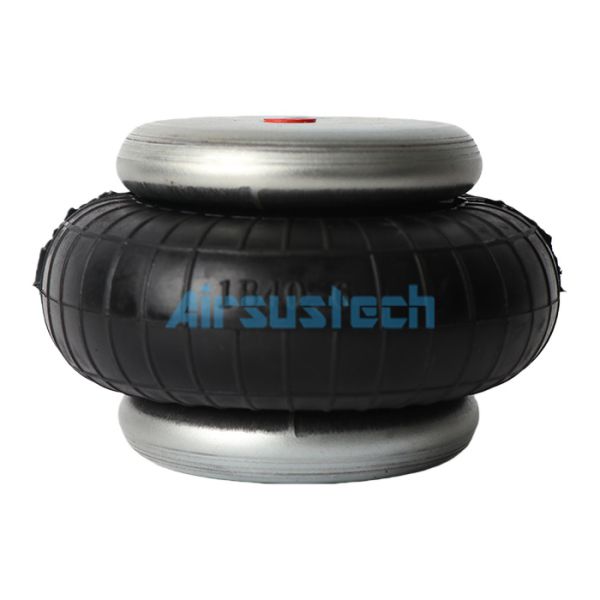

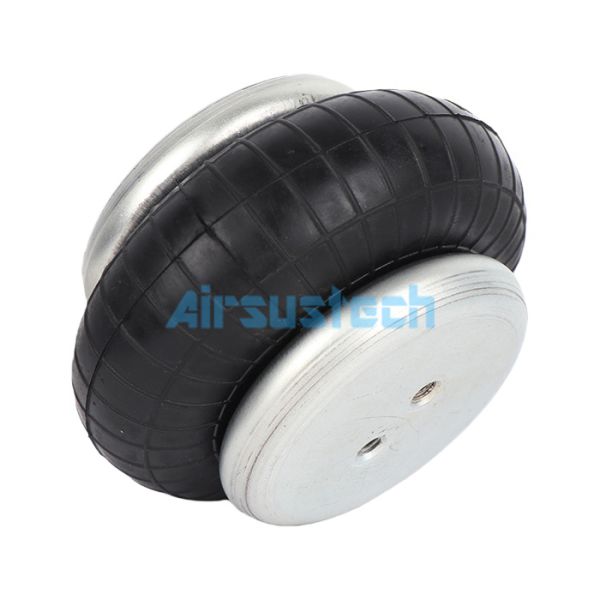

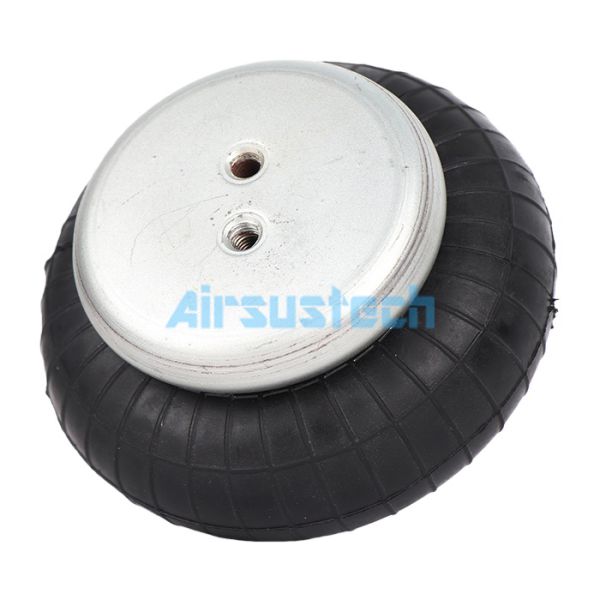

Phoenix Industrial Air Rubber Bellows SP 1B 04 Pneumatic Air Actuator G1/4 Air Hole
Phoenix Industrial Air Rubber Bellows SP 1B 04 Pneumatic Air Actuator G1/4 Air Hole
Phoenix Industrial Air Rubber Bellows SP 1B 04 Pneumatic Air Actuator G1/4 Air Hole
Phoenix Industrial Air Rubber Bellows SP 1B 04 Pneumatic Air Actuator G1/4 Air Hole
Phoenix Industrial Air Rubber Bellows SP 1B 04 Pneumatic Air Actuator G1/4 Air Hole
Phoenix Industrial Air Rubber Bellows SP 1B 04 Pneumatic Air Actuator G1/4 Air Hole
Phoenix Industrial Air Rubber Bellows SP 1B 04 Pneumatic Air Actuator G1/4 Air Hole
Phoenix Industrial Air Rubber Bellows SP 1B 04 Pneumatic Air Actuator G1/4 Air Hole
Specifications
Trademark :
AIRSUSTECH
Model Number :
1B4060
Air Connection :
G1/4
Static Height :
75 MM
Weforma :
WBE 100-E1
Material :
Rubber and Steel
Warranty Special :
12 Months
Top Plate Width :
92 MM
Brand Name :
AIRSUSTECH
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 pieces
Price :
Negotiable
Payment Terms :
T/T,,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000pcs/week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Description
Phoenix Industrial Air Rubber Bellows SP 1B 04 Pneumatic Air Actuator G1/4 Air Hole
Product Description

The Phoenix Industrial Air Rubber Bellows SP 1B 04 is a high-performance pneumatic air actuator designed for industrial applications.

Specifications of Convoluted Bellows 1B4060
  • Manufactured from high-quality natural rubber with steel cover plates
  • Minimum compressed height: 50 mm
  • Maximum extended height: 110 mm
  • Working stroke: 60 mm
  • Cover plate diameter: 92 mm
  • Center-to-center distance: 22 mm
  • Maximum outer diameter at 0.7 MPa: 142 mm
  • Air connection: G1/4
  • Screw nut size: M8
Technical Data
Loading capacity max. (7 bar) 6.0 kN
Max. lifting pressure 8.0 bar
Diameter max. 142 mm
Required space 170 mm
Height max. 110 mm
Height min. 50 mm
Weight 1.00 kg
Dynamic Data - Static Height 75 MM
Pressure (bar) Force (kN) Spring Rate (N/cm) Natural Frequency (Hz)
1 0.9 405 3.27
3 2.5 922 3.04
5 4.0 1377 2.93
7 6.0 1719 2.65
Other Model Numbers

Manufacturer: Phoenix
Part Number: SP 1B 04 / SP 1B04 / SP1B04

Manufacturer: Contitech
Part Number: FS 40-6 / FS 406 / FS 40 6
Part Number: FS40-6 / FS406 / FS40 6

Manufacturer: Weforma
Part Number: WBE 100-E1 / WBE 100E1 / WBE 100 E1
Part Number: WBE100-E1 / WBE100E1 / WBE100 E1

AIRSUSTECH Air Spring: Superior Performance and Versatility

AIRSUSTECH air spring shock absorbers are engineered to deliver exceptional performance across a wide range of industrial applications. These advanced components provide outstanding shock absorption capabilities, ensuring stable and consistent vibration isolation even under varying load conditions.

Key Advantages:
  • Excellent Damping Performance: Effectively absorbs and dissipates impact energy
  • Operational Stability: Maintains consistent performance across variable loads
  • Accurate Height Maintenance: Ensures precise positioning and alignment
  • Extended Equipment Lifespan: Reduces wear on machinery components
  • Noise Reduction: Significantly lowers operational sound levels
  • Configuration Flexibility: Available in comprehensive size ranges
Product Images
Phoenix Industrial Air Rubber Bellows SP 1B 04 Pneumatic Air Actuator G1/4 Air Hole
Phoenix Industrial Air Rubber Bellows SP 1B 04 Pneumatic Air Actuator G1/4 Air Hole
Phoenix Industrial Air Rubber Bellows SP 1B 04 Pneumatic Air Actuator G1/4 Air Hole
Engineers Measuring Product Specifications
Phoenix Industrial Air Rubber Bellows SP 1B 04 Pneumatic Air Actuator G1/4 Air Hole
Advanced Production Equipment
