Firestone Industrial Air Spring W01-358-6943 Double Convoluted Pneumatic Actuator
Firestone Industrial Air Spring W01-358-6943 Double Convoluted Pneumatic Actuator
Firestone Industrial Air Spring W01-358-6943 Double Convoluted Pneumatic Actuator
Firestone Industrial Air Spring W01-358-6943 Double Convoluted Pneumatic Actuator
Firestone Industrial Air Spring W01-358-6943 Double Convoluted Pneumatic Actuator
Firestone Industrial Air Spring W01-358-6943 Double Convoluted Pneumatic Actuator
Firestone Industrial Air Spring W01-358-6943 Double Convoluted Pneumatic Actuator
Firestone Industrial Air Spring W01-358-6943 Double Convoluted Pneumatic Actuator
Firestone Industrial Air Spring W01-358-6943 Double Convoluted Pneumatic Actuator
Firestone Industrial Air Spring W01-358-6943 Double Convoluted Pneumatic Actuator
Specifications
Brand Name :
AIRSUSTECH
Model Number :
2B6943
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 pieces
Price :
Negotiable
Payment Terms :
T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000pcs/week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Supplier :
AIRSUSTECH
Part Number :
2B6943
Cover Plate Diameter :
160 MM
Gas Hole :
1/4NPTF
Bellows Type :
Double Convolution
Contitech :
FD 200-25 426
Sample :
Available
Factory Warranty :
One Year
Description

Firestone Industrial Air Spring W01-358-6943 Double Convoluted Pneumatic Actuator

Specifications: AIRSUSTECH 2B6943 Cross W01-358-6943

Cover Plate
Top Cover Plate Diameter 160 mm
Screw Center Distance of Top Cover Plate 89 mm
Bottom Cover Plate Diameter 160 mm
Screw Center Distance of Bottom Cover Plate 89 mm
Nut/Blind Nuts
Top Cover Plate Screw (Nut) Tooth 2×1/2-13UNC
Bottom Cover Plate Screw (Nut) Tooth 2×3/8-16UNC
Gas Hole/Air Inlet/Air Fitting
Air Connection 1/4NPTF
Rubber Bellow
Rubber Bellow Max. Diameter 262 mm
Minimum Height 79 mm
Maximum Height 325 mm


OEM Interchange

Firestone Number: W01-358-6943 / WO1-358-6943

Firestone Number: W013586943 / WO13586943

Firestone Number: W01 358 6943 / WO1 358 6943


Contitech Number: FD 200-25 426

Contitech Number: FD 20025 426

Contitech Number: FD 200 25 426


Contitech Number: 161332
Goodyear Number: 2B9-250

Goodyear Number: 2B9250

Goodyear Number: 2B9 250
Goodyear Number: 578923206


Triangle Number: 6332/4426
Watson & Chalin Number: AS-0041
Neway/SAF Number: 90557237
Ridewell Number: 1003586943C
Tuthill Number: 6352

Versatile Applications of Air Suspension Spring

1. Trailer Suspension Air Spring
Air suspension systems for trailers provide superior cargo protection while minimizing maintenance issues caused by road impacts and unloaded "trailer hopping." These systems extend trailer service life, enable transportation of diverse cargo types, and reduce costly empty-load mileage.

2. Lift Axle Air Bag
Lift axle air suspension systems allow axle raising/lowering directly from the driver's cabin. Under no-load or partial-load conditions, they significantly reduce tire wear and enable easier turning with wide-spread tandem axles.

3. Drive Axle Air Suspension
Drive axle air suspension systems substantially improve tractor ride quality and handling performance. Benefits include enhanced driver comfort and safety, reduced tractor maintenance, extended tire service life, and higher resale value. These maintenance-friendly systems typically last over twice as long as steel spring alternatives.

4. Front Axle Air Spring
Front axle air suspension systems optimize steering precision and handling characteristics while improving tire wear patterns and reducing cab vibration-related issues.

5. Cab Mounting Air Actuator
Cab-mounted air suspension systems effectively eliminate common problems associated with standard cab mounts and help minimize harmful cab vibrations.

6. Seat Air Bag
Air-suspended seats enhance driver comfort and help alleviate driver fatigue during extended operation.

These specialized air suspension applications demonstrate comprehensive solutions for improving vehicle performance, operational efficiency, and driver comfort across commercial transportation systems.

We Have Other Convoluted Air Springs Cross Firestone

AIRSUSTECH No. Model No. AIRSUSTECH No.

Part No.
2B7897
W01-358-7897
 2B7781
W01-358-7781
2B6886
W01-358-6886
 2B7555
W01-358-7555
2B6883
W01-358-6883
 2B7550
W01-358-7550
2B6353
W01-M58-6353
 2B7545
W01-358-7545
2B7325
W01-358-7325
 2B7472
W01-358-7472
2B7781
W01-358-7781
 2B7136
W01-358-7136
2B7557
W01-358-7557
 2B7180
W01-358-7180
2B6799
W01-358-6799
 2B7122
W01-358-7122
2B7437
W01-358-7437
 2B7423
W01-358-7423
2B7429
W01-358-7429
 2B7410
W01-358-7410
2B7424
W01-358-7424
 2B7409
W01-358-7409
2B7408
W01-358-7408
 2B7406
W01-358-7406
2B7405
W01-358-7405
 2B7404
W01-358-7404
2B7403
W01-358-7403
 2B7422
W01-358-7422
2B7401
W01-358-7401
 2B7400
W01-358-7400
2B7344
W01-358-7344
 2B7183
W01-358-7183
2B7181
W01-358-7181
 2B7180
W01-358-7180
2B7122
W01-358-7122
 2B0335
A01-760-0335
2B3400
W01-358-3400
 2B3244
W01-358-3244
2B6957
A01-760-6957
 2B6105 W01-M58-6105
2B7025
W01-358-7025
 2B5900
W01-358-5900
2B6962
W01-358-6962
 2B6960
W01-358-6960
2B6948
W01-358-6948
 2B7679
W01-M58-7679
2B6946
W01-358-6946
 2B6945
W01-358-6945
2B6943
W01-358-6943
 2B6927
W01-358-6927
2B6891
W01-M58-6891
 2B6944
W01-M58-6944
2B6945
W01-358-6945
 2B6951
W01-358-6951
2B7325
W01-358-7325
 2B7326
W01-358-7326
2B6905
W01-358-6905
 2B7894
W01-M58-7894
2B7892
W01-358-7892
 2B7795
W01-358-7795
2B7788
W01-358-7788
 2B6949
W01-358-6949
2B6941
W01-358-6941
 2B6940
W01-358-6940
2B6935
W01-358-6935
 2B6856
W01-358-6856
2B6932
W01-358-6932
 2B6926
W01-358-6926
2B6910
W01-358-6910
 2B6908
W01-358-6908
2B6905
W01-358-6905
 2B6902
W01-358-6902
2B6900
W01-358-6900
 2B6897
W01-358-6897
2B6890
W01-358-6890
 2B6884
W01-358-6884
2B6926
W01-358-6926

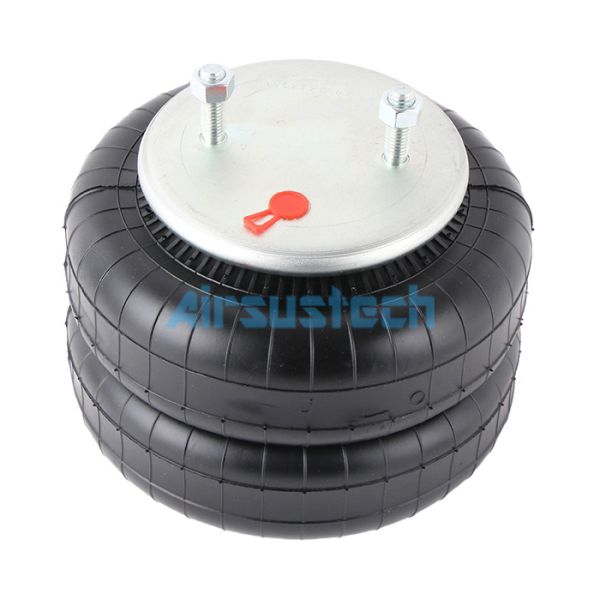

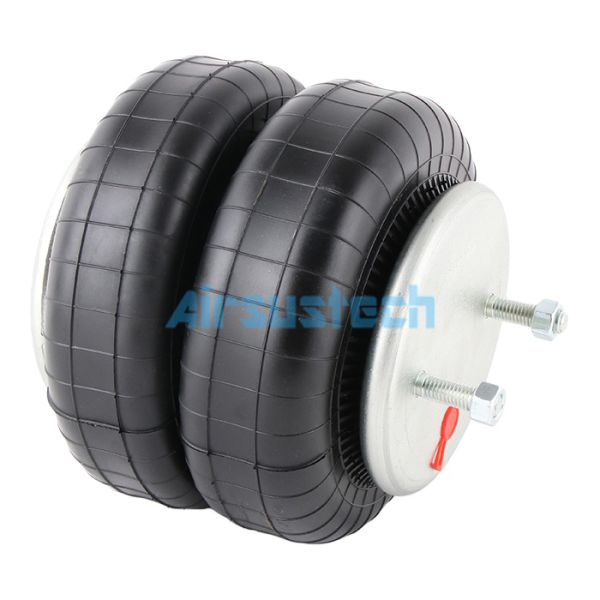

The Real Pictures of 2B6943

Firestone Industrial Air Spring W01-358-6943 Double Convoluted Pneumatic ActuatorFirestone Industrial Air Spring W01-358-6943 Double Convoluted Pneumatic Actuator


Our Technicians Checked the Specifications of Air Springs
Firestone Industrial Air Spring W01-358-6943 Double Convoluted Pneumatic Actuator

Factory Workshop
Firestone Industrial Air Spring W01-358-6943 Double Convoluted Pneumatic Actuator
