Imperial Size 1K130090 AIRSUSTECH Air Actuator Goodyear 1B5-510 High Replacement
Imperial Size 1K130090 AIRSUSTECH Air Actuator Goodyear 1B5-510 High Replacement
Imperial Size 1K130090 AIRSUSTECH Air Actuator Goodyear 1B5-510 High Replacement
Imperial Size 1K130090 AIRSUSTECH Air Actuator Goodyear 1B5-510 High Replacement
Imperial Size 1K130090 AIRSUSTECH Air Actuator Goodyear 1B5-510 High Replacement
Imperial Size 1K130090 AIRSUSTECH Air Actuator Goodyear 1B5-510 High Replacement
Imperial Size 1K130090 AIRSUSTECH Air Actuator Goodyear 1B5-510 High Replacement
Imperial Size 1K130090 AIRSUSTECH Air Actuator Goodyear 1B5-510 High Replacement
Specifications
Supply Ability :
1000 PCS/Week
Standard :
OEM Standard
Brand Name :
AIRSUSTECH
Plate Material :
Aluminum
Model Number :
1K130090
Air Port Size :
1/4'' BSP
MOQ :
1 Piece
Delivery Time :
3-8 Working Days
Goodyear :
1B5-510
Payment Terms :
T/T,,Paypal or Others,L/C,D/A,D/P,MoneyGram
PCD :
44.5 MM
Manufacturer :
AIRSUSTECH
Price :
Negotiable
Number of Ply Bellows :
1
AIRSUSTECH No. :
1K130090
HS Code :
870880
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
Max. Diameter :
ø150 MM
Packaging Details :
Strong Carton Box or as Customers Requirement
Description

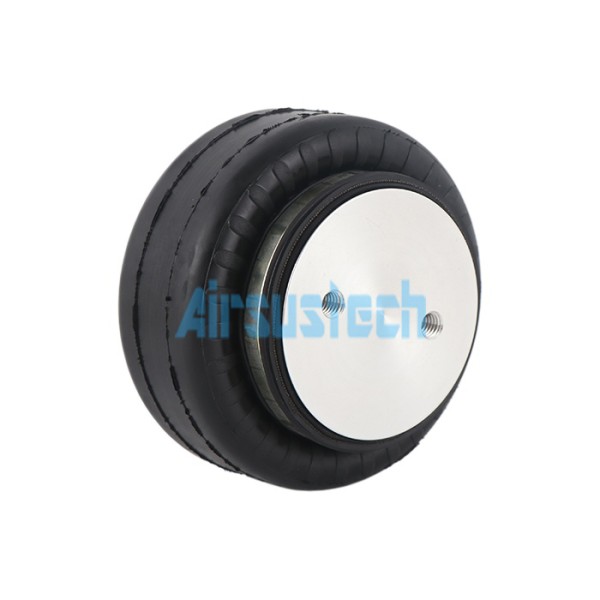

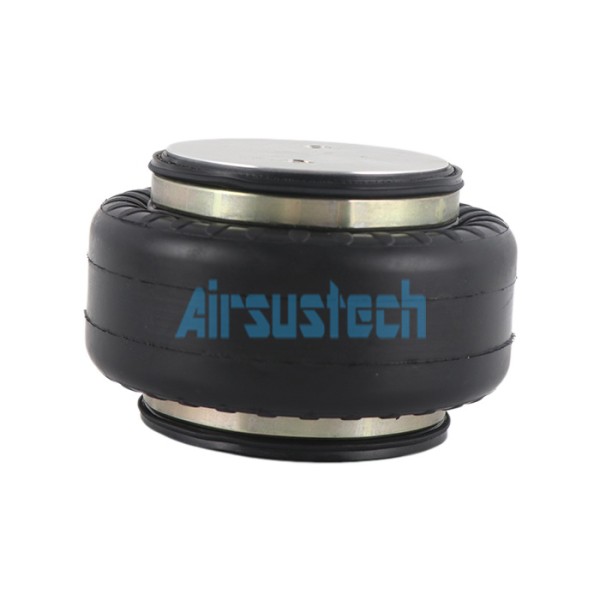

Imperial Size 1K130090 AIRSUSTECH Air Actuator - Goodyear 1B5-510 High Replacement
AIRSUSTECH air springs deliver reliable performance in both pneumatic actuator and vibration isolation applications. As actuators, they generate precise linear or angular movement for industrial equipment requiring controlled motion. Compared to traditional pneumatic cylinders, AIRSUSTECH air springs offer superior stroke-to-compressed-height ratios and compatibility with various operating media.
The flexible construction ensures smooth movement while maintaining compact installation dimensions. As vibration isolation components, these air springs effectively mitigate vibration and shock impacts while allowing height adjustment through air pressure control, ensuring consistent isolation performance under varying load conditions.
OEM Compatibility & Cross-References
Goodyear
Part Numbers: 1B5-510 / 1B5510 / 1B5 510
Part Numbers: 579-91-3-501 / 579913501 / 579 91 3 501
Enidine
Part Numbers: YI-1B5-510 / YI1B5510 / YI 1B5 510
1K130090 Technical Specifications
Top Cover Plate Diameter: ø85 mm
Top Screw Center Distance: ø44.5 mm
Bottom Cover Plate Diameter: ø85 mm
Bottom Screw Center Distance: ø44.5 mm
Top Screw Thread: 2X3/8" UNC
Bottom Screw Thread: 2X3/8" UNC
Air Supply Connection: 1/4" BSP
Maximum Outer Diameter: ø150 mm
Extended Height: 120 mm
Compressed Height: 50 mm
Goodyear Single Convolutions Cross-Reference Chart
Goodyear Bellows No. Goodyear Part No. Goodyear Bellows No. Goodyear Part No.
578-91-3-301 1B12-301 579-91-3-501 1B5-510
578-91-3-301 1B12-305 579-91-3-532 1B8-564
578-91-3-301 1B12-306 578-91-3-351 1B14-350
578-91-3-301 1B12-313 578-91-3-351 1B14-351
578-91-3-301 1B12-322 578-91-3-351 1B14-373
578-91-3-352 1B14-358
Product Images
Imperial Size 1K130090 AIRSUSTECH Air Actuator Goodyear 1B5-510 High Replacement Imperial Size 1K130090 AIRSUSTECH Air Actuator Goodyear 1B5-510 High Replacement
AIRSUSTECH Air Spring Varieties
Imperial Size 1K130090 AIRSUSTECH Air Actuator Goodyear 1B5-510 High Replacement
Manufacturing Excellence
Imperial Size 1K130090 AIRSUSTECH Air Actuator Goodyear 1B5-510 High Replacement
Available Air Spring Configurations
  • Single Convoluted Air Springs
  • Double Convoluted Air Springs
  • Triple Convoluted Air Springs
  • Rolling Lobe Air Springs
  • Sleeve Air Springs
