Specifications
Number of Ply Bellows :
2
Model Number :
2H250180
Function :
Reduce Vibration Isolation
MOQ :
1 Piece
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Durability :
High
Payment Terms :
T/T, Paypal or Others
Type of Goods :
Rubber Bellows Only
Brand Name :
AIRSUSTECH
Refer :
Phoenix 2B 15 R
Place of Origin :
Guangzhou, China
Condition :
Brand New
Price :
Negotiable
Max. Lifting Pressure :
8 Bar
Supply Ability :
1000 PCS/Week
After-sales Service :
12 Months
Certification :
ISO/TS16949:2009
Description
ø250 MM Natural O.D. Phoenix 2B 15 R Rubber Bellows Air Spring Double Convoluted
AIRSUSTECH 2H250180 is a replacement rubber bellows for Phoenix 2B 15 R. It is supplied as the flexible bellows component rather than a complete air spring assembly, making it suitable for maintenance and refurbishment projects where the existing end hardware remains serviceable.
Key Dimensions Comparison
Parameter AIRSUSTECH 2H250180 Phoenix 2B 15 R
Product Type rubber bellows only rubber bellows only
Natural Diameter 250 mm 250 mm
Max. Diameter - 270 mm
Design Height 180 mm 185 mm
Inner Diameter of the Opening 93 mm -
Outside Diameter of the Opening 130 mm 129 mm
How to Identify a Phoenix 2B 15 R Replacement Bellows
When identifying a replacement bellows for a Phoenix 2B 15 R, the part number is a useful starting point, but the physical characteristics of the existing unit should also be checked.
  • Bellows Diameter: The bellows has an approximate diameter of 250 mm. Measure the existing bellows and compare the dimension before selecting a replacement.
  • Number of Convolutions: Check that the bellows uses a two-convolution design. The number of convolutions affects the available movement and overall operating range.
  • Overall / Working Height: Measure the existing assembly and compare its working height with the replacement bellows. The required height and stroke should suit the actual installation.
  • End-Closure Geometry: Inspect the bead and end-closure configuration carefully. The replacement bellows must be compatible with the existing end plates, clamps, or other mounting components.
  • Bellows Condition: Look for visible signs of aging or damage, including cracks, abrasion, deformation, or surface deterioration. These conditions can indicate that the bellows should be replaced.
AIRSUSTECH Compatibility with Firestone Rubber Bellows
AIRSUSTECH is compatible with Firestone rubber bellows only
Firestone Firestone Bellows No. Firestone Firestone Bellows No.
W01-095-0009 Style 20 W01-R58-4036 6 X 2
W01-095-0219 Style 260 W01-R58-4085 8 X 1
W01-R58-4087 Style 270 W01-R58-4045 8 X 2
W01-R58-4088 Style 270 W01-R58-4048 10 X 2
W01-R58-4089 Style 271 W01-R58-4047 10 X 3
W01-095-0532 Style 290-3 W01-R58-4044 12 X 2
W01-095-0464 Style 290 W01-R58-4046 12 X 3
W01-R58-4043 4 1/2 X 1 W01-R58-4023 16 X 2
W01-R58-4076 4 1/2 X 2

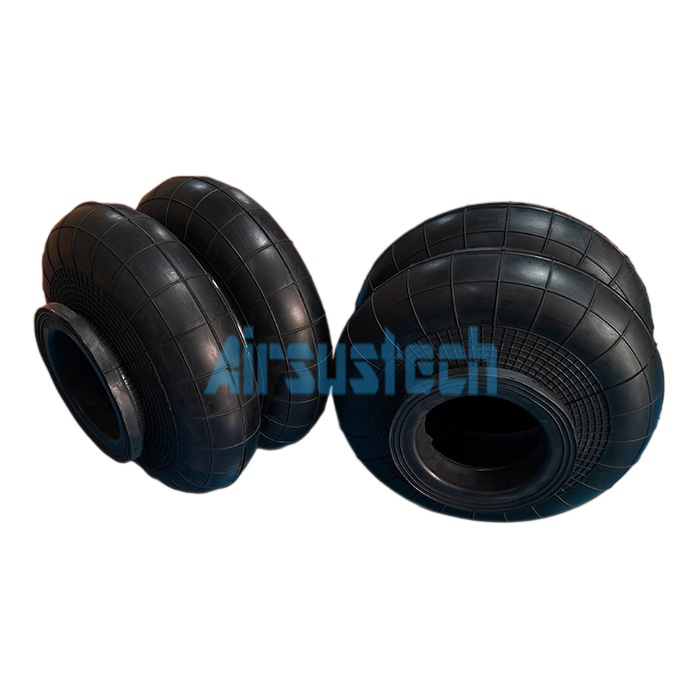

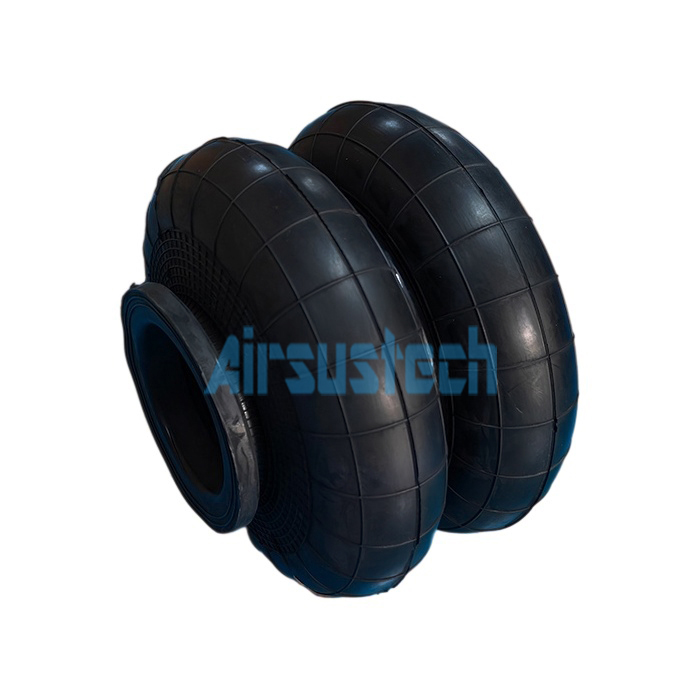

2H250180 Double Type Rubber Bellows Images
ø250 MM Natural O.D. Phoenix 2B 15 R Rubber Bellows Air Spring Double Convoluted ø250 MM Natural O.D. Phoenix 2B 15 R Rubber Bellows Air Spring Double Convoluted
Different Types of AIRSUSTECH Air Springs
ø250 MM Natural O.D. Phoenix 2B 15 R Rubber Bellows Air Spring Double Convoluted
Advanced Manufacturing Capabilities
ø250 MM Natural O.D. Phoenix 2B 15 R Rubber Bellows Air Spring Double Convoluted
