Specifications
Model Number :
1B6X1T
PCD :
ø127 MM
MOQ :
1 Piece
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Payment Terms :
T/T, Paypal or Others
Factory Warranty :
12 Months
Manufacturer :
AIRSUSTECH
Production Process :
Vulcanization
Brand Name :
AIRSUSTECH
Cross :
Parker 9109004
Place of Origin :
Guangzhou, China
Durability :
High
Bolts Specification :
4-M10
Price :
Negotiable
Compatibility :
Adjustable
Supply Ability :
1000 PCS/Week
Number of Ply Bellows :
1
Certification :
ISO/TS16949:2009
Description
Single Convoluted Pneumatic Cylinder Contitech FS 76-7 DS G1/2 M10 Air Spring
High-performance single convolution pneumatic cylinder designed for industrial applications requiring precise vibration isolation and pneumatic actuation.
Product Specifications: AIRSUSTECH vs. Contitech
AIRSUSTECH 1B6X1T Contitech FS 76-7 DS
Upper and lower plate diameter: ø153.5 mm Upper and lower plate diameter: ø153.5 mm
PCD: ø127 mm PCD: ø127 mm
Design height: 77.5 mm Minimum height: 50 mm
Natural diameter: ø159 mm Maximum height: 105 mm
Air connection: G1/2 Max. outer diameter: ø190 mm
Bolts Specification: 4-M10 Installation space: ø190 mm
Bolts Length: 25 mm Air inlet: G1/2
Bolts type: 4-M10
Bolts length: 25 mm
Cross-Reference Listing
  • Contitech: FS 76-7 DS / FS 76 7 DS / FS 767 DS / FS 76-7 DS G1/2 / FS 76-7 DS M10 / FS 76-7 DS G1/2 M10 / Order No. 70216
  • Firestone: W01-R58-4052 / WO1-R58-4052 / W01R584052 / WO1R584052 / W01 R58 4052 / WO1 R58 4052
  • Dunlop: Pneuride 6"X1 (Steel) / Pneuride 6X1 (Steel) / Pneuride 6'X1 (Steel) / Springride SP1536 / PNP 30551 01 13 / PNP305510113
  • Norgren: M/31061 / M31061 / M 31061
  • Parker: 9109004
  • Oria: 6''X1ST / 6'X1ST / 6X1ST
Vibration Isolation - Dynamic Characteristics Values
Pressure P [bar] 3 4 5 6 7 8
Force (Load) [kN] 3.1 4.2 5.3 6.4 7.5 8.7
Spring Rate [N/cm] 158.5 200.5 245.5 286 331.5 374.5
Natural Frequency [Hz] 3.5 3.4 3.4 3.3 3.3 3.3
Pneumatic Application - Static Characteristic
Pressure p [bar] 3 4 5 6 7 8
Height H [mm] 90 2.66 3.63 4.62 5.62 6.67 7.75
Height H [mm] 80 3.43 4.63 5.84 7.05 8.32 9.63
Height H [mm] 70 4.17 5.57 6.99 8.42 9.89 11.4
Height H [mm] 60 4.94 6.54 8.19 9.83 11.5 13.2
AIRSUSTECH Can Replace These Contitech Air Bags
  • Contitech Pneumatic Actuator FS 22-3 DI G 1/4 M6
  • Contitech Pneumatic Actuator FS 44-5 DI G 3/8 M6
  • Contitech Pneumatic Actuator FS 76-7 DI G 1/2 M8
  • Contitech Pneumatic Actuator FS 76-7 DS G 1/2 M10
  • Contitech Pneumatic Actuator FS 138-8 DS G 1/2 M10
  • Contitech Pneumatic Actuator FS 210-10 DS G 1/2 M10
  • Contitech Pneumatic Actuator FS 412-10 DS G 1/2 M10
  • Contitech Pneumatic Actuator FS 614-13 DS G 1/2 M10
  • Contitech Pneumatic Actuator FS 816-15 DS G 1/2 M10
  • Contitech Air Spring FD 22-4 DI G 1/4 M6
  • Contitech Air Spring FD 44-10 DI G 3/8 M6
  • Contitech Air Spring FD 76-14 DI G 1/2 M8
  • Contitech Air Spring FD 76-14 DS G 1/2 M10
  • Contitech Air Spring FD 138-18 DS G 1/2 M10
  • Contitech Air Spring FD 210-22 DS G 1/2 M10
  • Contitech Air Spring FD 412-22 DS G 1/2 M10
  • Contitech Air Spring FD 614-26 DS G 1/2 M10
  • Contitech Air Spring FD 816-30 DS G 1/2 M10
  • Contitech Air Suspension FT 22-6 DI G 1/4 M6
  • Contitech Air Suspension FT 44-15 DI G 3/8 M6
  • Contitech Air Suspension FT 76-20 DS G 1/2 M10
  • Contitech Air Suspension FT 138-26 DS G 1/2 M10
  • Contitech Air Suspension FT 138-26 DS G 1/2 M10
  • Contitech Air Suspension FT 210-32 DS G 1/2 M10
  • Contitech Air Suspension FT 412-32 DS G 1/2 M10
  • Contitech Air Suspension FT 614-36 DS G 1/2 M10
  • Contitech Air Suspension FT 816-40 DS G 1/2 M10

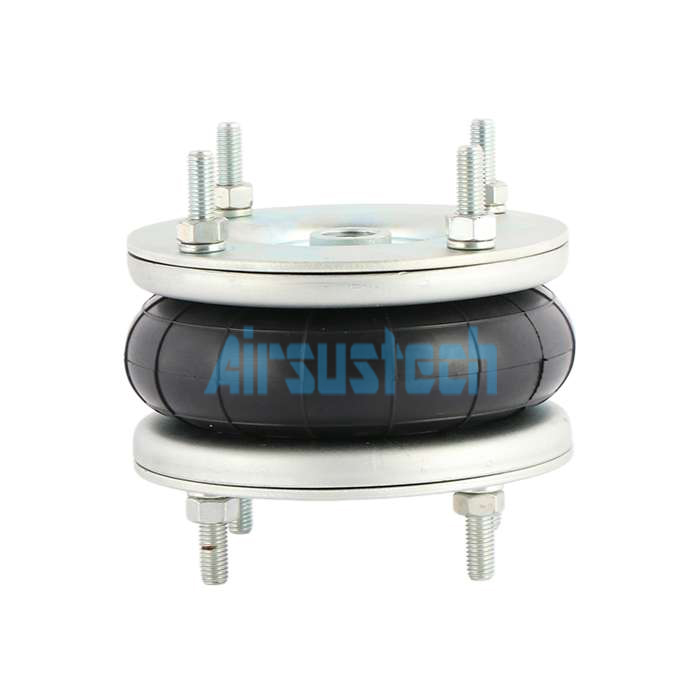

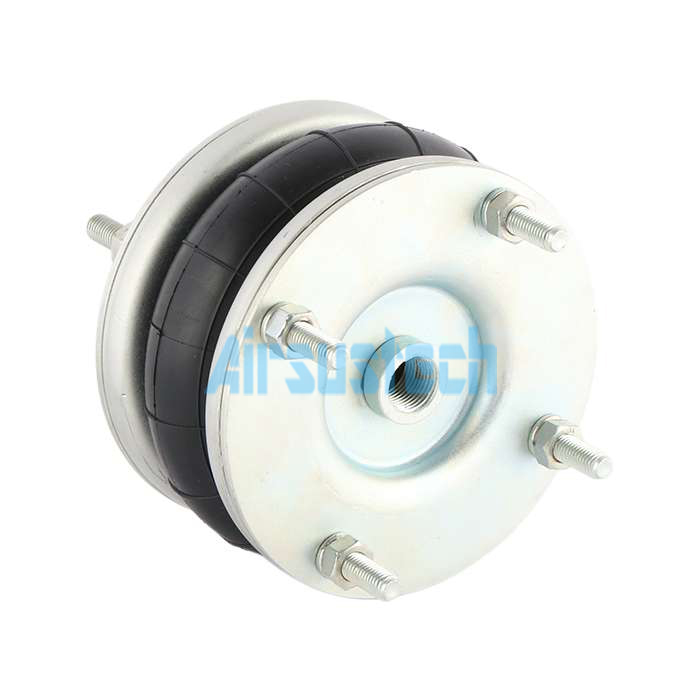

Product Images
Single Convoluted Pneumatic Cylinder Contitech FS 76-7 DS G1/2 M10 Air Spring Single Convoluted Pneumatic Cylinder Contitech FS 76-7 DS G1/2 M10 Air Spring
Different Types of AIRSUSTECH Air Springs
Single Convoluted Pneumatic Cylinder Contitech FS 76-7 DS G1/2 M10 Air Spring
Advanced Manufacturing Capabilities
Single Convoluted Pneumatic Cylinder Contitech FS 76-7 DS G1/2 M10 Air Spring
