Specifications
Supply Ability :
1000pcs/week
Payment Terms :
T/T, Western Union,Paypal or Others
Place of Origin :
Guangzhou, China
Brand Name :
AIRSUSTECH
Certification :
ISO/TS16949:2009
MOQ :
3 pieces
Packaging Details :
Strong Carton Box or as Customers Requirement
Delivery Time :
3-8 Working Days
Model Number :
F-160-2
N.W. :
1.85 Kg
Warranty :
One Year
Pressure Ability :
0.2-0.88 MPa
Design High :
98 mm
Color :
Black
Bumper Block :
Without
Minimum Height :
53 mm
Stroke :
70 mm
Max Diameter :
220 mm
Vibration Frequency :
2
Trademark :
Neutral
Transport Package :
Cartons
Specification :
24*24*12cm
Origin :
China
HS Code :
8708809000
Port :
Huangpu, China
Function :
Reduce Vibration
Material :
Rubber
Usage :
Industrial
Load Type :
Compression
Production Process :
Vulcanization
Shape :
Convoluted
Description

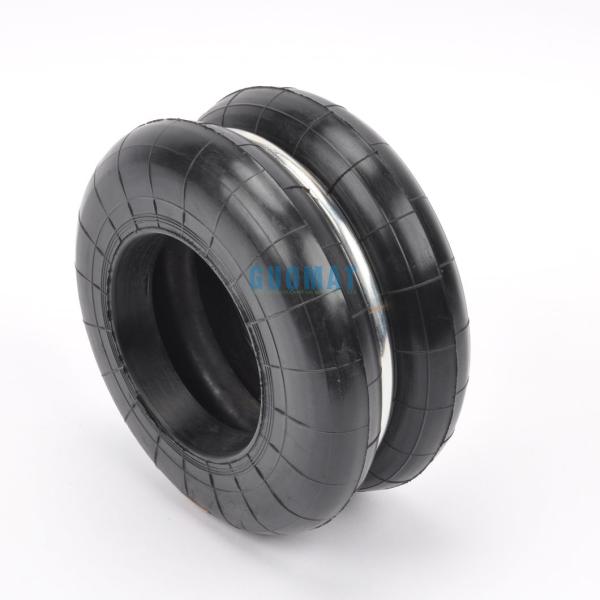

Yokohama Air Spring S-160-2r with Steel Girdle Ring for Small Punch and Paper Making Equipment


S-160 items Detailed Parameter Table:

GUOMAT NO. Reference No. Hight H(mm) Commonly Maximum Stroke(mm) The Largest Diameter When Compressed(mm)
Design High(mm) Maximum High(mm) Minimum Height(mm)
F-160-1 S-160-1 72 102 40 ±25 220
F-160-2 S-160-2 98 148 53 ±35 220
F-160-3 S-160-3 152 227 82 ±53 220
F-160-4 S-160-4 206 306 111 ±70 220

GUOMAT NO. Reference No. Standard Height,Internal Pressure 0.49 M pa When The General Value Using Maximum Internal Pressure (M pa) Internal Pressure (M pa)
Effective Area (Cm2) Volume(L) Load (K n) Dynamic Spring Parameters (N/Min) Vibration Frequency (Hz)
F-160-1 S-160-1 200 1.9 9.8 636 3 0.69 2.9-3.9
F-160-2 S-160-2 200 2.1 9.8 255 2.5 0.88 2.9-3.9
F-160-3 S-160-3 200 3.4 9.8 157 2 0.88 2.9-3.9
F-160-4 S-160-4 200 4.7 9.8 118 1.7 0.88 2.9-3.9


Packaging Information:

Net Weight:1.85 KG
Gross Weight:2.35 KG
Package Size:110mm*220mm*220mm

S-160-2R air spring may fits below items
Bronzing machine
Shock absorption
Roller tension
Quick lock device
Reel tension
Machine isolation
Scissor lift
Mechanical hopper vibration and damping treatment stop
Direct force
Platform lift
Short stroke mechanical linkage

GUOMAT Has Punch Press Air Spring Cushion /Air Shock Absorber Part NO. Below:

GUOMAT Part NO. Japan YOKOHAMA Reference No. Japan YOKOHAMA Reference No. GUOMAT Part NO. Japan YOKOHAMA Reference No. Japan YOKOHAMA Reference No.
F-600-1 F-600-R1 600-1r F-240-4 F-240-R4 240-4r
F-600-2 F-600-R2 600-2r F-240-3 F-240-R3 240-3r
F-600-3 F-600-R3 600-3r F-240-2 F-240-R2 240-2r
F-600-4 F-600-R4 600-4r F-240-1 F-240-R1 240-1r
F-600-5 F-600-R5 600-5r F-220-4 F-220-R4 220-4r
F-550-2 F-550-R2 550-2r F-220-3 F-220-R3 220-3r
F-550-3 F-550-R3 550-3r F-220-2 F-220-R2 220-2r
F-500-2 F-500-R2 500-2r F-200-2 F-200-R2 200-2r
F-500-3 F-500-R3 500-3r F-200-3 F-200-R3 200-3r
F-500-4 F-500-R4 500-4r F-200-4 F-200-R4 200-4r
F-500-5 F-500-R5 500-5r F-160-1 F-160-R1 160-1r
F-450-1 F-450-R1 450-1r F-160-2 F-160-R2 160-2r
F-450-2 F-450-R2 450-2r F-160-3 F-160-R3 160-3r
F-450-3 F-450-R3 450-3r F-160-4 F-160-R4 160-4r
F-450-4 F-450-R4 450-4r F-120-4 F-120-R4 120-4r
F-450-5 F-450-R5 450-5r F-120-3 F-120-R3 120-3r
F-400-2 F-400-R2 400-2r F-120-2 F-120-R2 120-2r
F-400-3 F-400-R3 400-3r F-100-4 F-100-R4 100-4r
F-400-4 F-400-R4 400-4r F-90-3 F-90-R3 90-3r
F-400-5 F-400-R5 400-5r F-90-2 F-90-R2 90-2r
F-350-1 F-350-R1 350-1r F-90-1 F-90-R1 90-1r
F-350-2 F-350-R2 350-2r F-300-1 F-300-R1 300-1r
F-350-3 F-350-R3 350-3r F-300-2 F-300-R2 300-2r
F-350-4 F-350-R4 350-4r F-300-3 F-300-R3 300-3r
F-300-4 F-300-R4 300-4r
