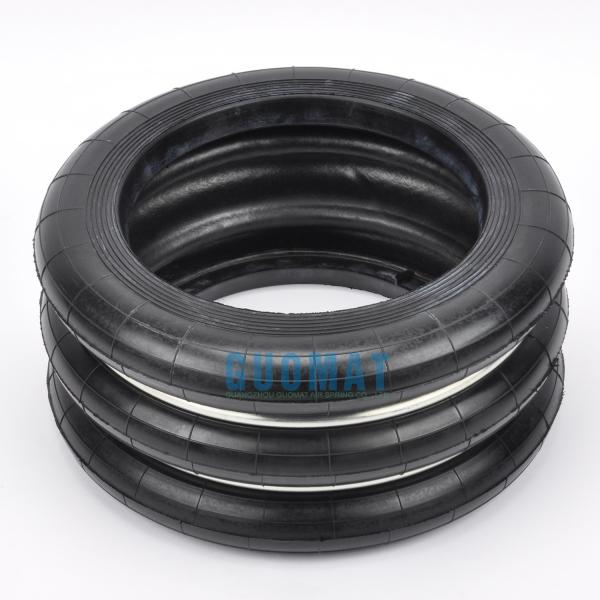

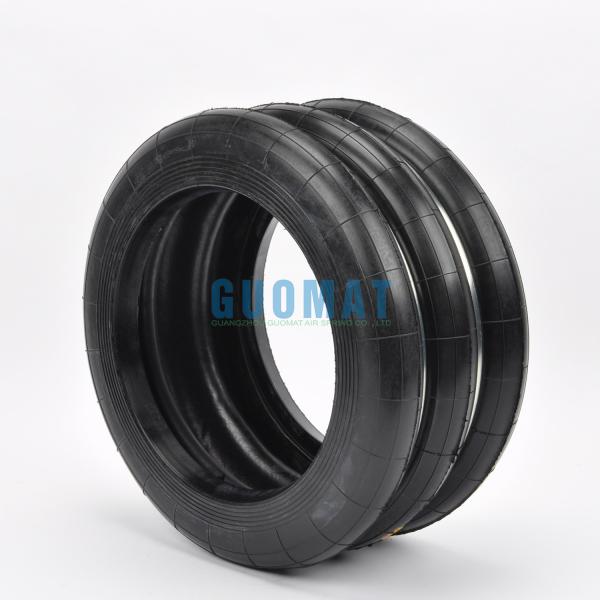

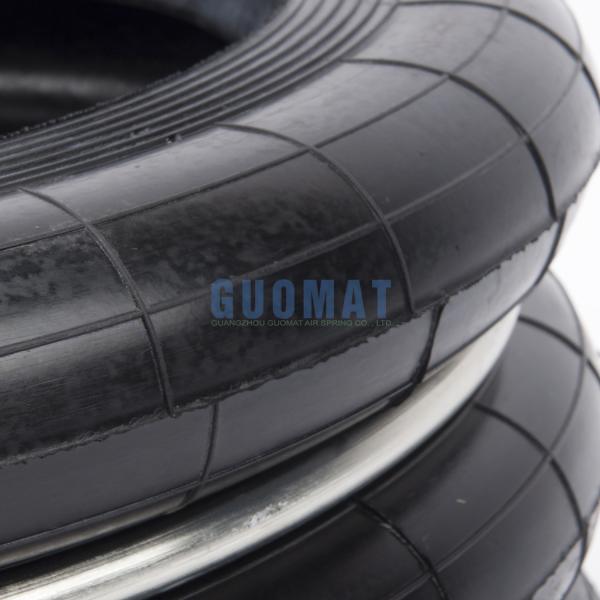

300-3 Yokohama Air Spring S240-3R Convoluted Bellow Air Bags AIRSUSTECH
300-3 Yokohama Air Spring S240-3R Convoluted Bellow Air Bags AIRSUSTECH
300-3 Yokohama Air Spring S240-3R Convoluted Bellow Air Bags AIRSUSTECH
300-3 Yokohama Air Spring S240-3R Convoluted Bellow Air Bags AIRSUSTECH
300-3 Yokohama Air Spring S240-3R Convoluted Bellow Air Bags AIRSUSTECH
300-3 Yokohama Air Spring S240-3R Convoluted Bellow Air Bags AIRSUSTECH
300-3 Yokohama Air Spring S240-3R Convoluted Bellow Air Bags AIRSUSTECH
300-3 Yokohama Air Spring S240-3R Convoluted Bellow Air Bags AIRSUSTECH
300-3 Yokohama Air Spring S240-3R Convoluted Bellow Air Bags AIRSUSTECH
300-3 Yokohama Air Spring S240-3R Convoluted Bellow Air Bags AIRSUSTECH
300-3 Yokohama Air Spring S240-3R Convoluted Bellow Air Bags AIRSUSTECH
300-3 Yokohama Air Spring S240-3R Convoluted Bellow Air Bags AIRSUSTECH
Specifications
Supply Ability :
1000pcs/week
Payment Terms :
T/T, Western Union,Paypal or Others
Place of Origin :
Guangzhou, China
Brand Name :
AIRSUSTECH
Certification :
ISO/TS16949:2009
MOQ :
3 pieces
Packaging Details :
Strong Carton Box or as Customers Requirement
Delivery Time :
3-8 Working Days
Model Number :
F-300-3
N.W. :
5.75 Kg
Warranty :
One Year
Pressure Ability :
0.2-0.88 MPa
Design High :
152 mm
Color :
Black
Bumper Block :
Without
Minimum Height :
82 mm
Stroke :
120 mm
Max Diameter :
370 mm
Vibration Frequency :
1.9 Hz
Trademark :
Neutral
Transport Package :
Cartons
Specification :
350mm*350mm*16mm
Origin :
China
HS Code :
8708809000
Port :
Huangpu, China
Function :
Reduce Vibration
Material :
Rubber
Usage :
Industrial
Load Type :
Compression
Production Process :
Vulcanization
Shape :
Convoluted
Description

300-3 Yokohama Air Spring S240-3r 3 Convolution 0.88 MPa For Pneumatic Control System of Paper Machine

AIRSUSTECH F-300-3 Cross other OE:

AIRSUSTECH Part No.: F-300-3

Yokohama Part No.: S-300-3

Yokohama Part No.: S300-3

Yokohama Part No.: S-300-3R

Yokohama Part No.: S300-3R

AIRSUSTECH F-300-3 Weight and packing size:

Net Weight:5.75 KG

Gross Weight:6.5 KG

Package Size:350mm*350mm*16mm

Compressed height: 90mm

Maximum Height:215mm

Full stroke:125mm

Working medium:water, air

Working pressure:< 0.7Mpa

Burst pressure:> 1.6Mpa

Endurance cycle:> 10"

Temperature:-35℃ ~+60℃

F-300 Air Spring Catalogue items Detailed Parameter Table:

GUOMAT NO. Reference No. Hight H(mm) Commonly Maximum Stroke(mm) The Largest Diameter When Compressed(mm)
Design High(mm) Maximum High(mm) Minimum Height(mm)
F-300-1 S-300-1 72 117 40 ±30 400
F-300-2 S-300-2 98 158 53 ±40 360
F-300-3 S-300-3 152 242 82 ±60 360
F-300-4 S-300-4 206 326 111 ±80 360

GUOMAT NO. Reference No. Standard Height,Internal Pressure 0.49 M pa When The General Value Using Maximum Internal Pressure (M pa) Internal Pressure (M pa)
Effective Area (Cm2) Volume(L) Load (K n) Dynamic Spring Parameters (N/Min) Vibration Frequency (Hz)
F-300-1 S-300-1 710 5.6 34.7 1180 2.8 0.69 2.9-3.9
F-300-2 S-300-2 710 7.4 34.7 745 2.3 0.88 3.9-4.9
F-300-3 S-300-3 710 11.2 34.7 490 1.9 0.88 3.9-4.9
F-300-4 S-300-4 710 15.5 34.7 324 1.5 0.88 3.9-4.9

This item can fits for many kinds of machines

  1. Actuators for concrete block machinery
  2. Mineral equipment air spring,
  3. Directional-change actuators in roller conveying systems
  4. Actuators for flask lifts on foundry shake-outs
  5. Mountain bike
  6. Actuators on bottle and carton filling machines
  7. Bin-tilting actuators (for ease of access)
  8. Paper machine equipment air spring air spring,
  9. Actuators on transfer tables
  10. Vibrating screen cover clamping device
  11. Actuators in sand blast rooms
  12. Actuators in glass grinding rooms
  13. Industrial laundry equipment actuators
  14. Crawling pipeline machine
