6X2 DUNLOP Air Spring G1/2 W01-R58-4036 Firestone Air Spring
6X2 DUNLOP Air Spring G1/2 W01-R58-4036 Firestone Air Spring
6X2 DUNLOP Air Spring G1/2 W01-R58-4036 Firestone Air Spring
6X2 DUNLOP Air Spring G1/2 W01-R58-4036 Firestone Air Spring
6X2 DUNLOP Air Spring G1/2 W01-R58-4036 Firestone Air Spring
6X2 DUNLOP Air Spring G1/2 W01-R58-4036 Firestone Air Spring
Specifications
Brand Name :
AIRSUSTECH
Model Number :
6X2
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
3 pieces
Payment Terms :
T/T, Western Union,Paypal or Others
Supply Ability :
1000pcs/week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Model NO. :
W01-R58-4036
N.W. :
2,65 KG
Warranty :
One Year
Pressure Ability :
0.2-0.8 M PA
Other OEM :
6"X2
Top Plate Dia :
153.5 mm
Bottom Plate Dia :
153.5 mm
Air Inlet :
G1/2
Bumper :
Without
Trademark :
Norgren
Transport Package :
Cartons
Specification :
24*24*24 cm
Origin :
China
HS Code :
8708809000
Port :
Huangpu, China
Function :
Reduce Vibration
Material :
Rubber and Aluminum
Usage :
Industrial
Load Type :
Compression
Production Process :
Vulcanization
Shape :
Convoluted
Description

W01-R58-4036 Firestone Air Spring Bellows NO. 6X2 DUNLOP SP543 Cushion


AIRSUSTECH 6x2 OEM Reference:

AIRSUSTECH 6x2

Firestone W01-R58-4036/Firestone W01 R58 4036/Firestone W01R584036

Norgren: M/31062 / M 31062 / M31062

Nominal Ø (inch) x convolutions: 6″ x 2 / 6″x2 / 6×2

Dunlop FR: SP543

Dunlop FR: SP 543

Dunlop UK (Pneuride): PNP 30550 01 12 / PNP30550 0112

Double Convoluted Air Spring 2B180-115 D185

Double Convoluted Air Spring 2B180-115 D185

Replaces These Air Springs (Air Bellows)

ContiTech: FD 76-14 1/2 M10

ContiTech: FD 76-14 DS G1/2

ContiTech: FD 76-14 DS G1/2 CR

ContiTech: FD 76-14 DS CR G1/2

ContiTech: FD 76-14 DS CR / FD76-14DSCR / FD7614DSCR

ContiTech Bellow: FD 76-14 / FD76-14 / FD7614

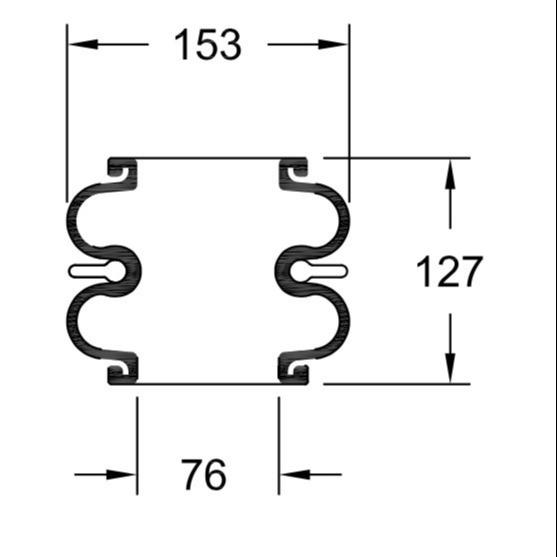

Specifications and Detail Technical Parameters

Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 4pcs X M8

Bottom Cover Plate Screw (Nut) Tooth : 4pcs X M8

Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : G1/2

Cover Plate

Top Cover Plate Diameter (Width): 153.5 mm

Bottom Cover Plate Diameter (Width): 153.5 mm

Material top and bottom plate:Aluminium

Rubber Bellows

Diameter max at 7 bar:175MM

Stroke of Rubber Bellows:80mm-195m

Bumper block / Buffer block

Without Bumper Block

Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop

max load at 80 mm height and 8 bar:1415 daN

Other kinds of model air bellows:

Firestone Parts NO.: W01-R58-4070 - (6 x 2 Alu )

Firestone Parts NO.: W01-R58-4053 - (6 x 2 Steel )

Firestone Parts NO.: W01-R58-4078 - (6 x1 Alu )

Firestone Parts NO.: W01-R58-4081 (2 3/4" x3)

Firestone Parts NO.: W01-R58-4051 Dunlop Style 4,5 " x 2

Firestone Parts NO.: W01-R58-4052 - (6" x1 steel)

Firestone Parts NO.: W01-R58-4057 - (10 x1 steel)

Firestone Parts NO.: W01-R58-4054 - 8x1 Steel

Firestone Parts NO.: W01-R58-4028 - 8"x1 Epichlorhydrin

Firestone Parts NO.: W01-R58-4027 - 8x2 (Epichlorhydrin / Herclor)

Firestone Parts NO.: W01-R58-4090 - 8"x2 Butyl

Firestone Parts NO.: W01-R58-4055 - 8x2 Steel

Firestone Parts NO.: W01-R58-4060 (12 x1 steel)Firestone Parts NO.: W01-R58-4077 (12 x1 Herclor )

Firestone Parts NO.: W01-R58-4056 -8"x3 Steel

Firestone Parts NO.: W01-R58-4062 (12 x3 Steel)

Firestone Parts NO.: W01-R58-4065 (14 1/2 x3 Steel)

Firestone Parts NO.: W01-R58-4098 (14 1/2 x1 Herclor)

Firestone Parts NO.: W01-R58-4097 (14" 1/2 x2 Herclor)

Firestone Parts NO.: W01-R58-4025 - (10" x1 Epichlorhydrin/Herclor)

Firestone Parts NO.: W01-R58-4059 - (10" x3 steel)

Spar Part Bellow 8"x2 W01-R58-4045

Firestone Parts NO.: W01-R58-4064 -14" 1/2 x2

Firestone Parts NO.: W01-R58-4063 -14 1/2 x1

Bellow only 8" x 1 -- W01-R58-4085

Firestone Parts NO.: W01-R58-4048

W01-R58-4080 - 2 3/4" x 2

Firestone Parts NO.: W01-R58-4060- 12" x2 steel

Firestone Parts NO.: W01-R58-4070 - (6 x 2 V2a )

Firestone Parts NO.: W01-R58-4051E 4,5 x 2 Stainless Steel

Firestone Parts NO.: W01-R58-4050

W01-R58-4080 - 2 3/4" x 1

6X2 DUNLOP Air Spring G1/2 W01-R58-4036 Firestone Air Spring

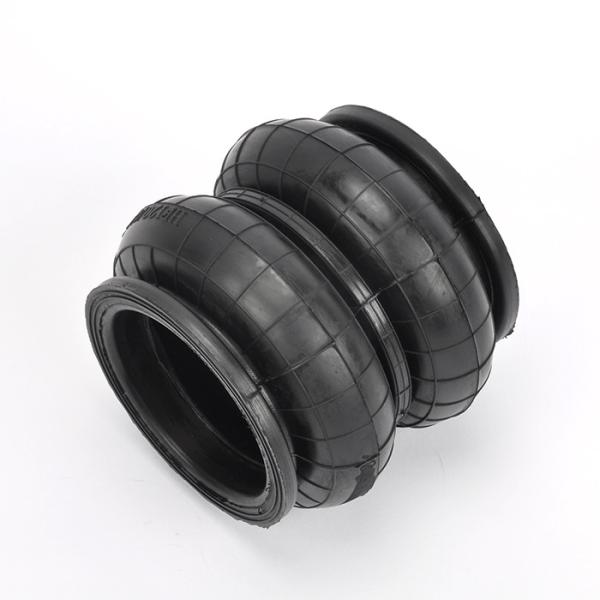

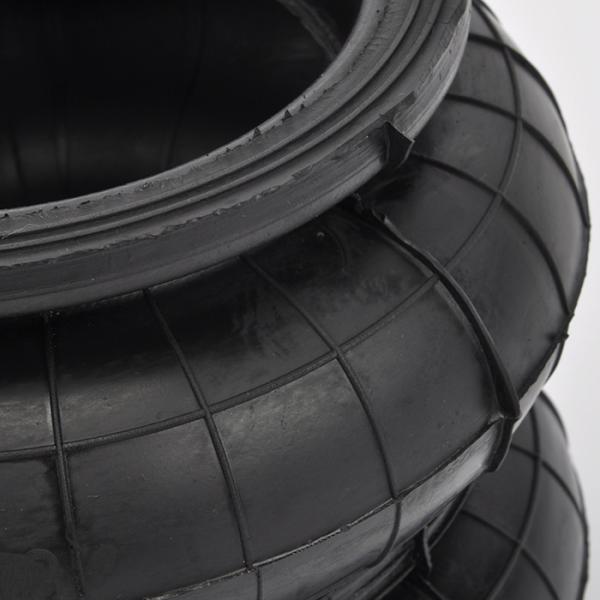

Details pictures 1 of W01-R58-4036 Air Spring:

6X2 DUNLOP Air Spring G1/2 W01-R58-4036 Firestone Air Spring
