Specifications
Supply Ability :
1000pcs/week
Payment Terms :
T/T, Western Union,Paypal or Others
Place of Origin :
Guangzhou, China
Brand Name :
AIRSUSTECH
Certification :
ISO/TS16949, ISO9001
MOQ :
3 pieces
Packaging Details :
Strong Carton Box or as Customers Requirement
Delivery Time :
3-8 Working Days
Model Number :
1B7598
Warranty :
One Year
Pressure Ability :
0.2-0.8 M PA
Air Inlet :
G1/4
Top Plate Hole/Stud :
M8
Bottom Plate Hole/Stud :
M8
Top Plate Dia :
135 mm
Bottom Plate Dia :
135 mm
Trademark :
Neutral
Transport Package :
Cartons
Specification :
24*24*22 cm
Origin :
China
HS Code :
8708809000
Port :
Huangpu, China
Material :
Rubber and Iron
Position :
Front and Rear
OEM :
Yes
Type :
Suspension Spring
N.W. :
2.5 Kg
Description

Firestone Air Spring W01-358-7598 Industrial 1B8-580 Goodyear Maximum Stroke 120mm



Product Description:

Maximum Height (inches) 6.2 Maximum Stroke (pounds) 1460
Maximum Stroke (inches) 4.2 Applicable Technigram? 105
Minimum Usable Height (inches) 2 Material 2-Ply Standard Cord
1 Inch (pounds) 2980 Bead plate Type 1
3 Inch (pounds) 2240 Blind Nut Centers (inches) 2.75
Design Height 5.5

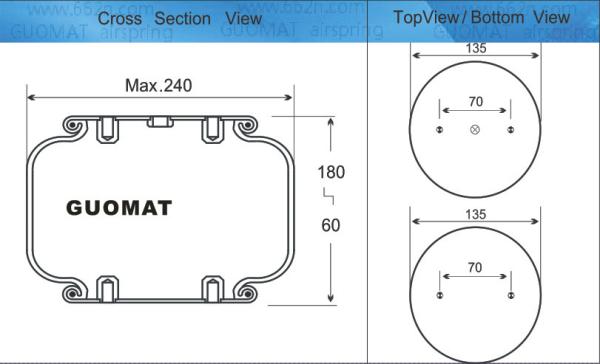

AIRSUSTECH 1B7598 Technical parameters

Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Top Cover Plate : 70 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 70 mm

Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4-18NPTF
Screw Center Distance Between Gas Hole and Nut : 35 mm

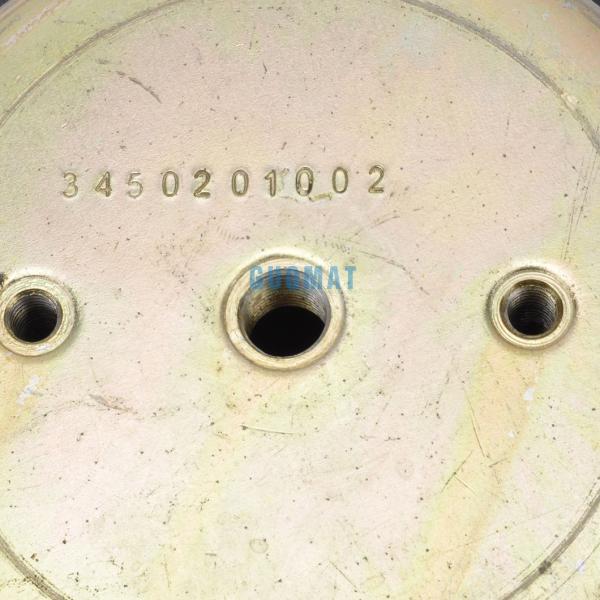

Cover Plate
Top Cover Plate Diameter: 135 mm
Bottom Cover Plate Diameter: 135 mm

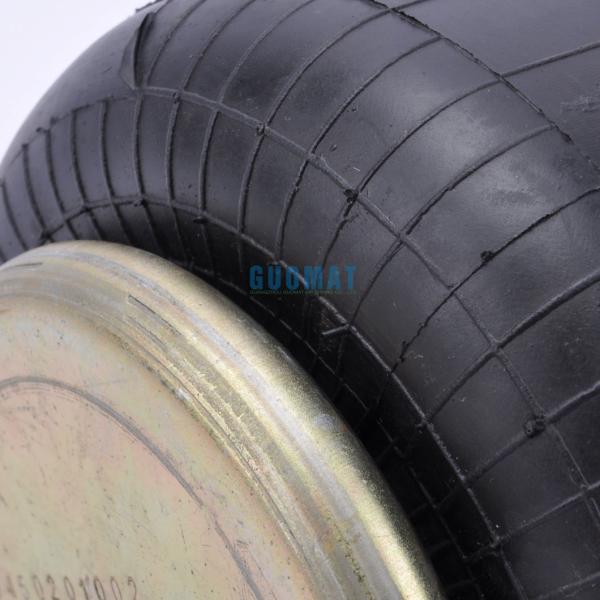

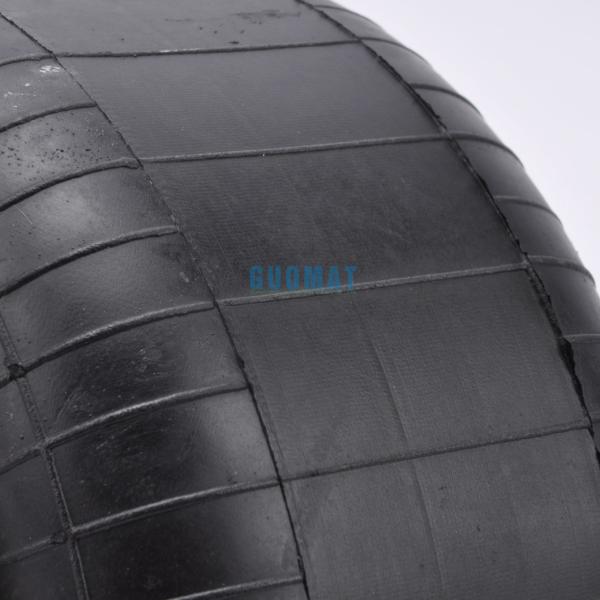

Rubber Bellows
Rubber Bellows MAX Diameter: 240 mm
Rubber Bellows Natural Diameter : 225 mm
The Working Stroke : MIN 60 mm to MAX 180 mm
Maximum Height : 180 mm
Minimum Height :50 mm
Stroke Height : 120mm

Bumper block / Buffer block
Without Bumper Block

Girdle Hoop / Girdle Ring
With Girdle Hoop :no One Pieces of Girdle Hoop


Reference OEM:

Firestone:W013587598,W01-358-7598,W01 358 7598
Goodyear Part # 1B8-157
Goodyear Part #1B8-159
Goodyear Part #1B8-560
Goodyear Part #1B8-563 Goodyear Part #1B8-580
