Festo EB-165-65 Rubber Air Spring Replacement One Convoution Industrial Air Suspension Bag

Cross reference

Festo EB-165-65

Festo EB 165 65

Festo EB165 65

Festo EB16565

Cotitech FS 70-7

Cotitech FS70-7

Cotitech FS 70 7

Cotitech FS70 7

Phoenix SP 1 B 05

Phoenix SP 1B 05

Phoenix SP1 B 05

Phoenix SP1B 05

Phoenix SP1B05

Bosch 82241900

Weforma WBE 200-E1

Weforma WBE 200 E1

Weforma WBE200-E1

Weforma WBE200 E1

Weforma WBE200E1

Specifications and Detailed Technical Parameters:AIRSUSTECH 1B7070

Nut/blind nut

Top plate screw (nut) teeth: 2XM8x1.25

The screw center distance of the top cover plate: 44.5mm

Screw (nut) teeth of the bottom cover plate: 2XM8x1.25

The screw center distance of the bottom cover plate: 44.5 mm

Air hole/air inlet/air fittings

Air hole/air inlet: 1/4

The screw center distance between the air hole and the nut: 22.25mm

Cover plate

Top plate diameter: 105 mm

Diameter of the bottom cover: 105 mm

Bell rubber bellows

Maximum diameter of rubber bellows: 165 mm

Natural diameter of rubber bellows: 150 mm

Required installation diameter: 180mm

Working stroke: 65mm

Maximum height: 115 mm

Minimum height: 50 mm

Bumper block/bumper block

No bumper block

Belt loop/Belt loop/Girdle hoop

With belt loop: Without

Min. pressure: 0 bar

Return force to min.height: ≤200N

Overall weight with clamped plates: 1.2kg

Vibration isolation - dynamic characteristic values

Design Height H: recommended 90mm, minimum 70mm

Pneumatic application-static characteristic values

Force F[KN]

Other festo air springs types replace we could offer

EB-215-80

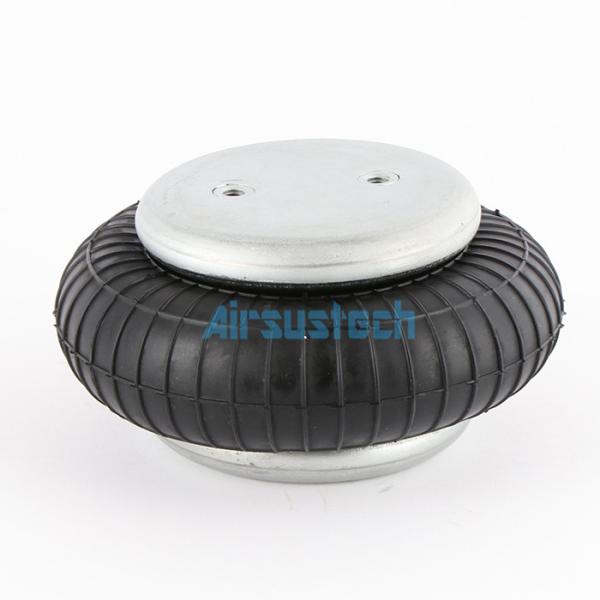

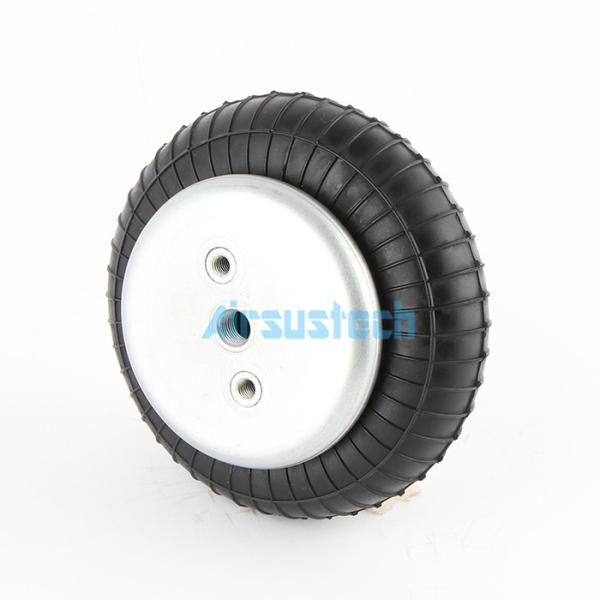

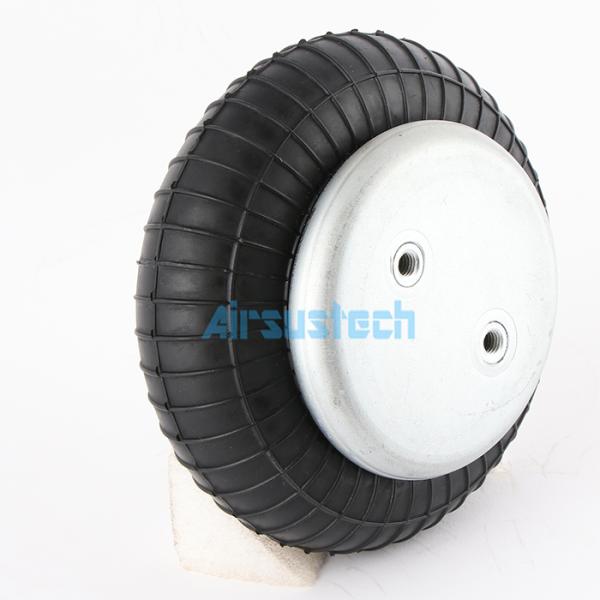

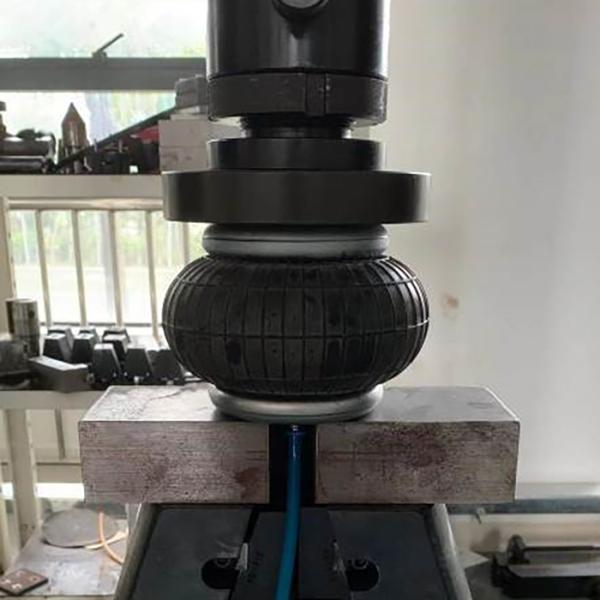

The related picture of 1B7070 air spring

Note

After the rubber air spring is assembled into an assembly, the compressed air is filled into the air spring, and the compressibility of the air is used to realize the elastic effect. The air spring has nonlinear characteristics, and its characteristic line can be designed as an ideal curve according to the needs; the stiffness of the rubber air spring changes with the load, so that the spring device has ideal characteristics: the rubber air spring can withstand the axial and radial direction at the same time. It can also transmit torque to the load: the rubber air spring can obtain different bearing capacities by adjusting the internal pressure, so it can meet the needs of various loads: the rubber air spring is light in weight and has a long service life: the high-frequency vibration isolation of the rubber air spring And sound insulation performance is good. The rubber air spring requires little installation space and is easy to replace.
Rubber air springs are used in many equipment such as sports equipment, precision instruments, laboratory equipment, step-up equipment, mountain bikes and many more
