Pneumatic Bellows Festo EB 250 185 Double Convoluted Industrial Air Springs

Cross Reference

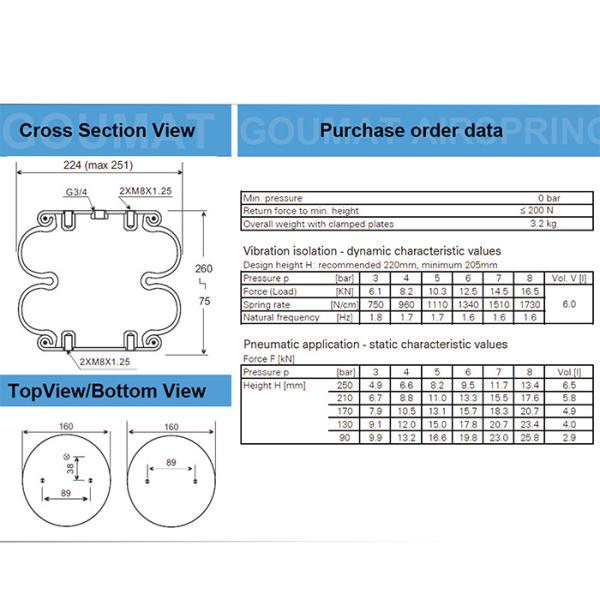

2B6910-3/4 Specifications and Tecnical Data

B1±0.2(Screw center distacne): 89mm
D1∅max.(Rubber bellow max outer diameter):251mm
D2∅(Required fitting space):265mm
D3∅(Cover plate diameter):161mm
EE(Compressed air connection): G3/4
H2 min(Minimum installation height): 75mm
H3 max.(Maximum extended end position):260mm
Double-bellows cylinder
Cylinder Type: Bellows Cylinder
Mode of Operation:Single-Acting
Operating Medium: Compressed Air
Operating Pressure: 0...8bar
HS Code: 8708809000
Sample: Available
Condition: 100% New
Packing: Strong cartons
Applications: Industrial machines or others
Warranty: 1 Year

Type: Industrial air springs

Newt weight: 3.677kg

Gross weght: 4.057kg

Packing size: 24*24*24cm

Packing quantity: 1pcs

About air springs

Air springs are devices that use compressed air to support a load and reduce the impact of shocks and vibrations. They have a wide range of applications and advantages, which include:

Advantages

1. Preservation of fragile cargo: Air springs help preserve fragile cargo during transportation through low self-frequency. This reduces the impact of shocks and vibrations on the cargo, preventing damage or breakage.

2. Improved ride quality: Air springs offer a smoother ride compared to traditional steel springs. This is because the air spring's flexibility and ability to adjust to load shifts result in better damping of vibrations.

3. Adjustment of ride height: Air springs can adjust the ride height of a vehicle, making it easier to load and unload cargo.

4. Increased safety: Air springs improve vehicle stability, handling, and braking, resulting in increased safety and reduced wear on vehicle components.

5. Reduced maintenance: Air springs require less maintenance than traditional steel springs, as they are less prone to sagging and cracking, and do not require lubrication.

Applications

Automotive industry
Motorcycles and bicycles
Industrial machinery and equipment
Agricultural machinery

Construction sectors

Isolation mounts

Vibrating conveyors

Testing equipment

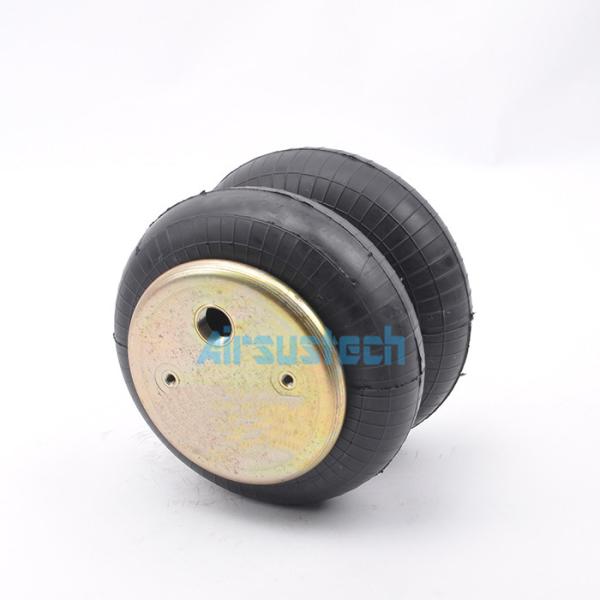

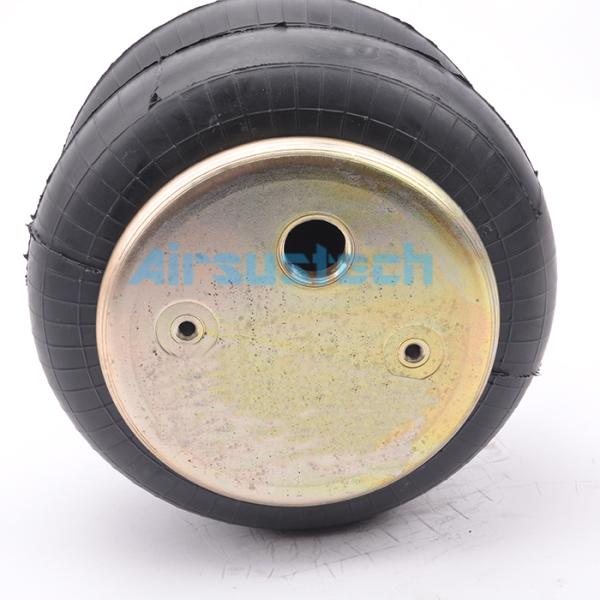

The indsutrial air springs picture
