Specifications
Model Number :
ZXY
Current Rating :
60A
MOQ :
Negotiable
Delivery Time :
3-4weeks
Shape :
Toroidal
Payment Terms :
L/C,D/A,D/P,T/T
Brand Name :
ZXY
Inductance :
1mH
Packaging Details :
Negotiable
Price :
Negotiable
Weight :
2.1kg
Certification :
RoHS、ISO9001、CE
Magnetic Rings :
2
Place of Origin :
Huizhou.China
Winding Turns :
1
Supply Ability :
Negotiable
Description

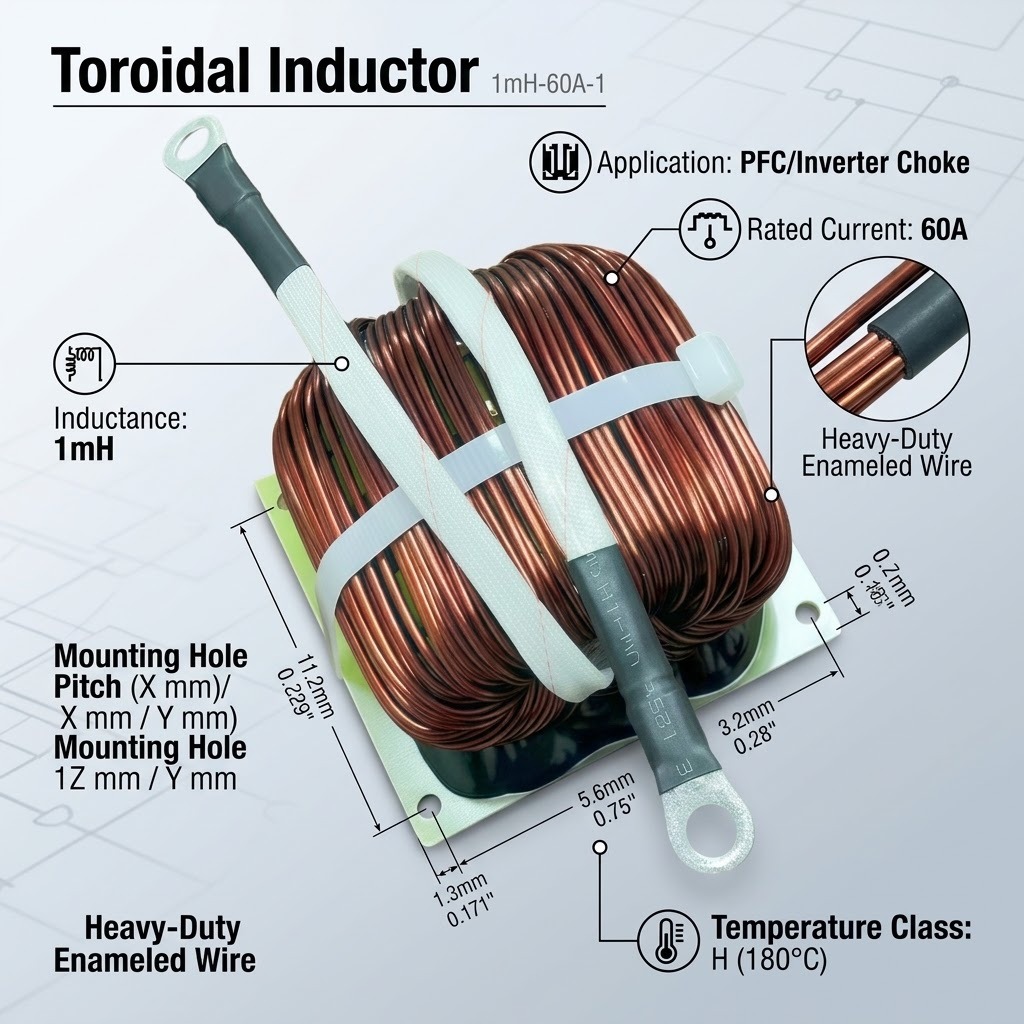

1mH 60A High Current Power Inductor Toroidal Inductor Coil with Double Magnetic Ring Single Winding
Product Overview

This 1mH 60A Customized Large Toroidal Inductor Coil is engineered for high-current applications, featuring a double magnetic ring structure that enhances efficiency and thermal stability. The single-winding (1-turn) design minimizes DC resistance (DCR) while supporting continuous 60A current and 1mH inductance.

  • High current and high load - Supports 60A continuous current, suitable for high-power conversion, inverters, and industrial drive systems
  • Double magnetic ring structure - Optimizes magnetic circuit distribution, reduces eddy current losses, improves efficiency and temperature rise performance
  • 1mH high inductance stable output - Maintains inductance consistency over a wide frequency range and suppresses current ripple
  • Single winding low resistance design - Reduces direct current resistance (DCR), lowers heat generation, and improves energy efficiency
  • Ring shaped magnetic core with low EMI - The enclosed magnetic circuit structure effectively suppresses electromagnetic interference

Ideal for power converters, inverters, EV charging systems, and industrial motor drives. The toroidal shape reduces EMI, and high-temperature-resistant construction ensures reliable performance in demanding environments. Customizable core materials (ferrite or powdered iron) allow optimization for low-loss or high-saturation applications.

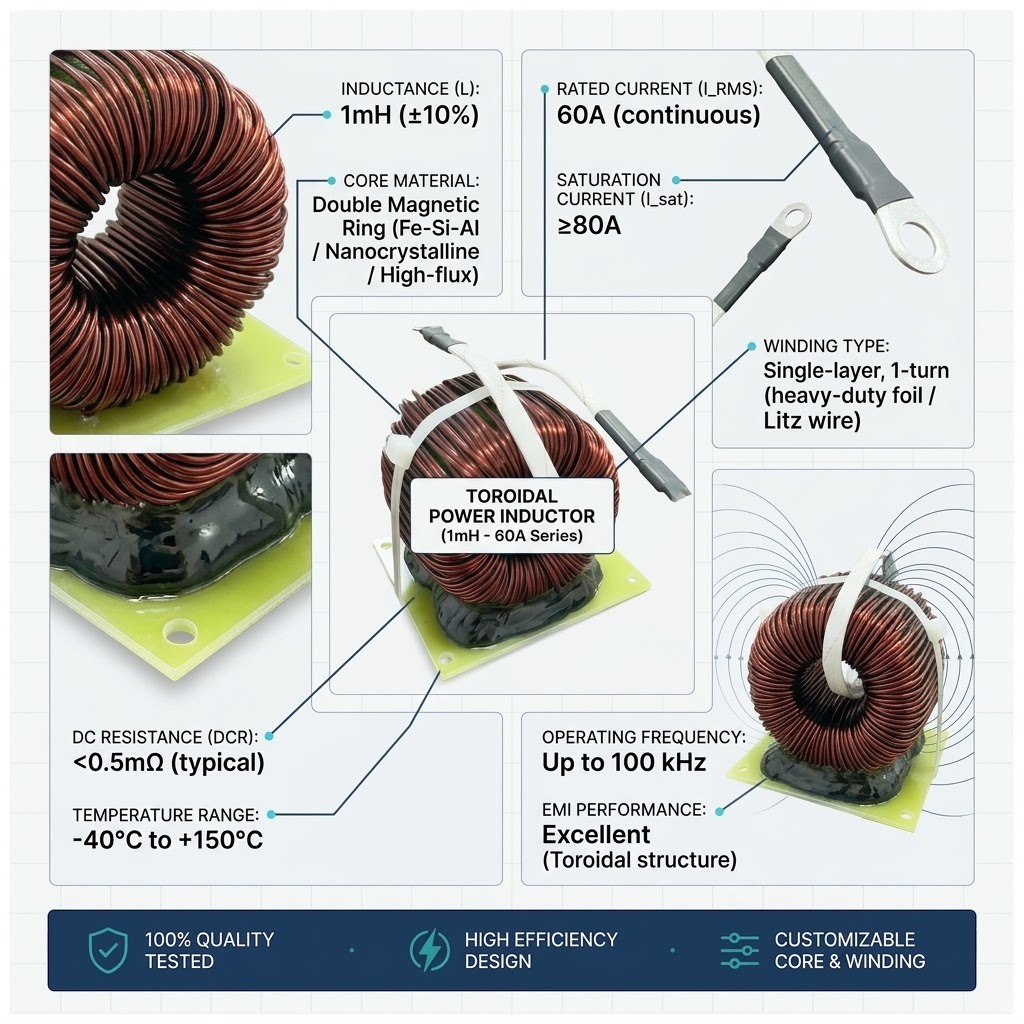

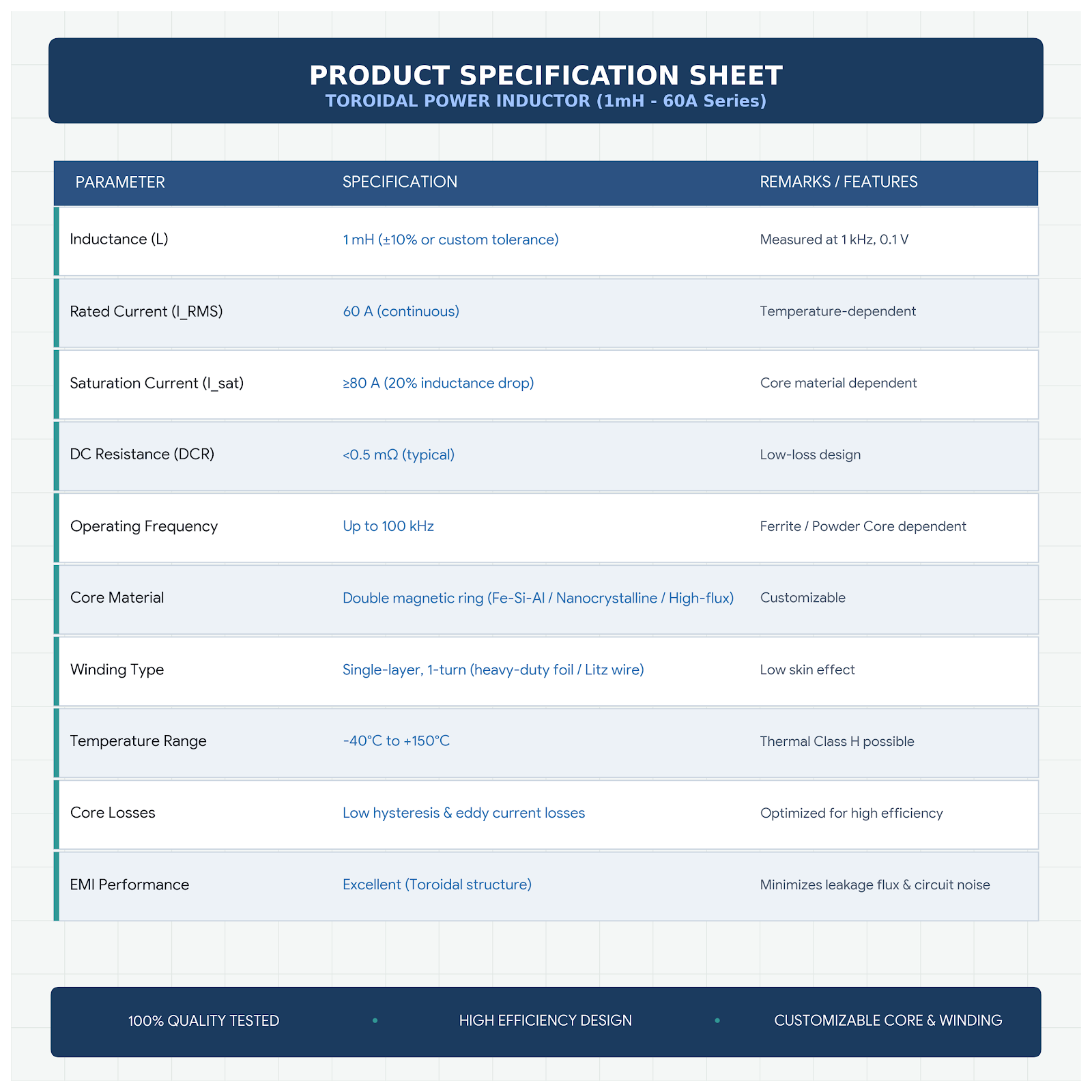

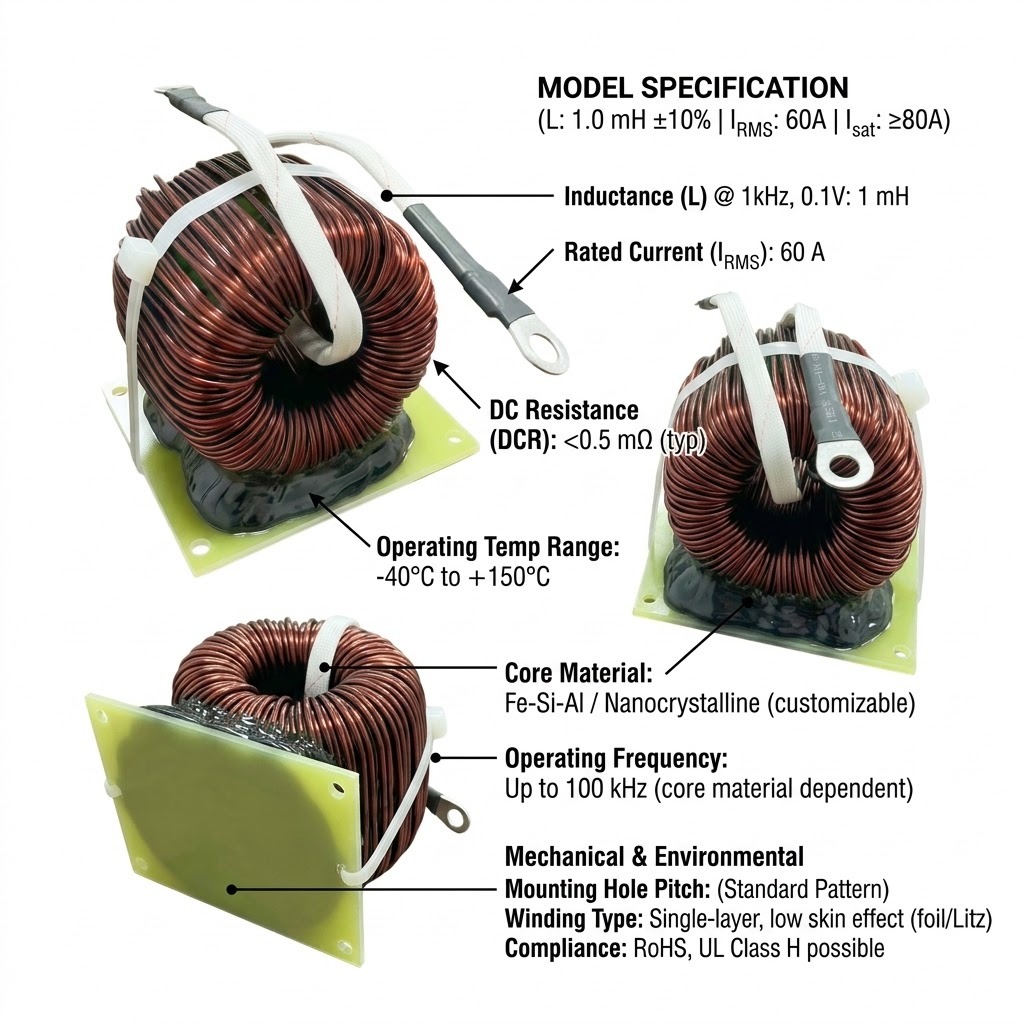

Performance Characteristics
1mH 60A High Current Toroidal Inductor Coil with Double Magnetic Ring for Power Applications
1mH 60A High Current Toroidal Inductor Coil with Double Magnetic Ring for Power Applications
1mH 60A High Current Toroidal Inductor Coil with Double Magnetic Ring for Power Applications
1mH 60A High Current Toroidal Inductor Coil with Double Magnetic Ring for Power Applications

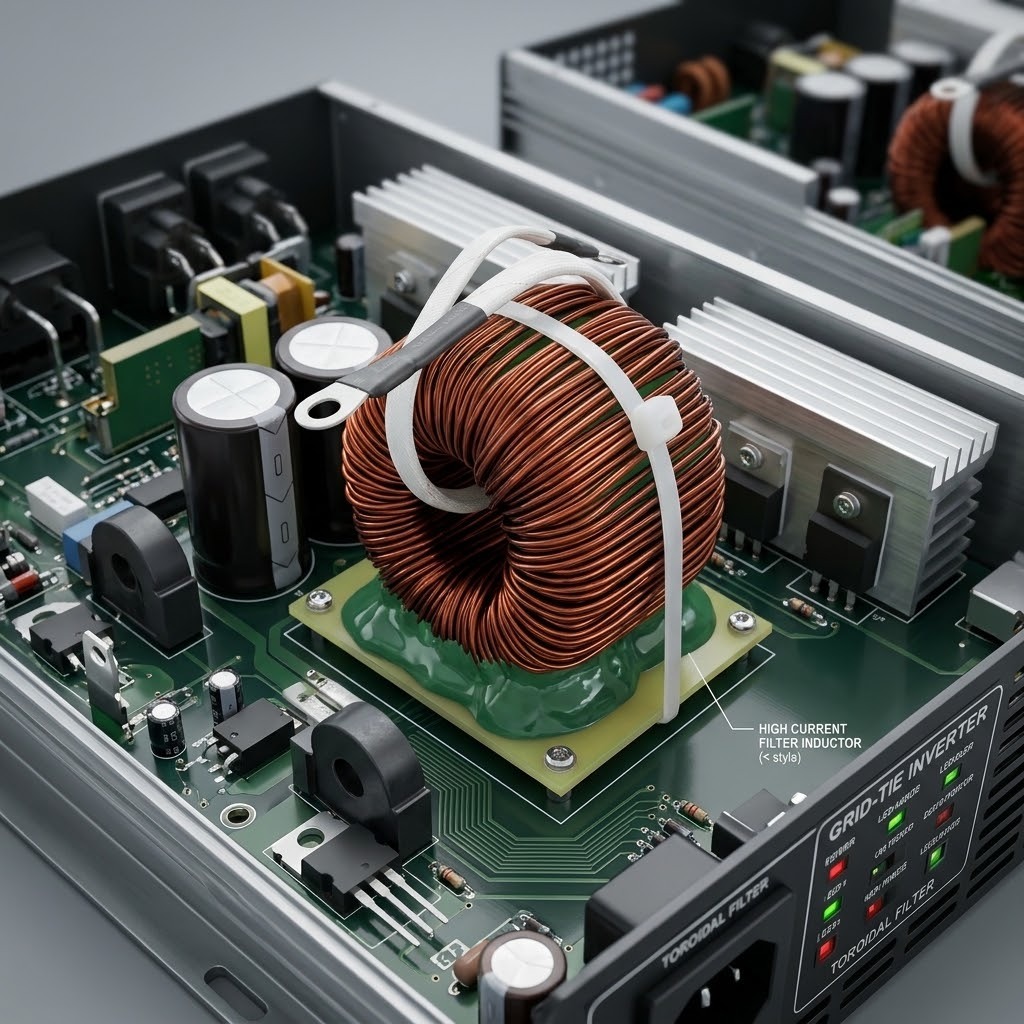

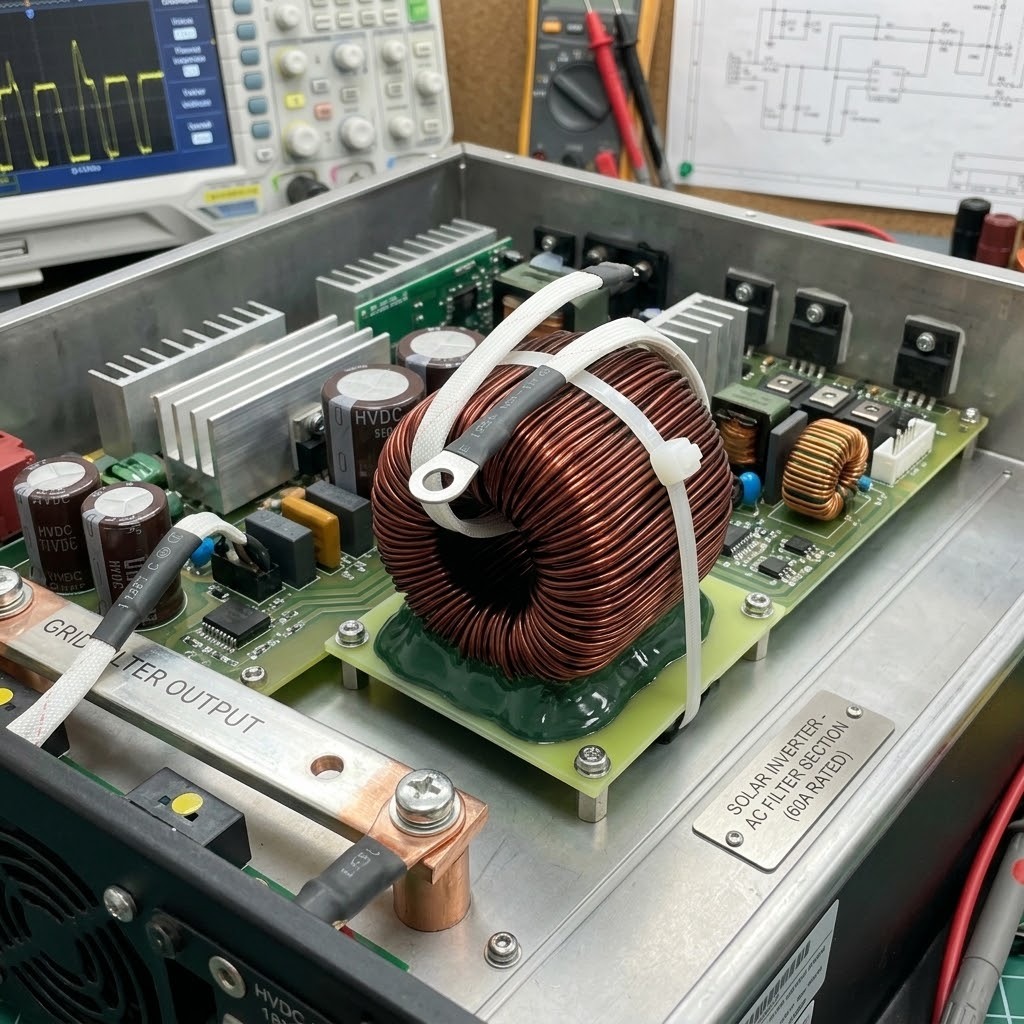

Application Scenarios
1mH 60A High Current Toroidal Inductor Coil with Double Magnetic Ring for Power Applications
1mH 60A High Current Toroidal Inductor Coil with Double Magnetic Ring for Power Applications

Suitable for demanding applications in new energy, electric vehicles, industrial power supplies, and other harsh environments. Supports customized magnetic core materials including iron silicon aluminum and nanocrystals.

Manufacturer Information

Shenzhen Zhixiangyuan Electronics Co., Ltd. brings 26 years of experience in magnetic components manufacturing, specializing in transformers, inductors, common mode chokes, and coils. As a direct factory, we provide OEM customization, free samples, and reliable production support with strict quality control and certifications including ISO9001, UL, CE, and RoHS.
