120A Toroidal Common Mode Choke with Vertical Mounting for EMI EMC Filtering
120A Toroidal Common Mode Choke with Vertical Mounting for EMI EMC Filtering
120A Toroidal Common Mode Choke with Vertical Mounting for EMI EMC Filtering
120A Toroidal Common Mode Choke with Vertical Mounting for EMI EMC Filtering
120A Toroidal Common Mode Choke with Vertical Mounting for EMI EMC Filtering
120A Toroidal Common Mode Choke with Vertical Mounting for EMI EMC Filtering
Specifications
Payment Terms :
L/C,D/A,D/P,T/T
Brand Name :
ZXY
Current Rating :
120A
Packaging Details :
carton
Model Number :
Three Phase Common Mode Choke
Structure :
Toroidal
MOQ :
Negotiable
Delivery Time :
3-4 Week days
Voltage Range :
110-240V
Price :
Negotiable
Supply Type :
Direct supply of factory
Supply Ability :
50000
Certification :
RoHS,ISO9001,CE
Application :
EMI EMC Filter
Place of Origin :
China Guangdong
IInstallation Type :
Vertical
Description

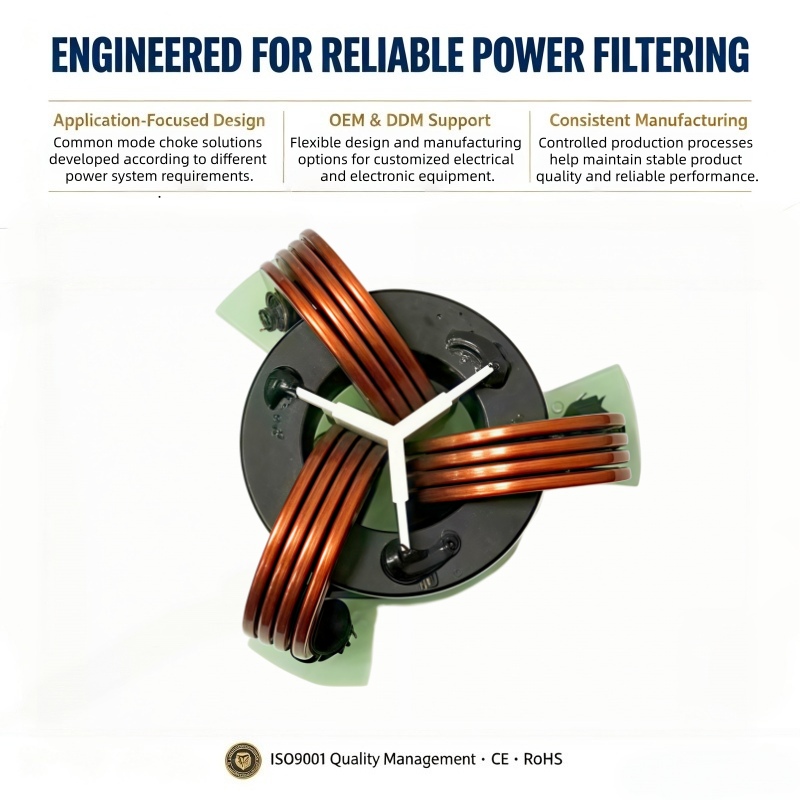

Three Phase Common Mode Choke 120A Toroidal Inductor EMI EMC Filter Vertical Common Mode Inductor
Product Overview

This 3-phase 120A toroidal common mode choke is a high-current vertical inductor engineered for EMI and EMC noise suppression in industrial power systems. Featuring a premium toroidal core and high-purity copper winding, it delivers stable inductance, minimal magnetic leakage, and exceptional high-frequency filtering performance. The vertical mounting design optimizes cabinet space utilization while ensuring secure installation.

The choke effectively suppresses common-mode electromagnetic noise, current ripple, and harmonic distortion, stabilizing power supply operation and protecting downstream electrical components. It enables equipment compliance with global EMC standards and is suitable for diverse industrial and commercial power applications.

Key Features
  • Rated 120A continuous current for stable heavy-load operation without overheating
  • Closed toroidal core design with minimal magnetic flux leakage and high filtering efficiency
  • Reliable EMI/EMC performance to block common-mode noise and power line surges
  • Vertical through-hole mounting for space-saving and easy assembly
  • Uniform copper winding with low internal resistance and minimal heat generation
  • Wide operating temperature range for reliable performance in harsh industrial environments
Technical Specifications
Parameter Specification
Product Type 3 Phase Toroidal Common Mode Choke
Rated Current 120A
Mounting Style Vertical Through-hole
Core Material High-performance Ferrite Core
Winding High-purity Copper Wire
Function EMI / EMC Common-mode Noise Suppression
Operating Temp -40℃ ~ +125℃
Application Three-phase AC Power System
Applications
  • Industrial inverters & motor drives
  • UPS, power inverters and industrial switching power supplies
  • New energy power generation & distribution equipment
  • Industrial automation control systems
  • High-power three-phase filter systems
120A Toroidal Common Mode Choke with Vertical Mounting for EMI EMC Filtering 120A Toroidal Common Mode Choke with Vertical Mounting for EMI EMC Filtering
