High Current High Power Air Core Inductor with Flat Copper Wire Coil and Customized Parameters
High Current High Power Air Core Inductor with Flat Copper Wire Coil and Customized Parameters
High Current High Power Air Core Inductor with Flat Copper Wire Coil and Customized Parameters
High Current High Power Air Core Inductor with Flat Copper Wire Coil and Customized Parameters
High Current High Power Air Core Inductor with Flat Copper Wire Coil and Customized Parameters
High Current High Power Air Core Inductor with Flat Copper Wire Coil and Customized Parameters
High Current High Power Air Core Inductor with Flat Copper Wire Coil and Customized Parameters
High Current High Power Air Core Inductor with Flat Copper Wire Coil and Customized Parameters
Specifications
Number of Coils :
Customized
Parameters :
Customized
Supplier type :
Original manufacturer
Inductance :
Customized
Application :
For Board and suppression components
Product name :
Flat copper wire air coil
Brand Name :
ZXY
Model Number :
Customized
Certification :
RoHS,ISO9001,CE
Place of Origin :
Shenzhen,China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T paypal xtransfer
Supply Ability :
2000K-pcs/month
Delivery Time :
Stock Or 3 weeks
Packaging Details :
100pieces / Carton size:380mm*325mm*345mm
Description

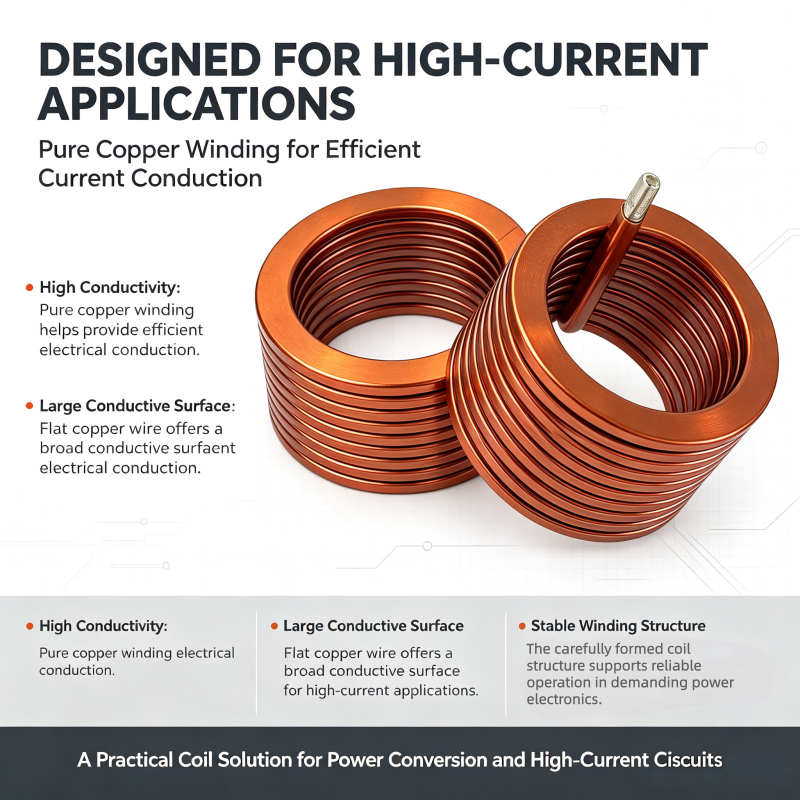

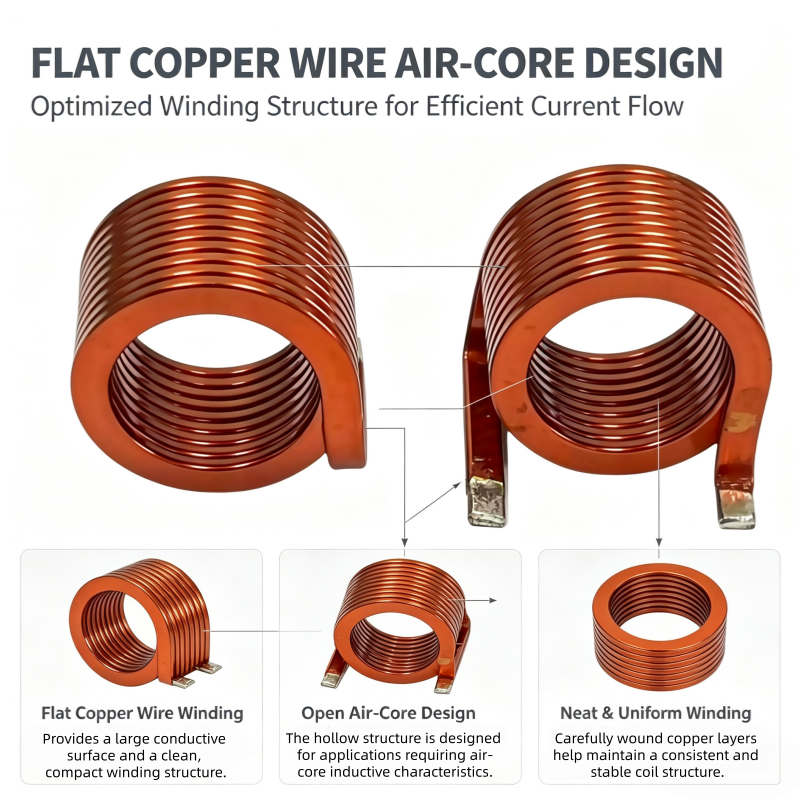

Flat Copper Wire Air Core Winding Coil Hollow High Power High Current Inductor
Product Overview

High Current Air Core Inductor adopts flat copper wire winding structure with coreless design to eliminate magnetic saturation risk. Specifically engineered for high current and high power applications, this power inductor delivers stable inductance and excellent linearity under heavy current conditions. Features include low DCR, outstanding heat dissipation, and low parasitic capacitance. Widely applied in energy storage inverters, high-frequency power supplies, power conversion systems and other high-power equipment. We support non-standard customization on inductance, dimensions and terminal structure. All products comply with RoHS requirements.

Product Name Flat copper wire air coil
Place of Origin Guangdong, China
Brand Name ZXY
Dimensions Customized
Usage Power electronics, daily living equipment
DC Resistance (mΩ) Customized
Parameters Customized
Exports Worldwide
OEM/ODM Acceptable
Functionality
  • Signal Filtering: Filters out high-frequency noise in circuits to improve signal quality
  • Energy Storage: Serves as energy storage element for power management circuits (e.g., DC-DC converters)
  • Resonant Circuit: Used in RF circuits as resonators and tuning circuits
  • Impedance Matching: Matches circuit impedance to optimize signal transmission efficiency
  • Anti-Electromagnetic Interference (EMI): Suppresses electromagnetic interference and improves system EMC
Key Characteristics
Characteristic Description
High-Frequency Performance Excellent performance in high-frequency and RF applications due to air core design
Low Loss Flat copper wire reduces skin effect, minimizing resistance losses at high frequencies
High Current Capacity Larger cross-sectional area of flat wire allows for higher current handling
Low DC Resistance (DCR) Low resistance of flat copper wire reduces energy loss and improves efficiency
No Magnetic Saturation Air core design eliminates magnetic saturation issues, suitable for high-current applications
Temperature Stability Stable performance across wide temperature range due to absence of magnetic core
Applications

Flat copper wire air coil is primarily used in induction acceptance, prefocus, magnetic card, magnetic head, high current line separation, low voltage electrical appliances, industrial control, household appliances, car electronics, SMT mounting, mobile phones, wireless transceiver, electronic navigation devices, power regulators, amplifiers, suppliers and filters.
